修改源码定制ART

ART定制方案比较

源码修改编译，定制rom
优点：开发简单，可以直接访问ART中的海量的丰富api
缺点：较笨重，首先需要一台性能足够强大的pc，其次，每次修改完代码都需要重新编译，刷机，测试。
基于frida，xposed等hook框架定制
优点：轻量，快捷，不需要性能强大的pc，也无需经历耗时的编译和刷机测试阶段，往往只需要重启app即可
缺点：往往无法直接复用ART源码中已有的api，只能后使用有限的api
将修改源码定制rom和frida等hook框架相结合，比如FART和frida相结合，脱壳功能更强大。
优点：结合了frida的轻量，快捷以及修改源码的简单。

工具使用：
1. 可以使用AndroidStudio导入aosp源码，对framework层相关的java类进行源码阅读和修改定制
2. 可以使用clion等ide利用aosp编译过程中生成的Cmakelists文件，导入ART部分的源码进行阅读和修改定制。

针对ART进行定制时，对于整个AOSP源码，Java层代码只关心Framework、libcore，因此没有必要全部作为源码导入
以下教程用的机型是pixel xl，源码是android 8.1

第一种：源码修改编译，定制rom

编译生成AndroidStudio项目配置文件并导入源码

编译生成idegen.jar在AOSP源码目录下输入以下命令，生成idegen.jar

1
2
3

source build/envsetup.sh
lunch aosp_marlin-userdebug
mmm development/tools/idegen/

生成android.ipr和android.iml
执行idegen.sh脚本，生成即可
1
development/tools/idegen/idegen.sh
运行完毕上面的命令之后，就在根目录生成了2个文件：android.ipr和android.iml

排除不必要的模块，提高加载速度
打开android.iml，找到excludeFolder属性，我们可以看到默认有一些模块是被排除了，不会被导入的。
但实际上，整个AOSP代码中，我们只关心framework模块和libcore模块，因此可以根据自己的需求去掉其它所有模块，只保留framework和libcore，比如将exclude修改为如下内容：

<excludeFolder url="file://$MODULE_DIR$/art" />
<excludeFolder url="file://$MODULE_DIR$/bionic" />
<excludeFolder url="file://$MODULE_DIR$/bootable" />
<excludeFolder url="file://$MODULE_DIR$/build" />
<excludeFolder url="file://$MODULE_DIR$/cts" />
<excludeFolder url="file://$MODULE_DIR$/dalvik" />
<excludeFolder url="file://$MODULE_DIR$/developers" />
<excludeFolder url="file://$MODULE_DIR$/development" />
<excludeFolder url="file://$MODULE_DIR$/device" />
<excludeFolder url="file://$MODULE_DIR$/docs" />
<excludeFolder url="file://$MODULE_DIR$/external" />
<excludeFolder url="file://$MODULE_DIR$/hardware" />
<excludeFolder url="file://$MODULE_DIR$/kernel" />
<excludeFolder url="file://$MODULE_DIR$/libcore" />
<excludeFolder url="file://$MODULE_DIR$/libnativehelper" />
<excludeFolder url="file://$MODULE_DIR$/out" />
<excludeFolder url="file://$MODULE_DIR$/pdk" />
<excludeFolder url="file://$MODULE_DIR$/platform_testing" />
<excludeFolder url="file://$MODULE_DIR$/prebuilts" />
<excludeFolder url="file://$MODULE_DIR$/sdk" />
<excludeFolder url="file://$MODULE_DIR$/system" />
<excludeFolder url="file://$MODULE_DIR$/test" />
<excludeFolder url="file://$MODULE_DIR$/toolchain" />
<excludeFolder url="file://$MODULE_DIR$/tools" />
<excludeFolder url="file://$MODULE_DIR$/.repo" />

这样修改之后，打开速度会快很多。接下来使用AndroidStudio直接打开android.ipr文件。 > File-Open…，找到android.ipr即可。
导入完成之后，就能看到整个AOSP源码了：橘红色的是在上一步exclude排除掉的模块。
剩余配置参考以下文章：
https://juejin.cn/post/6969508324618272782
https://blog.csdn.net/yanbober/article/details/48846331

Clion导入ART

编译生成cmakelists文件
打开以下两个开关，CMakeLists.txt就会根据编译环境自动生成
1
2
3
4
source build/envsetup.sh
lunch aosp_marlin-userdebug
export SOONG_GEN_CMAKEFILES=1
export SOONG_GEN_CMAKEFILES_DEBUG=1
下面开始编译
1
make -j8
生成的相关项目的cmakelists文件存放在out目录，不如我们需要导入ART的源码部分对应的路径为：out/development/ide/clion/art，可以看到下面还有很多模块，我们选择使用arm32或者arm64的runtime模块即可，对应的cmakelists文件在
out/development/ide/clion/art/runtime/libart-arm-android/CMakeLists.txt
以及
out/development/ide/clion/art/runtime/libart-arm64-android/CMakeLists.txt
然后修改根目录为源码的根目录 Tools > CMake > Change Project Root:

APP运行过程中so加载流程源码分析

接下来对so的加载流程进行分析，加载so有两种方式
System.loadLibrary(“so文件名”);
System.load(“so文件相对路径”);
loadLibrary通过loader.findLibrary(libraryName)函数找到库文件的绝对路径，后续跟load一样调用doLoad(String name, ClassLoader loader)，最后去调用art下的nativeLoad native函数
/libcore/ojluni/src/main/java/java/lang/Runtime.java

private String doLoad(String name, ClassLoader loader) {
    String librarySearchPath = null;
    if (loader != null && loader instanceof BaseDexClassLoader) {
        BaseDexClassLoader dexClassLoader = (BaseDexClassLoader) loader;
        librarySearchPath = dexClassLoader.getLdLibraryPath();
    }
    java.lang.System.logE("Runtime doLoad -> " + name + ", classLoader -> " + loader.toString());
    synchronized (this) {
        return nativeLoad(name, loader, librarySearchPath);
    }
}

也就是说doLoad和nativeLoad是所有加载so文件都会调用的函数，那可以在这个函数下添加log信息，这样就可以在Java下监控所有的so

1	java.lang.System.logE("Runtime doLoad -> " + name + ", classLoader -> " + loader.toString());

通过查找源码知道nativeLoad是在xref: /libcore/ojluni/src/main/native/Runtime.c下

JNIEXPORT jstring JNICALL
Runtime_nativeLoad(JNIEnv* env, jclass ignored, jstring javaFilename,
                   jobject javaLoader, jstring javaLibrarySearchPath)
{
    return JVM_NativeLoad(env, javaFilename, javaLoader, javaLibrarySearchPath);
}

然后通过调用链找到 nativeLoad ->Runtime_nativeLoad(Runtime.c) -> JVM_NativeLoad(Openjdk_Jvm.cc) -> LoadNativeLibrary(java_vm_ext.cc)
最后是LoadNativeLibrary函数，查看函数流程，
在函数刚进来的时候添加日志

1	LOG(ERROR) << "[java_vm_ext.cc]JavaVMExt::LoadNativeLibrary -> " << path.c_str();

在加载本地库的前后添加日志

//add
LOG(ERROR) << "[java_vm_ext.cc]before call LoadNativeLibrary -> " << path_str;
void* handle = android::OpenNativeLibrary(env,
                                        runtime_->GetTargetSdkVersion(),
                                        path_str,
                                        class_loader,
                                        library_path,
                                        &needs_native_bridge,
                                        error_msg);
//add
LOG(ERROR) << "[java_vm_ext.cc]after call LoadNativeLibrary -> " << path_str;

接下来判断是否有JNI_OnLoad，没有则结束函数，有就加载JNI_OnLoad，在加载JNI_OnLoad前后添加日志

bool was_successful = false;
void* sym = library->FindSymbol("JNI_OnLoad", nullptr);
if (sym == nullptr) {
    VLOG(jni) << "[No JNI_OnLoad found in \"" << path << "\"]";
    was_successful = true;
} else {
    // Call JNI_OnLoad.  We have to override the current class
    // loader, which will always be "null" since the stuff at the
    // top of the stack is around Runtime.loadLibrary().  (See
    // the comments in the JNI FindClass function.)
    ScopedLocalRef<jobject> old_class_loader(env, env->NewLocalRef(self->GetClassLoaderOverride()));
    self->SetClassLoaderOverride(class_loader);

    VLOG(jni) << "[Calling JNI_OnLoad in \"" << path << "\"]";
    typedef int (*JNI_OnLoadFn)(JavaVM*, void*);
    JNI_OnLoadFn jni_on_load = reinterpret_cast<JNI_OnLoadFn>(sym);
    //add
    LOG(ERROR) << "[java_vm_ext.cc]before call " << path_str << ".JNI_Onload";
    int version = (*jni_on_load)(this, nullptr);
    //add
    LOG(ERROR) << "[java_vm_ext.cc]after call " << path_str << ".JNI_Onload" << ", returm: " << version;

    if (runtime_->GetTargetSdkVersion() != 0 && runtime_->GetTargetSdkVersion() <= 21) {
        // Make sure that sigchain owns SIGSEGV.
        EnsureFrontOfChain(SIGSEGV);
    }

    self->SetClassLoaderOverride(old_class_loader.get());

    if (version == JNI_ERR) {
        StringAppendF(error_msg, "JNI_ERR returned from JNI_OnLoad in \"%s\"", path.c_str());
    } else if (JavaVMExt::IsBadJniVersion(version)) {
        StringAppendF(error_msg, "Bad JNI version returned from JNI_OnLoad in \"%s\": %d",
                      path.c_str(), version);
        // It's unwise to call dlclose() here, but we can mark it
        // as bad and ensure that future load attempts will fail.
        // We don't know how far JNI_OnLoad got, so there could
        // be some partially-initialized stuff accessible through
        // newly-registered native method calls.  We could try to
        // unregister them, but that doesn't seem worthwhile.
    } else {
        was_successful = true;
    }
    VLOG(jni) << "[Returned " << (was_successful ? "successfully" : "failure")
    << " from JNI_OnLoad in \"" << path << "\"]";
}

到这里也能看出来so中的JNI_Onload的函数名必须要c的形式进行编译，还要导出的原因就是这里它需要去查找符号名
重新编译，刷入手机

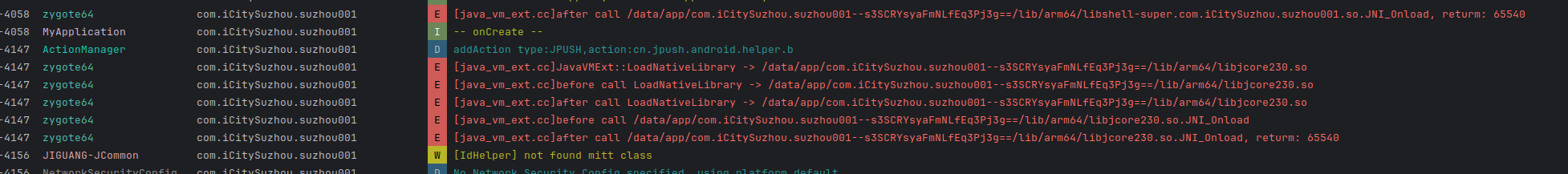

运行有加壳的app，查看log

第二种：基于frida，xposed等hook框架定制

要实现对加载so监控的话，可以结合流程当中的api进行hook来监控so的加载流程，在hook中选择的api层级越底层越好，如果只通过System.load, loadLibrary进行监控的话，可能会遗漏掉通过runtime进行加载的so。
上面分析到加载so底层的api是libnativeloader.so下的OpenNativeLibrary和libart.so下的LoadNativeLibrary
可以使用frida进行hook，在hook前可以先把libnativeloader.so和libart.so脱出来用ida查看导出表OpenNativeLibrary和LoadNativeLibrary的导出符号
/system/lib/libart.so或者/system/lib64/libart.so
/system/lib/libnativeloader.so或者/system/lib64/libnativeloader.so
OpenNativeLibrary的导出符号：_ZN7android17OpenNativeLibraryEP7_JNIEnviPKcP8_jobjectP8_jstringPbPNSt3__112basic_stringIcNS9_11char_traitsIcEENS9_9allocatorIcEEEE

使用frida进行hook

下面就监控OpenNativeLibrary

// libart.so
// bool JavaVMExt::LoadNativeLibrary(JNIEnv* env,
//     const std::string& path,
//     jobject class_loader,
//     jstring library_path,
//     std::string* error_msg)


// libnativeloader.so
// void* handle = android::OpenNativeLibrary(env,
//     runtime_->GetTargetSdkVersion(),
//     path_str,
//     class_loader,
//     library_path,
//     &needs_native_bridge,
//     error_msg);

function tracesoload(){
    console.log(Process.arch);
    var libnativeloaderModule = Process.getModuleByName("libnativeloader.so");
    // OpenNativeLibrary
    var OpenNativeLibraryAddr = libnativeloaderModule.getExportByName("_ZN7android17OpenNativeLibraryEP7_JNIEnviPKcP8_jobjectP8_jstringPbPNSt3__112basic_stringIcNS9_11char_traitsIcEENS9_9allocatorIcEEEE");
    Interceptor.attach(OpenNativeLibraryAddr, {
        onEnter: function(args){
            this.sopath = ptr(args[2]).readUtf8String();
            console.log("go into OpenNativeLibrary -> " + this.sopath);
        }, onLeave: function(retval) {
            console.log("leave OpenNativeLibrary -> " + this.sopath, ", return: " + retval);
        }
    })
}

function main(){
    tracesoload();
}
setImmediate(main);

输出打印

[AOSP on msm8996::com.iCitySuzhou.suzhou001]-> arm64
go into OpenNativeLibrary -> /data/app/com.iCitySuzhou.suzhou001--s3SCRYsyaFmNLfEq3Pj3g==/lib/arm64/libshell-super.com.iCitySuzhou.suzhou001.so
leave OpenNativeLibrary -> /data/app/com.iCitySuzhou.suzhou001--s3SCRYsyaFmNLfEq3Pj3g==/lib/arm64/libshell-super.com.iCitySuzhou.suzhou001.so
go into OpenNativeLibrary -> /data/app/com.iCitySuzhou.suzhou001--s3SCRYsyaFmNLfEq3Pj3g==/lib/arm64/libjcore230.so
leave OpenNativeLibrary -> /data/app/com.iCitySuzhou.suzhou001--s3SCRYsyaFmNLfEq3Pj3g==/lib/arm64/libjcore230.so
go into OpenNativeLibrary -> /system/app/webview/webview.apk!/lib/arm64-v8a/libwebviewchromium.so
leave OpenNativeLibrary -> /system/app/webview/webview.apk!/lib/arm64-v8a/libwebviewchromium.so
go into OpenNativeLibrary -> /system/lib64/libwebviewchromium_plat_support.so
leave OpenNativeLibrary -> /system/lib64/libwebviewchromium_plat_support.so

加载so后还会对这个so进行查找是否含有 JNI_OnLoad
void* sym = library->FindSymbol(“JNI_OnLoad”, nullptr);

void* FindSymbol(const std::string& symbol_name, const char* shorty = nullptr)
    REQUIRES(!Locks::mutator_lock_) {
    return NeedsNativeBridge()
        ? FindSymbolWithNativeBridge(symbol_name.c_str(), shorty)
        : FindSymbolWithoutNativeBridge(symbol_name.c_str());
}
// NeedsNativeBridge()判断如果设备的架构与应用的架构不同返回true，所以这里是走FindSymbolWithoutNativeBridge()

void* FindSymbolWithoutNativeBridge(const std::string& symbol_name)
    REQUIRES(!Locks::mutator_lock_) {
    CHECK(!NeedsNativeBridge());
    return dlsym(handle_, symbol_name.c_str());
}

1	void* dlsym(void* handle, const char* _Nonnull symbol);

这里对dlsym进行监控的话，就可以监视接下来对 JNI_OnLoad 的查询的过程
dlsym位于libc.so，也使用freida进行hook

function tracesoload(){
    console.log(Process.arch);
    var libnativeloaderModule = Process.getModuleByName("libnativeloader.so");
    // OpenNativeLibrary
    var OpenNativeLibraryAddr = libnativeloaderModule.getExportByName("_ZN7android17OpenNativeLibraryEP7_JNIEnviPKcP8_jobjectP8_jstringPbPNSt3__112basic_stringIcNS9_11char_traitsIcEENS9_9allocatorIcEEEE");
    Interceptor.attach(OpenNativeLibraryAddr, {
        onEnter: function(args){
            this.sopath = ptr(args[2]).readUtf8String();
            console.log("go into OpenNativeLibrary -> " + this.sopath);
        }, onLeave: function(retval) {
            console.log("leave OpenNativeLibrary -> " + this.sopath, ", return: " + retval);
        }
    })
    var dlsymAddr = Module.findExportByName("libc.so", "dlsym");
    Interceptor.attach(dlsymAddr, {
        onEnter: function(args){
            this.handle = args[0];
            this.symbol = ptr(args[1]).readUtf8String();
        }, onLeave: function(retval){
            console.log("leave dlsym: handle: " + this.handle + ", symbol: " + this.symbol, ", return: " + retval);
        }
    })
}
function main(){
    tracesoload();
}
setImmediate(main);

已经看到查找JNI_OnLoad的流程

leave OpenNativeLibrary -> /data/app/com.iCitySuzhou.suzhou001--s3SCRYsyaFmNLfEq3Pj3g==/lib/arm64/libshell-super.com.iCitySuzhou.suzhou001.so , return: 0x49668d9309b699ed
leave dlsym: handle: 0x49668d9309b699ed, symbol: JNI_OnLoad , return: 0x730a123a5c
leave dlsym: handle: 0xde2d62226fd8b40d, symbol: InitEsxProfile , return: 0x7314e10620
go into OpenNativeLibrary -> /data/app/com.iCitySuzhou.suzhou001--s3SCRYsyaFmNLfEq3Pj3g==/lib/arm64/libjcore230.so
leave OpenNativeLibrary -> /data/app/com.iCitySuzhou.suzhou001--s3SCRYsyaFmNLfEq3Pj3g==/lib/arm64/libjcore230.so , return: 0x513c62ce705a71c5
leave dlsym: handle: 0x513c62ce705a71c5, symbol: JNI_OnLoad , return: 0x7308e5c5bc
leave OpenNativeLibrary -> /system/lib64/libwebviewchromium_plat_support.so , return: 0xef0d55dae65a7f63
leave dlsym: handle: 0xef0d55dae65a7f63, symbol: JNI_OnLoad , return: 0x731ca1e740
leave dlsym: handle: 0xe5b5bf72a8b510e7, symbol: Java_org_chromium_base_library_1loader_LibraryLoader_nativeLibraryLoaded , return: 0x730ce0dc34
leave dlsym: handle: 0xe5b5bf72a8b510e7, symbol: Java_org_chromium_base_library_1loader_LibraryLoader_nativeGetVersionNumber , return: 0x730ce0dee0
leave dlsym: handle: 0xe5b5bf72a8b510e7, symbol: Java_org_chromium_base_TraceEvent_nativeRegisterEnabledObserver , return: 0x730ce10300
leave dlsym: handle: 0xe5b5bf72a8b510e7, symbol: Java_org_chromium_base_PathService_nativeOverride , return: 0x730ce0ed00
leave dlsym: handle: 0xe5b5bf72a8b510e7, symbol: Java_org_chromium_android_1webview_AwContentsStatics_nativeGetProductVersion , return: 0x730cdca980
leave dlsym: handle: 0xe5b5bf72a8b510e7, symbol: Java_org_chromium_android_1webview_AwGLFunctor_nativeGetAwDrawGLFunction , return: 0x730cdcc4e4
leave dlsym: handle: 0xe5b5bf72a8b510e7, symbol: Java_org_chromium_android_1webview_AwContents_nativeSetAwDrawSWFunctionTable , return: 0x730cdbfcc4
leave dlsym: handle: 0xe5b5bf72a8b510e7, symbol: Java_org_chromium_android_1webview_AwContents_nativeSetAwDrawGLFunctionTable , return: 0x730cdb714c
leave dlsym: handle: 0xe5b5bf72a8b510e7, symbol: Java_org_chromium_android_1webview_AwContentsStatics_nativeSetCheckClearTextPermitted , return: 0x730cdcaad4
leave dlsym: handle: 0xe5b5bf72a8b510e7, symbol: Java_org_chromium_base_CommandLine_nativeHasSwitch , return: 0x730ce08b70
leave dlsym: handle: 0xe5b5bf72a8b510e7, symbol: Java_org_chromium_android_1webview_AwContentsStatics_nativeSetSafeBrowsingEnabledByManifest , return: 0x730cdcaa24
leave dlsym: handle: 0xe5b5bf72a8b510e7, symbol: Java_org_chromium_base_CommandLine_nativeAppendSwitch , return: 0x730ce08cd8
......

第三种：定制rom和frida等hook框架相结合

在art中一些关键地方可以预留api给frida hook, 以下面跟踪jni函数绑定为例。

ART定制跟中jni函数绑定

在上面的日志看到很多symbol的值类似静态注册的JNI函数
jni函数的绑定：每一个java层函数在native层都对应一个ArtMethod对象，jni函数在执行前必须完成对jni函数所在类的加载和初始化、以及该jni函数的ArtMethod对象当中属性和so中具体函数地址的绑定

静态注册的jni函数
动态注册的jni函数

静态注册的jni函数

通过源码追踪jni注册流程，首先当一个类中的 JNI 函数被调用的时候，ART 会首先确保该类已经被加载和初始化。这一过程通常通过 class_linker.cc 文件中的 ClassLinker::LoadClass 方法完成。在加载过程中，类的属性和成员函数也会被加载和初始化，这一步由 LoadClassMembers 方法处理。

// 加载类
void ClassLinker::LoadClass(Thread* self,
                            const DexFile& dex_file,
                            const DexFile::ClassDef& dex_class_def,
                            Handle<mirror::Class> klass) {
  const uint8_t* class_data = dex_file.GetClassData(dex_class_def);
  if (class_data == nullptr) {
    return;  // no fields or methods - for example a marker interface
  }
  LoadClassMembers(self, dex_file, class_data, klass);
}
// 加载类成员和函数
void ClassLinker::LoadClassMembers(Thread* self,
                                   const DexFile& dex_file,
                                   const uint8_t* class_data,
                                   Handle<mirror::Class> klass) {
  {
    // .....部分代码省略.....
    // TODO These should really use the iterators.
    for (size_t i = 0; it.HasNextDirectMethod(); i++, it.Next()) {
      ArtMethod* method = klass->GetDirectMethodUnchecked(i, image_pointer_size_);
      // 加载函数
      LoadMethod(dex_file, it, klass, method);
      // 将方法与其实现的代码进行链接
      LinkCode(this, method, oat_class_ptr, class_def_method_index);
      uint32_t it_method_index = it.GetMemberIndex();
      if (last_dex_method_index == it_method_index) {
        // duplicate case
        method->SetMethodIndex(last_class_def_method_index);
      } else {
        method->SetMethodIndex(class_def_method_index);
        last_dex_method_index = it_method_index;
        last_class_def_method_index = class_def_method_index;
      }
      class_def_method_index++;
    }
    // .........
  }
}

// 方法与其实际实现的代码进行链接
static void LinkCode(ClassLinker* class_linker,
                     ArtMethod* method,
                     const OatFile::OatClass* oat_class,
                     uint32_t class_def_method_index) REQUIRES_SHARED(Locks::mutator_lock_) {
  ......
  // 检查一个方法是否具有 native 属性，返回true则该方法是一个JNI函数
  if (method->IsNative()) {
    // Unregistering restores the dlsym lookup stub.
    // 解除方法的本地链接, 该方法在调用时不再直接执行本地代码，而是通过解释器来处理
    method->UnregisterNative();

    if (enter_interpreter || quick_code == nullptr) {
      // We have a native method here without code. Then it should have either the generic JNI
      // trampoline as entrypoint (non-static), or the resolution trampoline (static).
      // TODO: this doesn't handle all the cases where trampolines may be installed.
      const void* entry_point = method->GetEntryPointFromQuickCompiledCode();
      DCHECK(class_linker->IsQuickGenericJniStub(entry_point) ||
             class_linker->IsQuickResolutionStub(entry_point));
    }
  }
}
// 解除方法的本地链接
void ArtMethod::UnregisterNative() {
  CHECK(IsNative() && !IsFastNative()) << PrettyMethod();
  // restore stub to lookup native pointer via dlsym
  SetEntryPointFromJni(GetJniDlsymLookupStub());
}
// 用于设置 JNI 方法的入口点
void SetEntryPointFromJni(const void* entrypoint) {
    DCHECK(IsNative());
    SetEntryPointFromJniPtrSize(entrypoint, kRuntimePointerSize);
}
// 在需要 JNI 方法解析时，可以方便地获取特定的查找函数指针
static inline const void* GetJniDlsymLookupStub() {
  return reinterpret_cast<const void*>(art_jni_dlsym_lookup_stub);
}

不管是静态注册还是动态注册的jni函数，当函数所在的类被加载进到 LinkCode 的时候，会进行函数第一次的地址绑定，当这个函数是静态注册的话，在第一次的时候会去调用dlsym查找符号进行绑定，当第二次调用的时候，由于入口的已经被绑定到真正的地址，就不在执行查找的过程，直接发起调用。
实际上 art_jni_dlsym_lookup_stub 是汇编代码，通过源码查找 art_jni_dlsym_lookup_stub
xref: /art/runtime/arch/arm/jni_entrypoints_arm.S

#include "asm_support_arm.S"
    .extern artFindNativeMethod
ENTRY art_jni_dlsym_lookup_stub
    push   {r0, r1, r2, r3, lr}           @ spill regs
    .cfi_adjust_cfa_offset 20
    .cfi_rel_offset r0, 0
    .cfi_rel_offset r1, 4
    .cfi_rel_offset r2, 8
    .cfi_rel_offset r3, 12
    .cfi_rel_offset lr, 16
    sub    sp, #12                        @ pad stack pointer to align frame
    .cfi_adjust_cfa_offset 12
    blx    artFindNativeMethod
    mov    r12, r0                        @ save result in r12
    add    sp, #12                        @ restore stack pointer
    .cfi_adjust_cfa_offset -12
    cbz    r0, 1f                         @ is method code null?
    pop    {r0, r1, r2, r3, lr}           @ restore regs
    .cfi_adjust_cfa_offset -20
    .cfi_restore r0
    .cfi_restore r1
    .cfi_restore r2
    .cfi_restore r3
    .cfi_restore lr
    bx     r12                            @ if non-null, tail call to method's code

无论静态注册还是动态注册，当类加载完就被绑定到art_jni_dlsym_lookup_stub这个桥函数中，会执行这段汇编调用artFindNativeMethod去so查符号地址

// Used by the JNI dlsym stub to find the native method to invoke if none is registered.
#if defined(__arm__) || defined(__aarch64__)
extern "C" const void* artFindNativeMethod() {
  Thread* self = Thread::Current();
#else
extern "C" const void* artFindNativeMethod(Thread* self) {
  DCHECK_EQ(self, Thread::Current());
#endif
  Locks::mutator_lock_->AssertNotHeld(self);  // We come here as Native.
  ScopedObjectAccess soa(self);

  ArtMethod* method = self->GetCurrentMethod(nullptr);
  DCHECK(method != nullptr);

  // Lookup symbol address for method, on failure we'll return null with an exception set,
  // otherwise we return the address of the method we found.
  // FindCodeForNativeMethod 查找函数地址
  void* native_code = soa.Vm()->FindCodeForNativeMethod(method);
  if (native_code == nullptr) {
    self->AssertPendingException();
    return nullptr;
  }
  // Register so that future calls don't come here
  return method->RegisterNative(native_code, false);
}

void* JavaVMExt::FindCodeForNativeMethod(ArtMethod* m) {
   ......
  Thread* const self = Thread::Current();
  void* native_method = libraries_->FindNativeMethod(self, m, detail);
   ......
  return native_method;
}

void* FindNativeMethodInternal(Thread* self,
                                 void* declaring_class_loader_allocator,
                                 const char* shorty,
                                 const std::string& jni_short_name,
                                 const std::string& jni_long_name)
      REQUIRES(!Locks::jni_libraries_lock_)
      REQUIRES(!Locks::mutator_lock_) {
    MutexLock mu(self, *Locks::jni_libraries_lock_);
    // 遍历加载的so去查找函数
    for (const auto& lib : libraries_) {
      SharedLibrary* const library = lib.second;
      // Use the allocator address for class loader equality to avoid unnecessary weak root decode.
      if (library->GetClassLoaderAllocator() != declaring_class_loader_allocator) {
        // We only search libraries loaded by the appropriate ClassLoader.
        continue;
      }
      // Try the short name then the long name...
      const char* arg_shorty = library->NeedsNativeBridge() ? shorty : nullptr;
      void* fn = library->FindSymbol(jni_short_name, arg_shorty);
      if (fn == nullptr) {
        fn = library->FindSymbol(jni_long_name, arg_shorty);
      }
      if (fn != nullptr) {
        VLOG(jni) << "[Found native code for " << jni_long_name
                  << " in \"" << library->GetPath() << "\"]";
        return fn;
      }
    }
    return nullptr;
}

  void* FindSymbol(const std::string& symbol_name, const char* shorty = nullptr)
      REQUIRES(!Locks::mutator_lock_) {
    return NeedsNativeBridge()
        ? FindSymbolWithNativeBridge(symbol_name.c_str(), shorty)
        : FindSymbolWithoutNativeBridge(symbol_name.c_str());
  }
  void* FindSymbolWithoutNativeBridge(const std::string& symbol_name)
      REQUIRES(!Locks::mutator_lock_) {
    CHECK(!NeedsNativeBridge());
    return dlsym(handle_, symbol_name.c_str());
  }

jni_short_name：是本地方法的短名，它的格式通常是 Java_<类的完全限定名><方法名>，其中类名和方法名中的每个字符（除了字母和数字）都被替换为。例如： Java_com_example_MyClass_myMethod
jni_long_name：是本地方法的长名，它的格式通常是 Java<类的完全限定名><方法名>__<参数签名>，其中参数签名部分用 _ 分隔每个参数类型的描述符。例如： Java_com_example_MyClass_myMethod__ILjava_lang_String_2

通过FindCodeForNativeMethod找到的函数地址后，会调用 RegisterNative 才把它的地址绑定到artmethod里面，method->RegisterNative(native_code, false);
回到上面的汇编代码

1
2
3

blx    artFindNativeMethod
mov    r12, r0
bx     r12

经过artFindNativeMethod查到绑定后的artmethod地址返回
接下来就可以对上面的一些流程添加log打印，在artFindNativeMethod下可以监控静态注册jni函数绑定的流程

#if defined(__arm__) || defined(__aarch64__)
extern "C" const void* artFindNativeMethod() {
  Thread* self = Thread::Current();
#else
extern "C" const void* artFindNativeMethod(Thread* self) {
  DCHECK_EQ(self, Thread::Current());
#endif
  Locks::mutator_lock_->AssertNotHeld(self);  // We come here as Native.
  ScopedObjectAccess soa(self);

  ArtMethod* method = self->GetCurrentMethod(nullptr);
  DCHECK(method != nullptr);

  // Lookup symbol address for method, on failure we'll return null with an exception set,
  // otherwise we return the address of the method we found.
  void* native_code = soa.Vm()->FindCodeForNativeMethod(method);
  if (native_code == nullptr) {
    self->AssertPendingException();
    return nullptr;
  } else {
    //add
    std::stringstream oss;
    oss << "[artFindNativeMethod]StaticRegisterJniMethod->" << method->PrettyMethod() << ", add: " << native_code;
    const char *content = oss.str().c_str();
    if (strstr(content, "zsklog") != nullptr) {
      LOG(ERROR) << content;
    }
    //add
  }
  // Register so that future calls don't come here
  return method->RegisterNative(native_code, false);
}

上面添加了标识 strstr(content, “zsklog”) 用来让frida可以控制日志打印开关

动态注册的jni函数

动态注册的jni函数都是通过 RegisterNatives 去注册绑定地址，定位到源码的位置

static jint RegisterNatives(JNIEnv* env,
                            jclass java_class,
                            const JNINativeMethod* methods,
                            jint method_count) {
  ......
  CHECK_NON_NULL_ARGUMENT_FN_NAME("RegisterNatives", methods, JNI_ERR);
  for (jint i = 0; i < method_count; ++i) {
    const char* name = methods[i].name;
    const char* sig = methods[i].signature;
    const void* fnPtr = methods[i].fnPtr;
    bool is_fast = false;
    ......
    const void* final_function_ptr = m->RegisterNative(fnPtr, is_fast);
    UNUSED(final_function_ptr);
  }
  return JNI_OK;
}

遍历methods，最后跟静态注册jni函数的流程一样去调用 RegisterNative ，静态注册的log已经添加，那在 RegisterNative 里添加log不就能跟踪到动态注册的函数，

const void* ArtMethod::RegisterNative(const void* native_method, bool is_fast) {
  CHECK(IsNative()) << PrettyMethod();
  CHECK(!IsFastNative()) << PrettyMethod();
  CHECK(native_method != nullptr) << PrettyMethod();
  if (is_fast) {
    AddAccessFlags(kAccFastNative);
  }
  void* new_native_method = nullptr;
  Runtime::Current()->GetRuntimeCallbacks()->RegisterNativeMethod(this,
                                                                  native_method,
                                                                  /*out*/&new_native_method);
  //add
  std::stringstream oss;
  oss << "[ArtMethod::RegisterNative]JniMethod->" << this->PrettyMethod() << ", add: " << native_method;
  const char *content = oss.str().c_str();
  if (strstr(content, "zsklog") != nullptr) {
    LOG(ERROR) << content;
  }
  //add
  SetEntryPointFromJni(new_native_method);
  return new_native_method;
}

jni函数的绑定分类总结

静态函数的jni函数：有两次绑定，第一次是在类加载时，会绑定到ART中的“桥函数”(art_jni_dlsym_lookup_stub) ，第二次绑定是在该jni函数第一次被真正调用时，ART 会通过桥函数查找该函数在本地库中的实际地址，并进行绑定。后续调用将直接使用该地址，避免重复查找。
LoadClass -> LoadClassMembers -> SetEntryPointFromJni(GetJniDlsymLookupStub() ->art_jni_dlsym_lookup_stub -> artFindNativeMethod -> FindCodeForNativeMethod(method)

动态注册的jni函数：也是有两次绑定，只不过和静态注册的jni函数的第二次绑定不同之处在于是由开发人员编写的代码主动调用RegeisterNatives进行绑定，而不是由ART“帮助”完成绑定。
重新编写后刷入，frida代码

function traceJniRegiseter(){
    var libc_module = Process.getModuleByName("libc.so");
    var strstr = libc_module.getExportByName("strstr");
    Interceptor.attach(strstr, {
        onEnter: function(args) {
            this.thread_id = Process.getCurrentThreadId();
            this.arg0 = ptr(args[0]).readUtf8String();
            this.arg1 = ptr(args[1]).readUtf8String();
        }, onLeave: function(retval) {
            if (this.arg1 == "zsklog") {
                console.log("[" + this.thread_id + "]" + "go into OpenNativeLibrary -> " + this.arg0);
                retval.replace(0x100);
            }
        }
    })
}

function tracesoload(){
    console.log(Process.arch);
    var libnativeloaderModule = Process.getModuleByName("libnativeloader.so");
    // OpenNativeLibrary
    var OpenNativeLibraryAddr = libnativeloaderModule.getExportByName("_ZN7android17OpenNativeLibraryEP7_JNIEnviPKcP8_jobjectP8_jstringPbPNSt3__112basic_stringIcNS9_11char_traitsIcEENS9_9allocatorIcEEEE");
    Interceptor.attach(OpenNativeLibraryAddr, {
        onEnter: function(args){
            this.sopath = ptr(args[2]).readUtf8String();
            this.thread_id = Process.getCurrentThreadId();
            console.log("[" + this.thread_id + "]" + "go into OpenNativeLibrary -> " + this.sopath);
        }, onLeave: function(retval) {
            console.log("[" + this.thread_id + "]" + "leave OpenNativeLibrary -> " + this.sopath, ", return: " + retval);
        }
    })

    var dlsymAddr = Module.findExportByName("libc.so", "dlsym");
    Interceptor.attach(dlsymAddr, {
        onEnter: function(args){
            this.handle = args[0];
            this.symbol = ptr(args[1]).readUtf8String();
            this.thread_id = Process.getCurrentThreadId();
        }, onLeave: function(retval){
            console.log("[" + this.thread_id + "]" + "leave dlsym: handle: " + this.handle + ", symbol: " + this.symbol, ", return: " + retval);
        }
    })
}

function main(){
    tracesoload();
    traceJniRegiseter();
}

setImmediate(main);

arm64
[8007]leave dlsym: handle: 0x2adcc85529763b0b, symbol: oatdata , return: 0x7d1659d000
[8007]leave dlsym: handle: 0x2adcc85529763b0b, symbol: oatlastword , return: 0x7d1659e224
[8007]leave dlsym: handle: 0x2adcc85529763b0b, symbol: oatbss , return: 0x7d1659f000
[8007]leave dlsym: handle: 0x2adcc85529763b0b, symbol: oatbsslastword , return: 0x7d165a2acc
[8007]leave dlsym: handle: 0x2adcc85529763b0b, symbol: oatbssmethods , return: 0x0
[8007]leave dlsym: handle: 0x2adcc85529763b0b, symbol: oatbssroots , return: 0x0
[8007]go into OpenNativeLibrary -> /data/app/com.iCitySuzhou.suzhou001-IqFG3pwpI6PxX176DYv1tw==/lib/arm64/libshell-super.com.iCitySuzhou.suzhou001.so
[8007]leave dlsym: handle: 0xa5c5ee03e19145b9, symbol: mmap , return: 0x7db163acd4
[8007]leave dlsym: handle: 0xa5c5ee03e19145b9, symbol: write , return: 0x7db163b4cc
[8007]leave dlsym: handle: 0xa5c5ee03e19145b9, symbol: close , return: 0x7db15ed138
[8007]leave dlsym: handle: 0xa5c5ee03e19145b9, symbol: fdatasync , return: 0x7db163a8b4
[8007]leave OpenNativeLibrary -> /data/app/com.iCitySuzhou.suzhou001-IqFG3pwpI6PxX176DYv1tw==/lib/arm64/libshell-super.com.iCitySuzhou.suzhou001.so , return: 0x5cd2a12d5c2fc103
[8007]leave dlsym: handle: 0x5cd2a12d5c2fc103, symbol: JNI_OnLoad , return: 0x7d160c6a5c
[8007]go into OpenNativeLibrary -> [ArtMethod::RegisterNative]JniMethod->void com.wrapper.proxyapplication.WrapperProxyApplication.Ooo0ooO0oO(), add: 0x7d160c8418
[8007]go into OpenNativeLibrary -> [ArtMethod::RegisterNative]JniMethod->int com.wrapper.proxyapplication.CustomerClassLoader.ShowLogs(java.lang.String, int), add: 0x7d160c648c
......
