动静态SO层算法还原和脱机(吾爱论坛2021春节安卓题目)

文章的案例来自吾爱论坛2021春节安卓题目

链接：案例链接

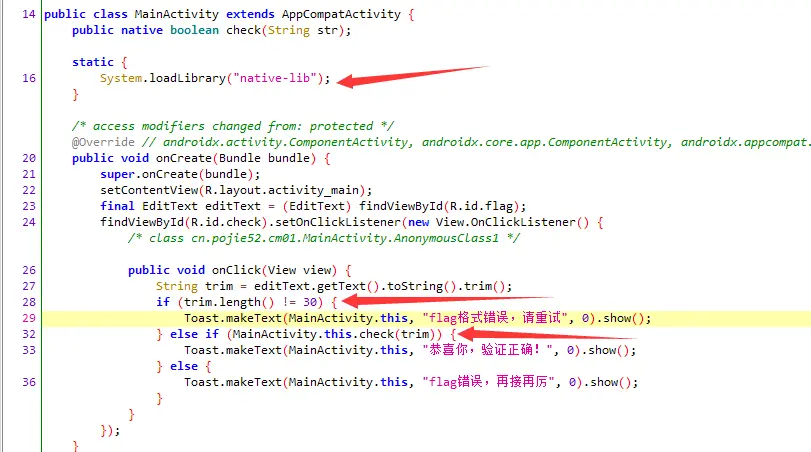

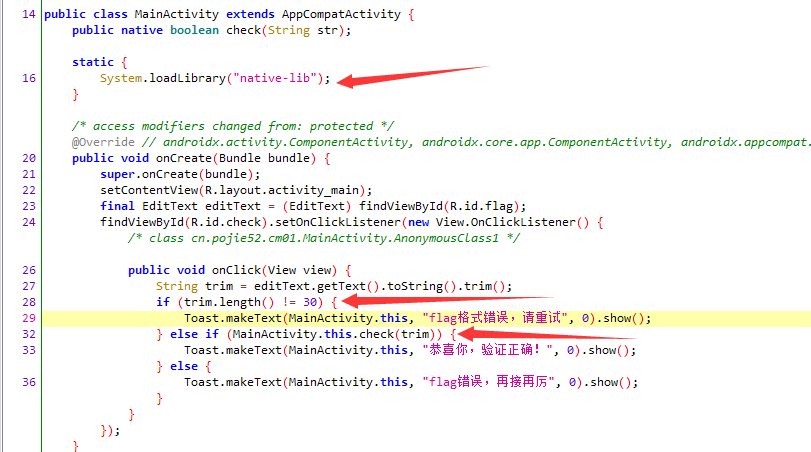

java用的是unicode编码，c语言用的是ASCII编码

明文限制的长度是30，检测函数在nativel-lib文件里

解压apk并用ida打开so文件

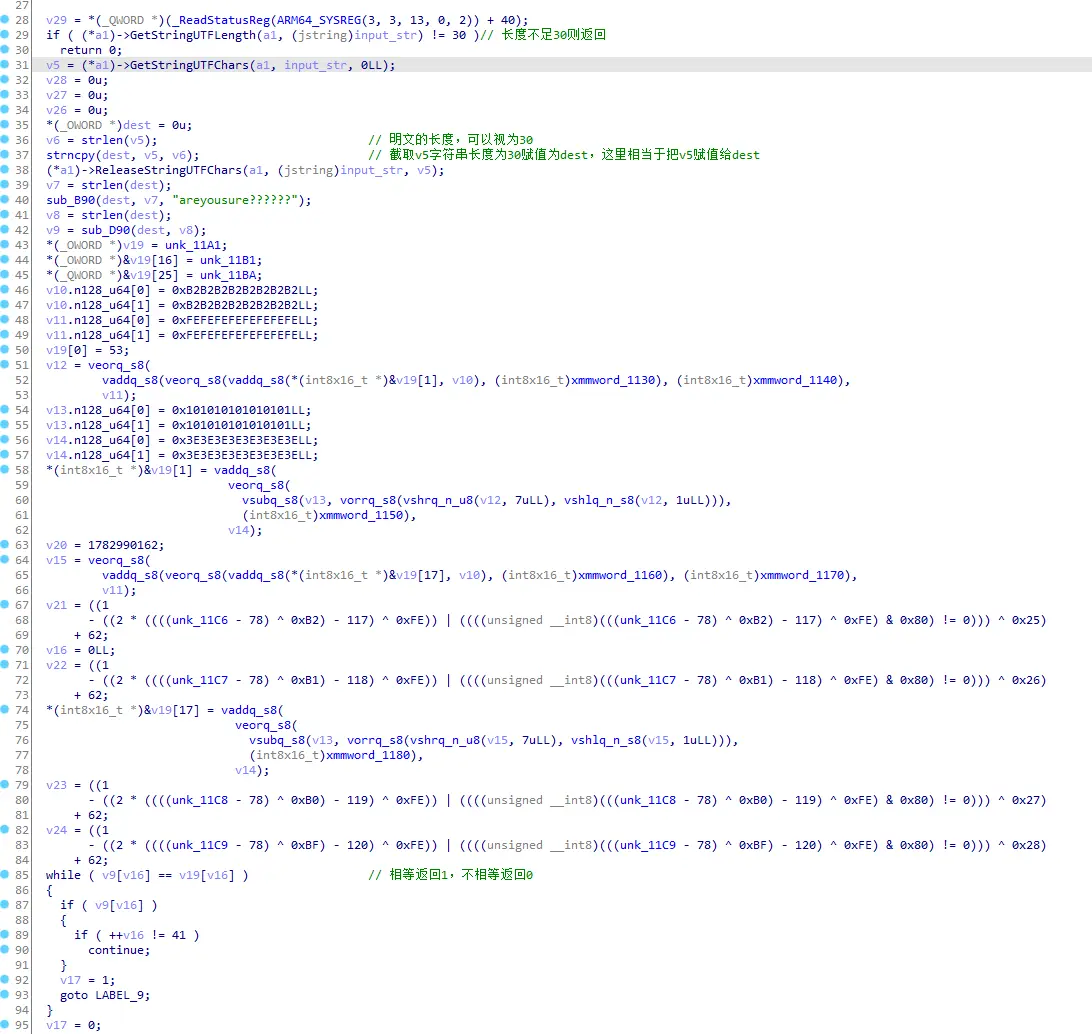

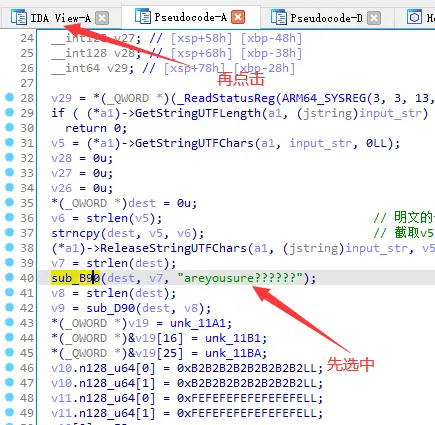

大概分析一下，传进来的参数判断是否为30位，然后进入sub_B90进行处理后，再进入sub_D90处理，结果为v9，最后v9和v19作比较，相等返回1，不等返回0；

用ida动态调试

调试前先把ida目录下的dbgsrv、android-server拷贝到手机上
并修改权限 777
这里需要开启frida去获取so的基址+sub_B90的偏移量=sub_B90的绝对地址
先运行frida，再运行android-server
frida代码

function hook_KeyStore_load() {
    Java.perform(function () {
        var addr_libnatuve = Module.findBaseAddress("libnative-lib.so")
        if(addr_libnatuve) {
            console.log("so基址：", addr_libnatuve)

        }
    });
}

setImmediate(hook_KeyStore_load)

打印结果
so基址： 0x7613313000
0x7613313000+8AC

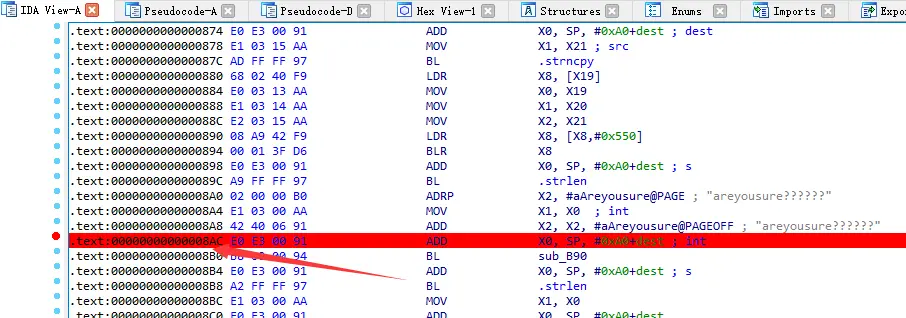

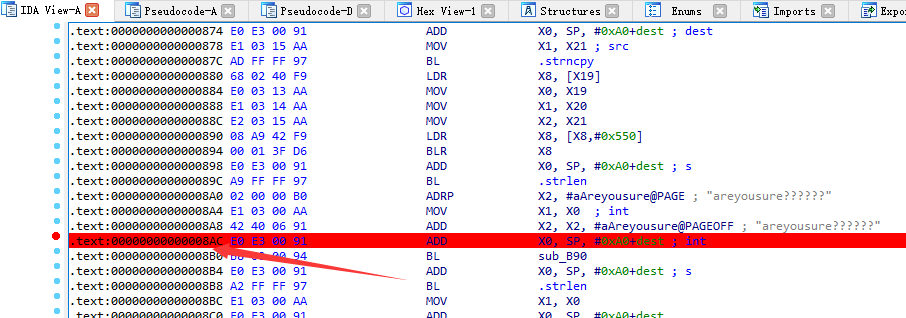

所以需要在动调调试的时候在位置打上断点

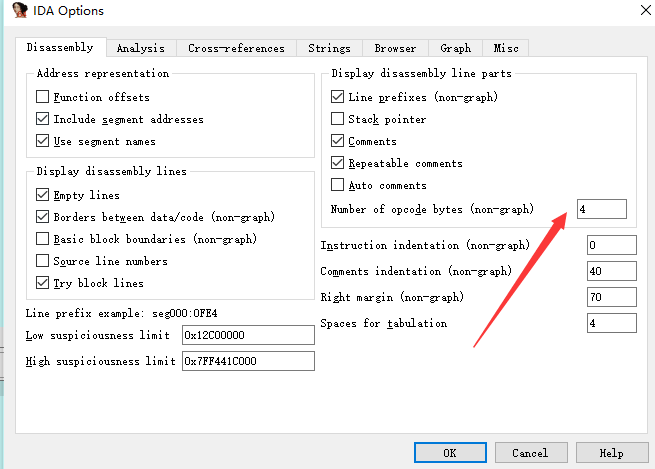

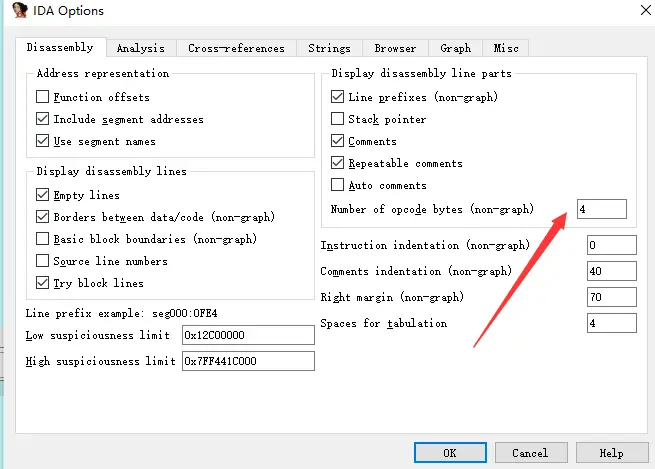

没显示汇编按空格

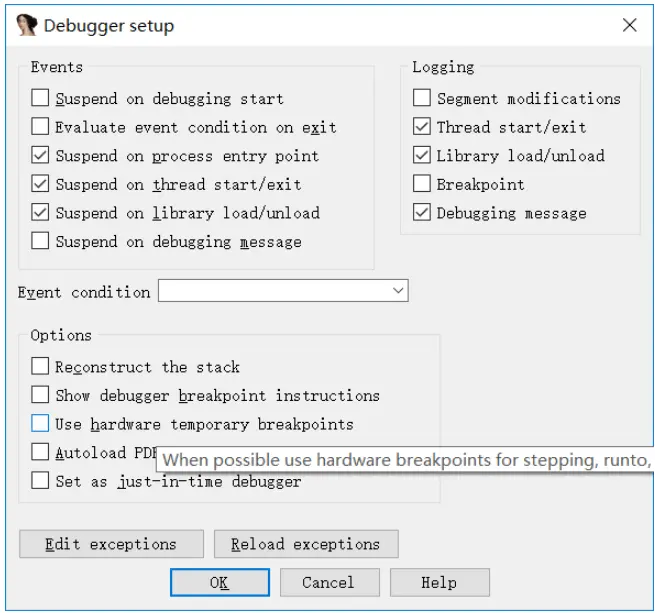

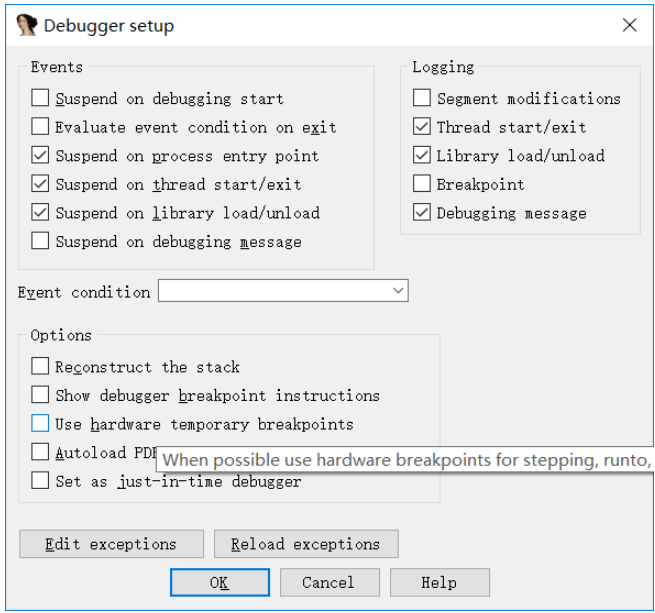

以go方式打开ida

选择Debugger–》Attach–》Remote ARM Linux/Android debugger

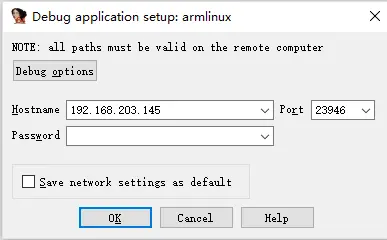

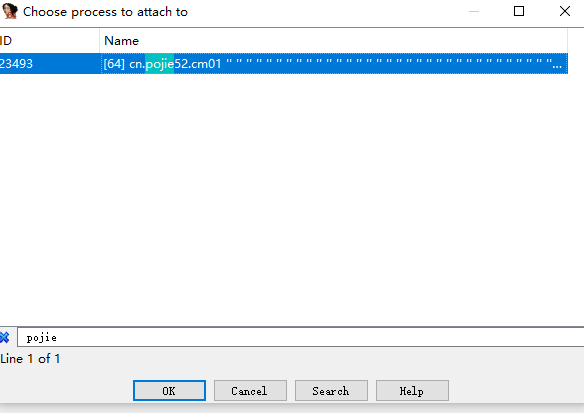

输入手机IP，选择进程

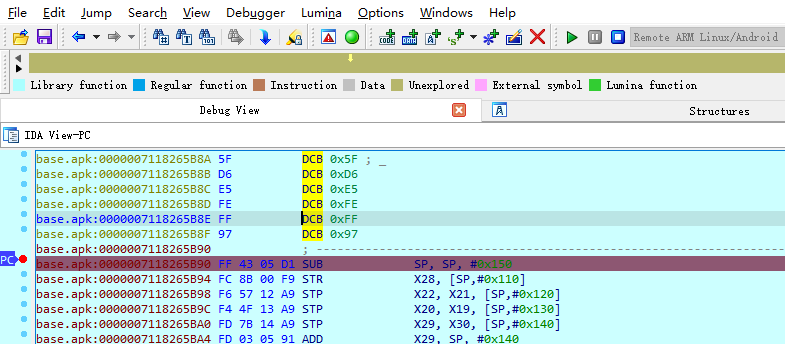

加载好后跳到指定位置，或者快捷键G

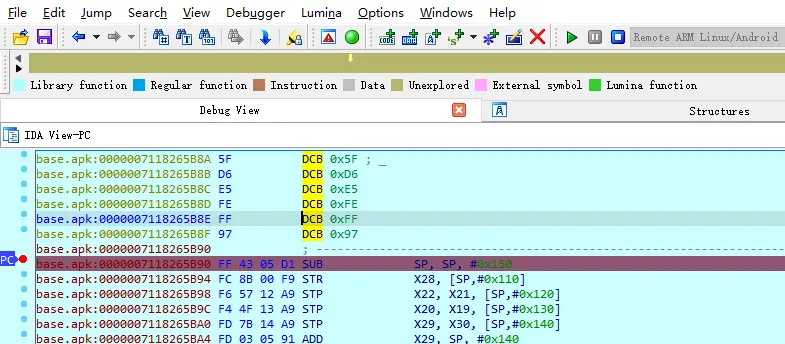

打上断点后，点击绿色小箭头继续运行，app点击验证，会断到当前位置

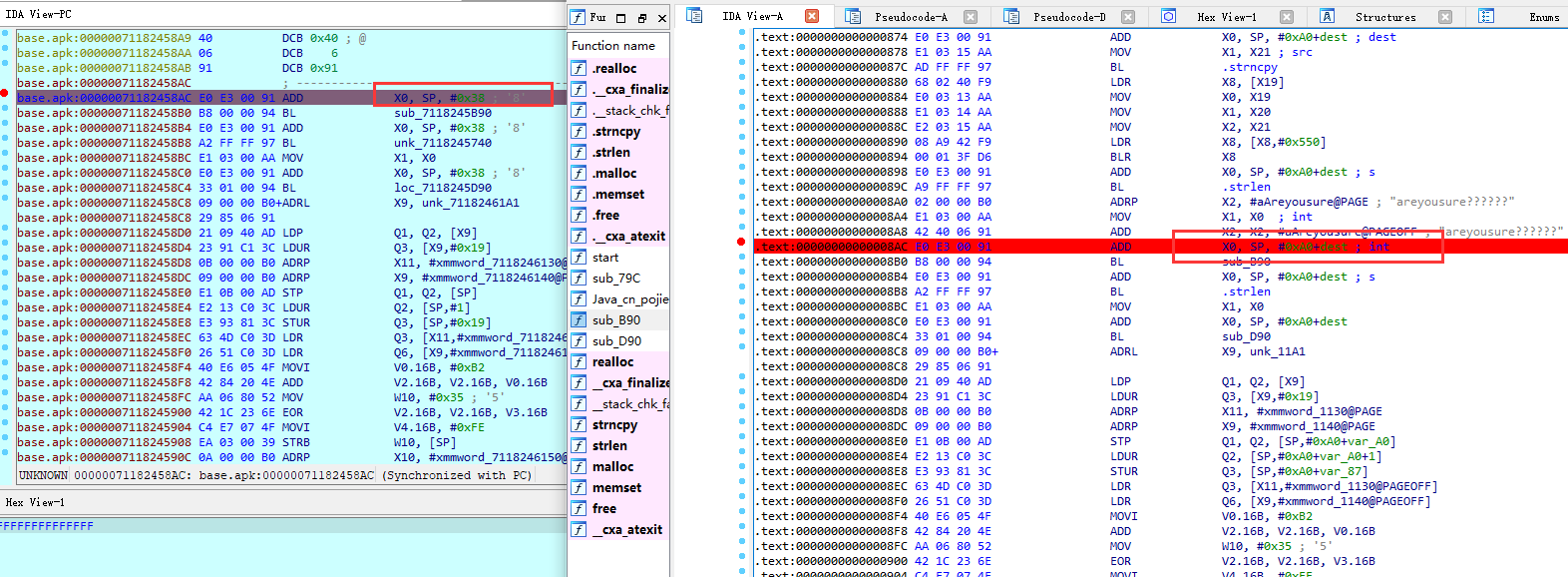

可以转为汇编跟静态ida的作比较，Edit–》Code，或者快捷键C





按F8单步调试

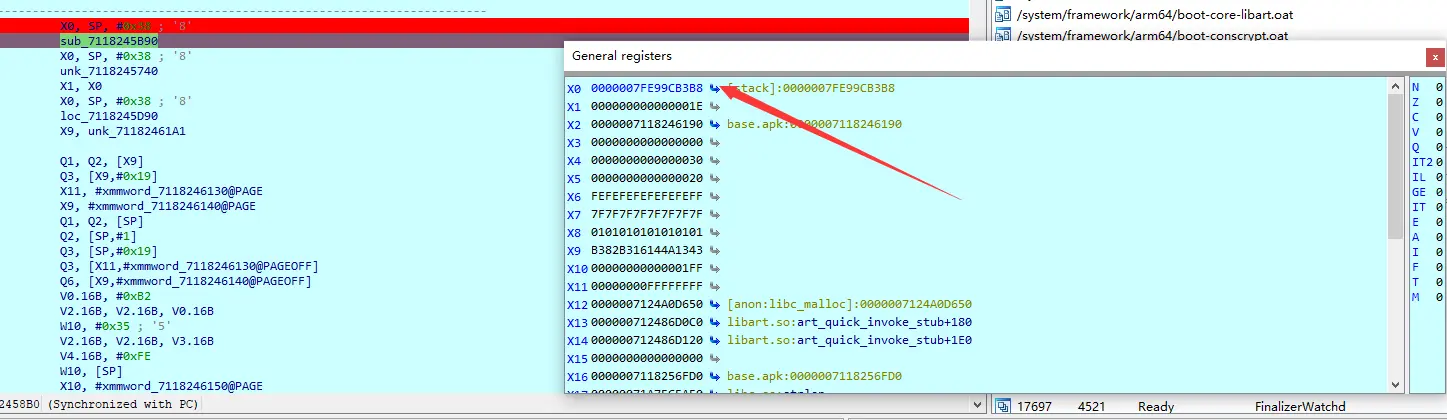

打开寄存器，进入

用Frida

这里直接用fridahook 函数，sub_B90
sub_B90的偏移量为B90

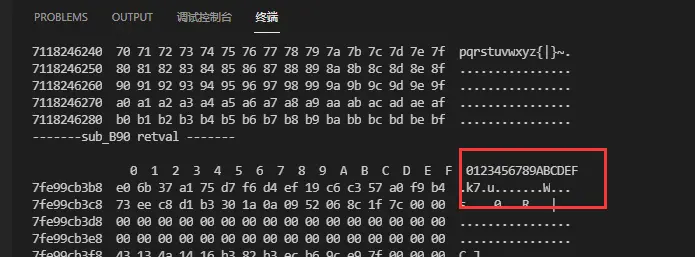

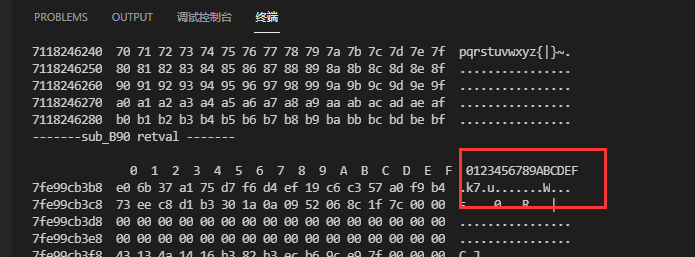

这就是第一轮加密后的

hook 第二个函数

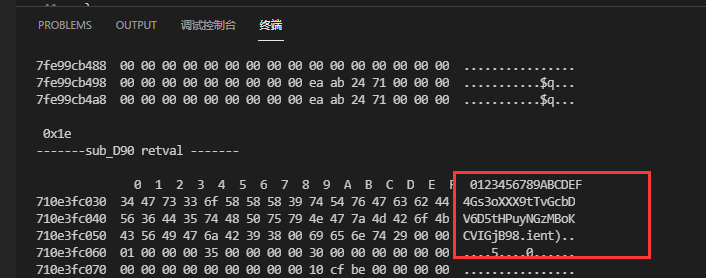

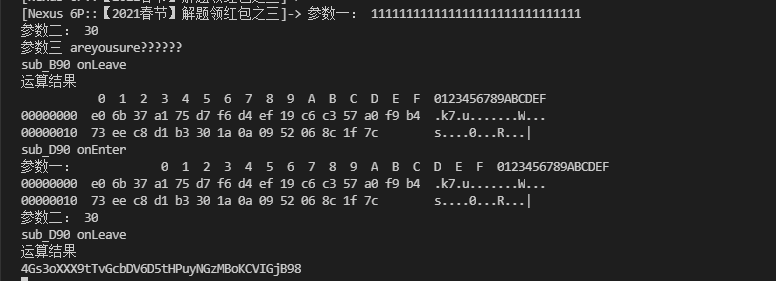

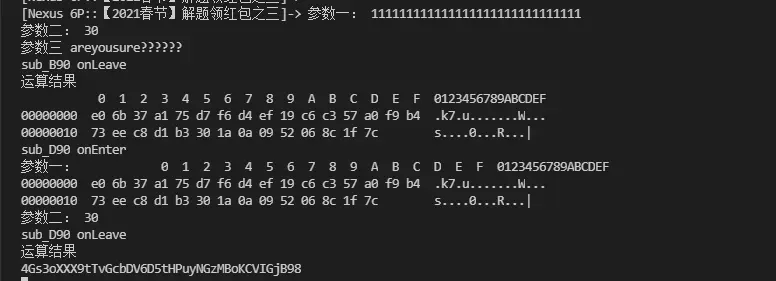

这是明文经两轮加密后的结果

function hook_KeyStore_load() {
    Java.perform(function () {
        var addr_libnatuve = Module.findBaseAddress("libnative-lib.so")
        if(addr_libnatuve) {
            console.log("so基址：", addr_libnatuve)
            var sub_B90 = addr_libnatuve.add(0xB90)
            Interceptor.attach(sub_B90, {
                onEnter: function(args){
                    this.arg0 = args[0]
                    this.arg1 = args[1]
                    this.arg2 = args[2]

                    // console.log("
",hexdump(this.arg0))
                    // console.log("
",this.arg1);
                    // console.log("
",hexdump(this.arg2));
                    console.log("参数一：",Memory.readCString(this.arg0))
                    console.log("参数二：",this.arg1.toInt32());
                    console.log("参数三",Memory.readCString(this.arg2))
                },
                onLeave: function(retval){
                    console.log("sub_B90 onLeave");
                    console.log("运算结果");
                    console.log(Memory.readByteArray(this.arg0, 30)); // 这里把结果赋值给了第一个参数
                }
            })

            var sub_D90 = addr_libnatuve.add(0xD90)
            Interceptor.attach(sub_D90, {
                onEnter: function(args){
                    console.log("sub_D90 onEnter");
                    this.arg0 = args[0]
                    this.arg1 = args[1]

                    console.log("参数一：",Memory.readByteArray(args[0], 30))
                    console.log("参数二：", this.arg1.toInt32())
                },
                onLeave: function(retval){
                    console.log("sub_D90 onLeave");
                    console.log("运算结果");
                    console.log(Memory.readCString(retval));
                }
            })
        }
    });
}

setImmediate(hook_KeyStore_load)

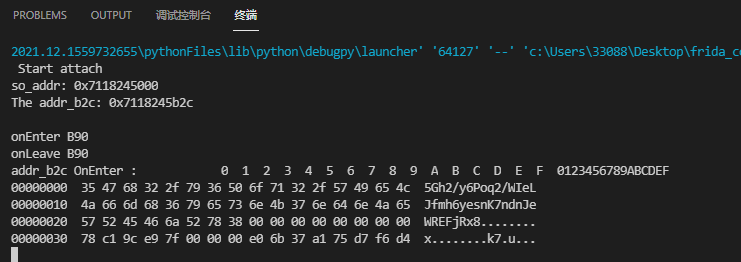

主动调用

# -*- coding: UTF-8 -*-

import frida, sys

jscode = '''

var destAddr = '';  //定位xsp地址

function inline_hook() {
    var so_addr = Module.findBaseAddress("libnative-lib.so");


    if (so_addr) {
        console.log("so_addr:", so_addr);

        var addr_b90 = so_addr.add(0xB90);
        var sub_b90 = new NativeFunction(addr_b90 , 'int', ['pointer', 'int', 'pointer']);
        Interceptor.attach(sub_b90, {
            onEnter: function(args)
            {
            destAddr = args[0];
            console.log('onEnter B90');
            },
            //在hook函数之后执行的语句
            onLeave:function(retval)
            {
            console.log('onLeave B90');
            }
        });


        var addr_b2c = so_addr.add(0xb2c);
        console.log("The addr_b2c:", addr_b2c);
        Java.perform(function() {
            Interceptor.attach(addr_b2c, {
                onEnter: function(args) {
                console.log("addr_b2c OnEnter :",  Memory.readByteArray(destAddr.sub(0x38),64) );
                }
            })
        })
    }
}
setImmediate(inline_hook)


'''
def on_message(message, data):
    if message['type'] == 'send':
        print(" {0}".format(message['payload']))
    else:
        print(message)
pass
#print(frida.enumerate_devices())
# 查找USB设备并附加到目标进程
device =  frida.get_usb_device()
#pid = device.spawn(["com.live.xctv"])

#session = device.attach(pid)
session =device.attach('cn.pojie52.cm01') #这里是要注入的apk包名
# 在目标进程里创建脚本
script = session.create_script(jscode)
# 注册消息回调
script.on('message', on_message)
print(' Start attach')
# 加载创建好的javascript脚本
script.load()
# 读取系统输入
sys.stdin.read()

异或

大概分析一下sub_b90，是根据传入的第三个参数s把v20进行了一个初始化，然后再把参数a1和v20进行了异或运算，主要看这个异或运算，先设想一下，如果是把a1进行了异或，那么得到的结果和a1之前的数据再异或就可以计算出异或的key，这里我们把它叫做xorkey，那么先看一下我们传入的参数，是30个1，也就是30个0x31 ，然后看结果，第一位是0xe0，0x31^0xe0 = 209，然后把参数改为30个2，即0x32，得出首位的结果是0xe3，0xe3^0x32结果也是209，证明我们的思路是正确的，然后依次求出所有的xorkey，

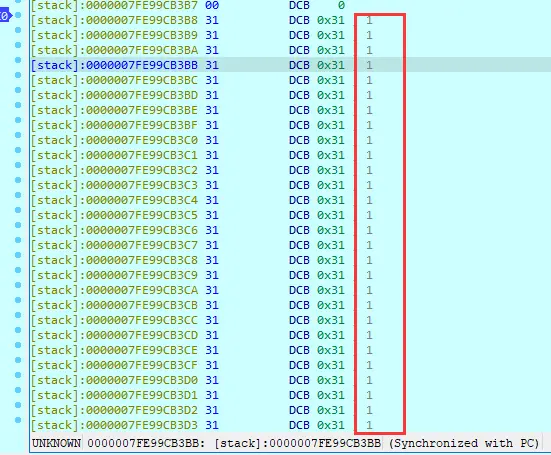

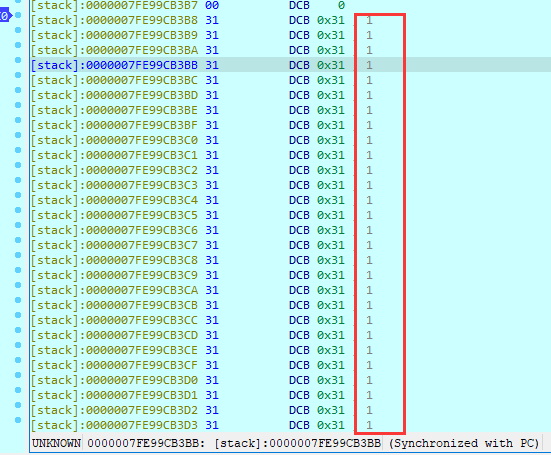

这里的值是输入，30个1加密后异或来的
明文 ^ 密钥 = 密文
# 拿到密钥
明文 ^ 密文 = 密钥

a = [0x31, 0x31, 0x31, 0x31, 0x31, 0x31, 0x31, 0x31, 0x31, 0x31, 0x31, 0x31, 0x31, 0x31, 0x31, 0x31, 0x31, 0x31, 0x31,
     0x31, 0x31, 0x31, 0x31, 0x31, 0x31, 0x31, 0x31, 0x31, 0x31, 0x31]
b = [0xe0, 0x6b, 0x37, 0xa1, 0x75, 0xd7, 0xf6, 0xd4, 0xef, 0x19, 0xc6, 0xc3, 0x57, 0xa0, 0xf9, 0xb4, 0x73, 0xee, 0xc8,
     0xd1, 0xb3, 0x30, 0x1a, 0x0a, 0x09, 0x52, 0x06, 0x8c, 0x1f, 0x7c]

c = []
for i in range(0, 30):
    c.append(a[i] ^ b[i])

print(c)

结果：

[209, 90, 6, 144, 68, 230, 199, 229, 222, 40, 247, 242, 102, 145, 200, 133, 66, 223, 249, 224, 130, 1, 43, 59, 56, 99, 55, 189, 46, 77]

异或的key找到了，现在要找异或后的正确值，才能算出答案明文
1.调试
![image.png]
调试到这里，要在寄存器钟拿到v19

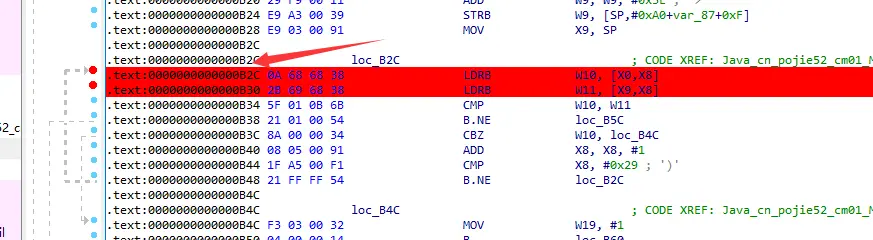

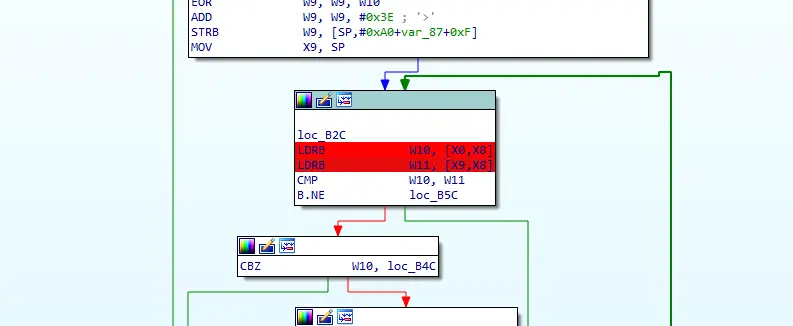

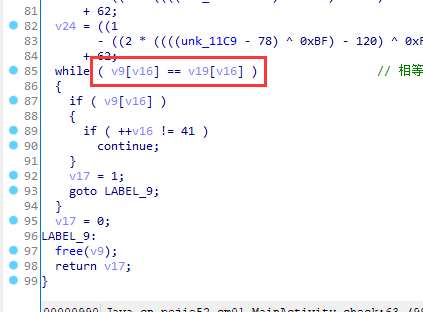

这里就是判断的地方，偏移量为B2C

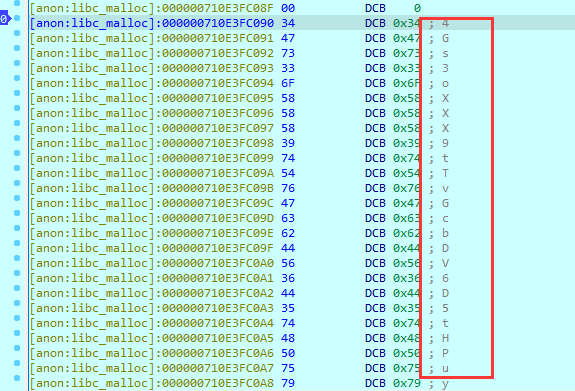

调试

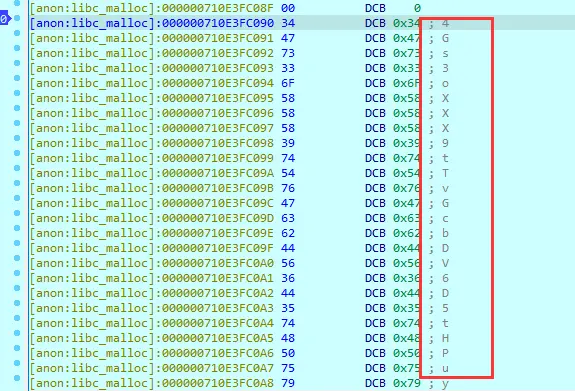

没计算前

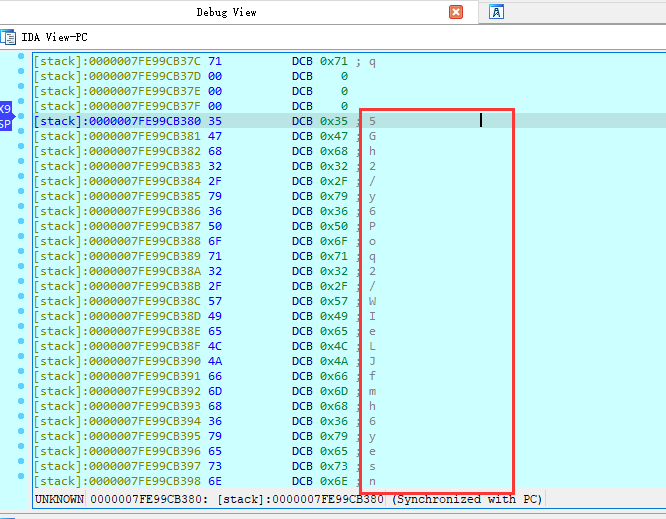

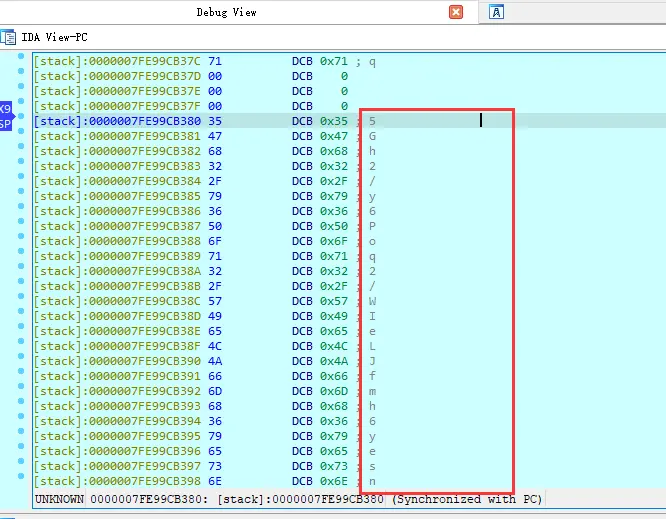

计算后



这就是要的密文了
“5Gh2/y6Poq2/WIeLJfmh6yesnK7ndnJeWREFjRx8”

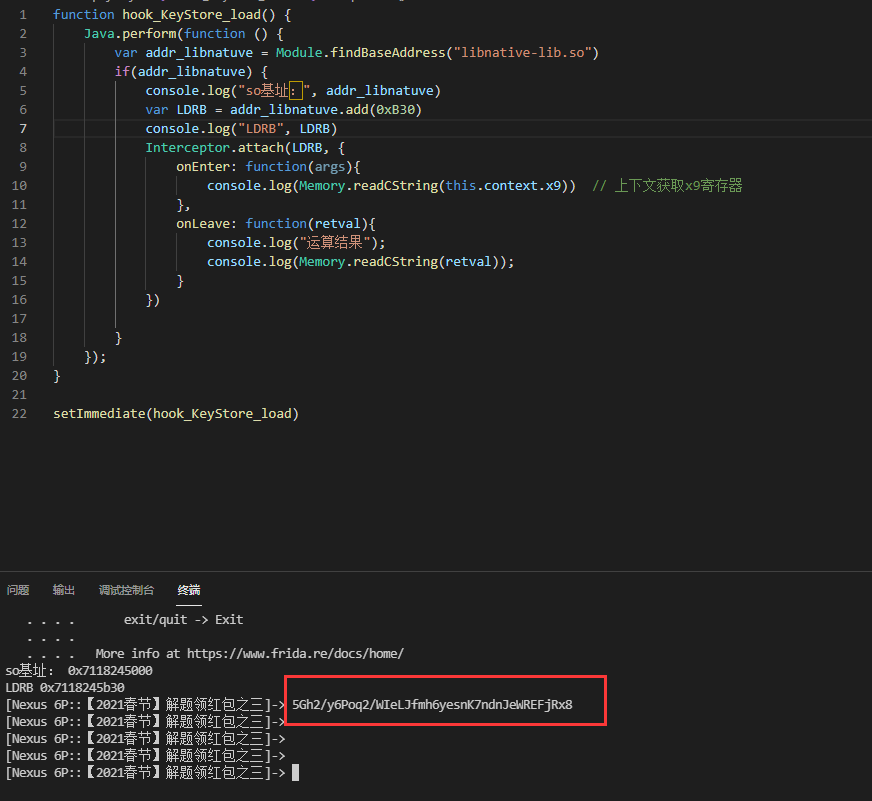

另一种方式hook寄存器

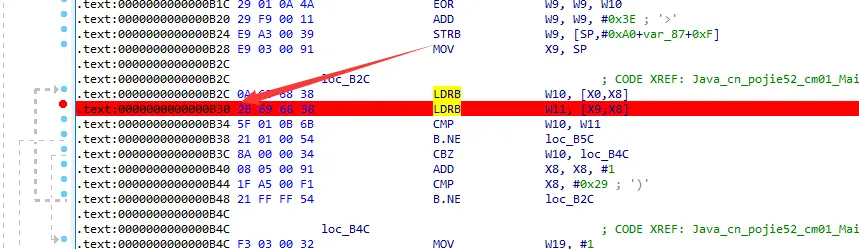

基地址加B30就是结果寄存器的位置，同时我们需要的是x9寄存器的值

function hook_KeyStore_load() {
    Java.perform(function () {
        var addr_libnatuve = Module.findBaseAddress("libnative-lib.so")
        if(addr_libnatuve) {
            console.log("so基址：", addr_libnatuve)
            var LDRB = addr_libnatuve.add(0xB30)
            console.log("LDRB", LDRB)
            Interceptor.attach(LDRB, {
                onEnter: function(args){
                    console.log(Memory.readCString(this.context.x9))  // 上下文获取x9寄存器
                },
                onLeave: function(retval){
                    console.log("运算结果");
                    console.log(Memory.readCString(retval));
                }
            })

        }
    });
}

setImmediate(hook_KeyStore_load)

异或出答案

密钥：[‘0xd1’, ‘0x5a’, ‘0x6’, ‘0x90’, ‘0x44’, ‘0xe6’, ‘0xc7’, ‘0xe5’, ‘0xde’, ‘0x28’, ‘0xf7’, ‘0xf2’, ‘0x66’, ‘0x91’, ‘0xc8’, ‘0x85’, ‘0x42’, ‘0xdf’, ‘0xf9’, ‘0xe0’, ‘0x82’, ‘0x1’, ‘0x2b’, ‘0x3b’, ‘0x38’, ‘0x63’, ‘0x37’, ‘0xbd’, ‘0x2e’, ‘0x4d’]
结果：“5Gh2/y6Poq2/WIeLJfmh6yesnK7ndnJeWREFjRx8”
结果^密钥=答案

import base64

a = [0x31, 0x31, 0x31, 0x31, 0x31, 0x31, 0x31, 0x31, 0x31, 0x31, 0x31, 0x31, 0x31, 0x31, 0x31, 0x31, 0x31, 0x31, 0x31,
     0x31, 0x31, 0x31, 0x31, 0x31, 0x31, 0x31, 0x31, 0x31, 0x31, 0x31]
b = [0xe0, 0x6b, 0x37, 0xa1, 0x75, 0xd7, 0xf6, 0xd4, 0xef, 0x19, 0xc6, 0xc3, 0x57, 0xa0, 0xf9, 0xb4, 0x73, 0xee, 0xc8,
     0xd1, 0xb3, 0x30, 0x1a, 0x0a, 0x09, 0x52, 0x06, 0x8c, 0x1f, 0x7c]

c = []
for i in range(0, 30):
    c.append(a[i] ^ b[i])

print(c) # [209, 90, 6, 144, 68, 230, 199, 229, 222, 40, 247, 242, 102, 145, 200, 133, 66, 223, 249, 224, 130, 1, 43, 59, 56, 99, 55, 189, 46, 77]

d = [0xd1, 0x5a, 0x6, 0x90, 0x44, 0xe6, 0xc7, 0xe5, 0xde, 0x28, 0xf7, 0xf2, 0x66, 0x91, 0xc8, 0x85, 0x42, 0xdf, 0xf9, 0xe0, 0x82, 0x1, 0x2b, 0x3b, 0x38, 0x63, 0x37, 0xbd, 0x2e, 0x4d]
data = base64.b64decode('5Gh2/y6Poq2/WIeLJfmh6yesnK7ndnJeWREFjRx8'.encode())
flag = bytes([d[i] ^ data[i] for i in range(len(d))]).decode()
print(flag)

运行结果为：

52pojieHappyChineseNewYear2021
