某乎x-zse-96逆向
zsk Lv4
  2025-03-08 01:12:35 2025-03-08 01:12   2025-03-08 01:29:54    3.6k 字  19 分钟

app的版本是 10.37.0

定位

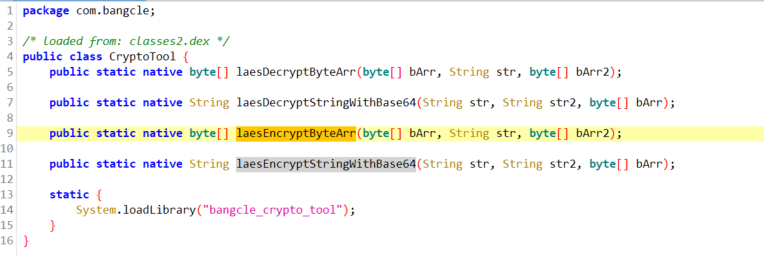

抓包啥的没啥好说的，参数定位直接jadx搜索，很快定位到，直接上图最终调用so加密的函数


该app有frida检测，怎么绕过看上一篇绕过libmsaoaidsec.so的Frida检测

从函数看加密跟aes相关，但其实魔改了多很，其中laesEncryptByteArr的三个参数，bArr是明文，str可以理解为扩展后的key，bArr2是iv，str和bArr2都是固定的

unidng分析

直接搭起框架，函数调用

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
package com.zhihu;

import com.github.unidbg.AndroidEmulator;
import com.github.unidbg.Module;
import com.github.unidbg.linux.android.AndroidEmulatorBuilder;
import com.github.unidbg.linux.android.AndroidResolver;
import com.github.unidbg.linux.android.dvm.AbstractJni;
import com.github.unidbg.linux.android.dvm.DalvikModule;
import com.github.unidbg.linux.android.dvm.StringObject;
import com.github.unidbg.linux.android.dvm.VM;
import com.github.unidbg.linux.android.dvm.array.ByteArray;
import com.github.unidbg.memory.Memory;
import com.github.unidbg.virtualmodule.android.AndroidModule;
import com.github.unidbg.virtualmodule.android.JniGraphics;
import com.github.unidbg.virtualmodule.android.MediaNdkModule;
import com.github.unidbg.virtualmodule.android.SystemProperties;

import java.io.File;
import java.util.ArrayList;
import java.util.List;

/**
 * Created by zsk
 * on 2025/03/06 02:00
 */
public class encrypt extends AbstractJni{
    private final AndroidEmulator emulator;
    private final VM vm;
    private final Module module;

    public encrypt() {
        emulator = AndroidEmulatorBuilder.for64Bit().setProcessName("com.zhihu.android").build(); // 创建模拟器实例，要模拟32位或者64位，在这里区分
        // 模拟器的内存操作接口
        final Memory memory = emulator.getMemory();
        // 设置系统类库解析
        memory.setLibraryResolver(new AndroidResolver(23));
        // 创建Android虚拟机
        vm = emulator.createDalvikVM(new File("unidbg-android/src/test/resources/zhihu/zhihu10.37.0.apk"));
        // 设置JNI
        vm.setJni(this);
        // 打印日志
        vm.setVerbose(true);
        // 加载基本库
        new AndroidModule(emulator, vm).register(memory);
        new MediaNdkModule(emulator, vm).register(memory);
        new JniGraphics(emulator, vm).register(memory);
        new SystemProperties(emulator, null).register(memory);
        // 加载so到虚拟内存
        DalvikModule dm = vm.loadLibrary("bangcle_crypto_tool", true);
        module = dm.getModule();

        dm.callJNI_OnLoad(emulator);
    }

    public static String bytesToHex(byte[] bytes) {
        StringBuilder hexString = new StringBuilder();
        for (byte b : bytes) {
            String hex = Integer.toHexString(b & 0xFF);
            if (hex.length() == 1) {
                hexString.append('0');
            }
            hexString.append(hex);
        }
        return hexString.toString();
    }

    public void callAesEncryptByteArr() {
        // args list
        List<Object> list = new ArrayList<>(10);
        // jnienv
        list.add(vm.getJNIEnv());
        // jclazz
        list.add(0);

        // hex 8b8d8089212822818d23298d23298180218229882280238883808a2a2a238082
        byte[] input = {-117, -115, -128, -119, 33, 40, 34, -127, -115, 35, 41, -115, 35, 41, -127, -128, 33, -126, 41, -120, 34, -128, 35, -120, -125, -128, -118, 42, 42, 35, -128, -126};
        // hex 99303a3a32343a3992923a3b3a999292
        byte[] iv = {-103, 48, 58, 58, 50, 52, 58, 57, -110, -110, 58, 59, 58, -103, -110, -110};
        String key = "541a3a5896fbefd351917c8251328a236a7efbf27d0fad8283ef59ef07aa386dbb2b1fcbba167135d575877ba0205a02f0aac2d31957bc7f028ed5888d4bbe69ed6768efc15ab703dc0f406b301845a0a64cf3c427c82870053bd7ba6721649c3a9aca8c3c31710a6be5ce71e4686842732d9314d6898cc3fdca075db46d1ccf3a7f9b20615f4a303c5235bd02c5cdc791eb123b9d9f7e72e954de3bcbf7d314064a1eced78d13679d040dd4080640d18c37bbde";

        ByteArray arr1 = new ByteArray(vm, input);
        ByteArray arr2 = new ByteArray(vm, iv);

        list.add(vm.addLocalObject(arr1));
        list.add(vm.addLocalObject(new StringObject(vm, key)));
        list.add(vm.addLocalObject(arr2));

        Number number = module.callFunction(emulator, 0x9e98, list.toArray());
        ByteArray resultArr = vm.getObject(number.intValue());
        System.out.println("result: " + bytesToHex(resultArr.getValue()));
    }

    public static void main(String[] args) {
        encrypt e = new encrypt();
        e.callAesEncryptByteArr();
    }
}

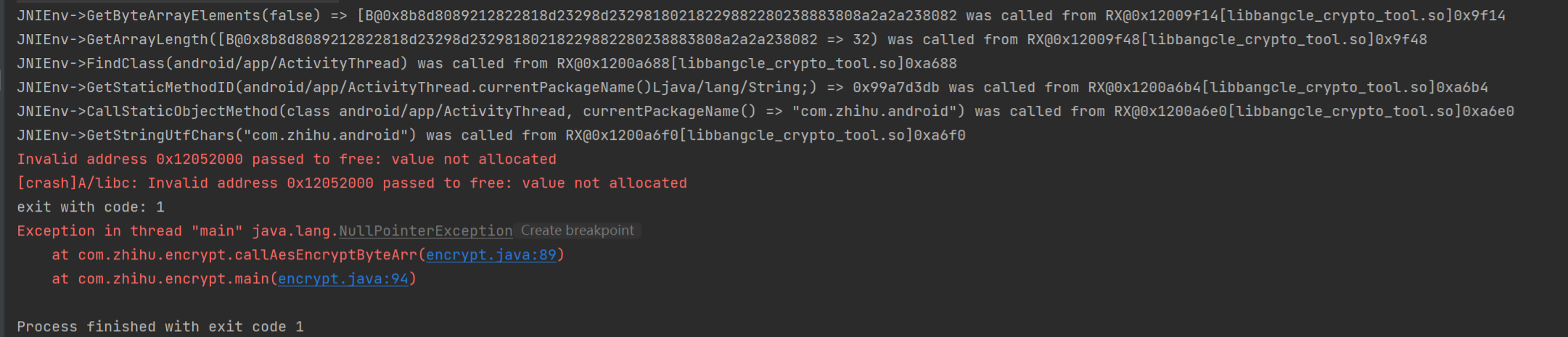

运行报错了，该问题内存未分配，调用free释放内存导致的问题


这里可以直接在调用free的地方patch掉，不执行free就可以了

把traceCode开启，看报错的位置

1
emulator.traceCode(module.base, module.base + module.size);
1
2
3
4
5
6
7
8
9
10
[00:19:30 167][libbangcle_crypto_tool.so 0x048c8] [a01740f9] 0x120048c8: "ldr x0, [x29, #0x28]" x29=0xe4fff5b0 => x0=0x12052000
[00:19:30 168][libbangcle_crypto_tool.so 0x048cc] [1f001feb] 0x120048cc: "cmp x0, xzr" => nzcv: N=0, Z=0, C=1, V=0 x0=0x12052000
[00:19:30 168][libbangcle_crypto_tool.so 0x048d0] [20010054] 0x120048d0: "b.eq #0x120048f4" nzcv: N=0, Z=0, C=1, V=0
[00:19:30 169][libbangcle_crypto_tool.so 0x048d4] [a01740f9] 0x120048d4: "ldr x0, [x29, #0x28]" x29=0xe4fff5b0 => x0=0x12052000
[00:19:30 169][libbangcle_crypto_tool.so 0x048d8] [52f6ff97] 0x120048d8: "bl #0x12002220"
[00:19:30 177][libbangcle_crypto_tool.so 0x02220] [f00000b0] 0x12002220: "adrp x16, #0x1201f000" => x16=0x1201f000
[00:19:30 179][libbangcle_crypto_tool.so 0x02224] [11ba47f9] 0x12002224: "ldr x17, [x16, #0xf70]" x16=0x1201f000 => x17=0x1218bac0
[00:19:30 182][libbangcle_crypto_tool.so 0x02228] [10c23d91] 0x12002228: "add x16, x16, #0xf70" x16=0x1201f000 => x16=0x1201ff70
[00:19:30 184][libbangcle_crypto_tool.so 0x0222c] [20021fd6] 0x1200222c: "br x17" x17=0x1218bac0Invalid address 0x12052000 passed to free: value not allocated
[crash]A/libc: Invalid address 0x12052000 passed to free: value not allocated

程序是在0x0222c这个位置奔溃的，ida调到对应位置

1
2
3
4
void free(void *p)
{
  free(p);
}

free函数，可以往上一点调到调用它的位置，0x048d8，

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
void __fastcall check_package_name(__int64 a1)
{
  char *pkgname; // [xsp+28h] [xbp+28h]

  if ( aComZhihuAndroi[0] )
  {
    pkgname = get_pkgname(a1);
    if ( !strcmp(aComZhihuAndroi, pkgname) )
      dword_20024 = 1;
    if ( pkgname )
      free(pkgname);
  }
  else
  {
    dword_20024 = 1;
  }
}

直接在 0x48d8 调转到free那里把指令改为npo，就不会执行了。

1
2
3
4
5
6
7
public void patch() {
    try (Keystone keystone = new Keystone(KeystoneArchitecture.Arm64, KeystoneMode.LittleEndian);) {
        KeystoneEncoded encoded = keystone.assemble("nop");
        byte[] patchCode = encoded.getMachineCode();
        emulator.getMemory().pointer(module.base + 0x48d8).write(patchCode);
    }
}

很顺利不用补环境直接跑出来了结果

1
result: 0f02c75267dd7becc6b32f941837721f6f89610d4c49c3b5a8ddd649767e953de0a02e505b8e684fb5654137c266f12e

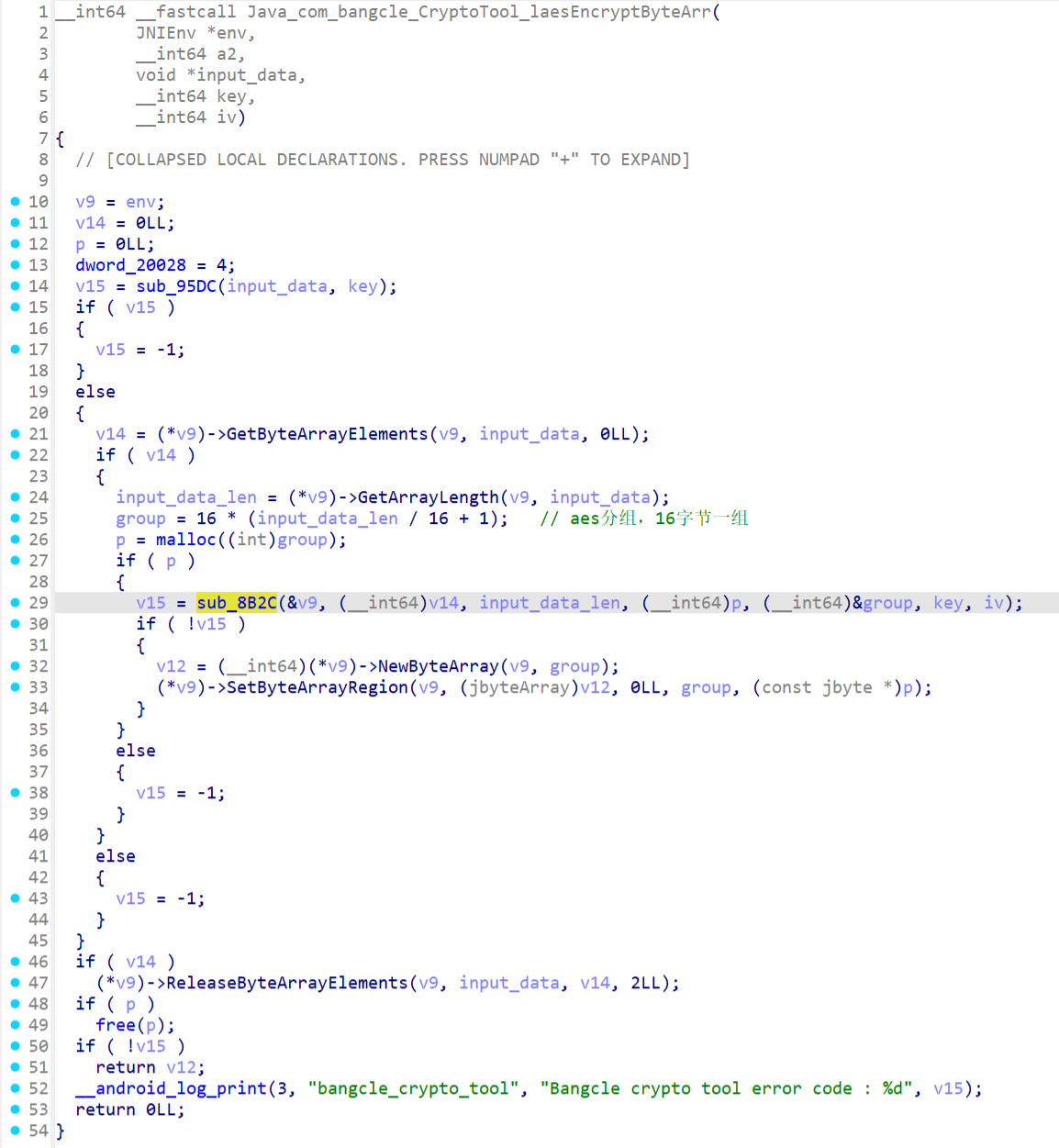

开始ida分析函数

ida分析

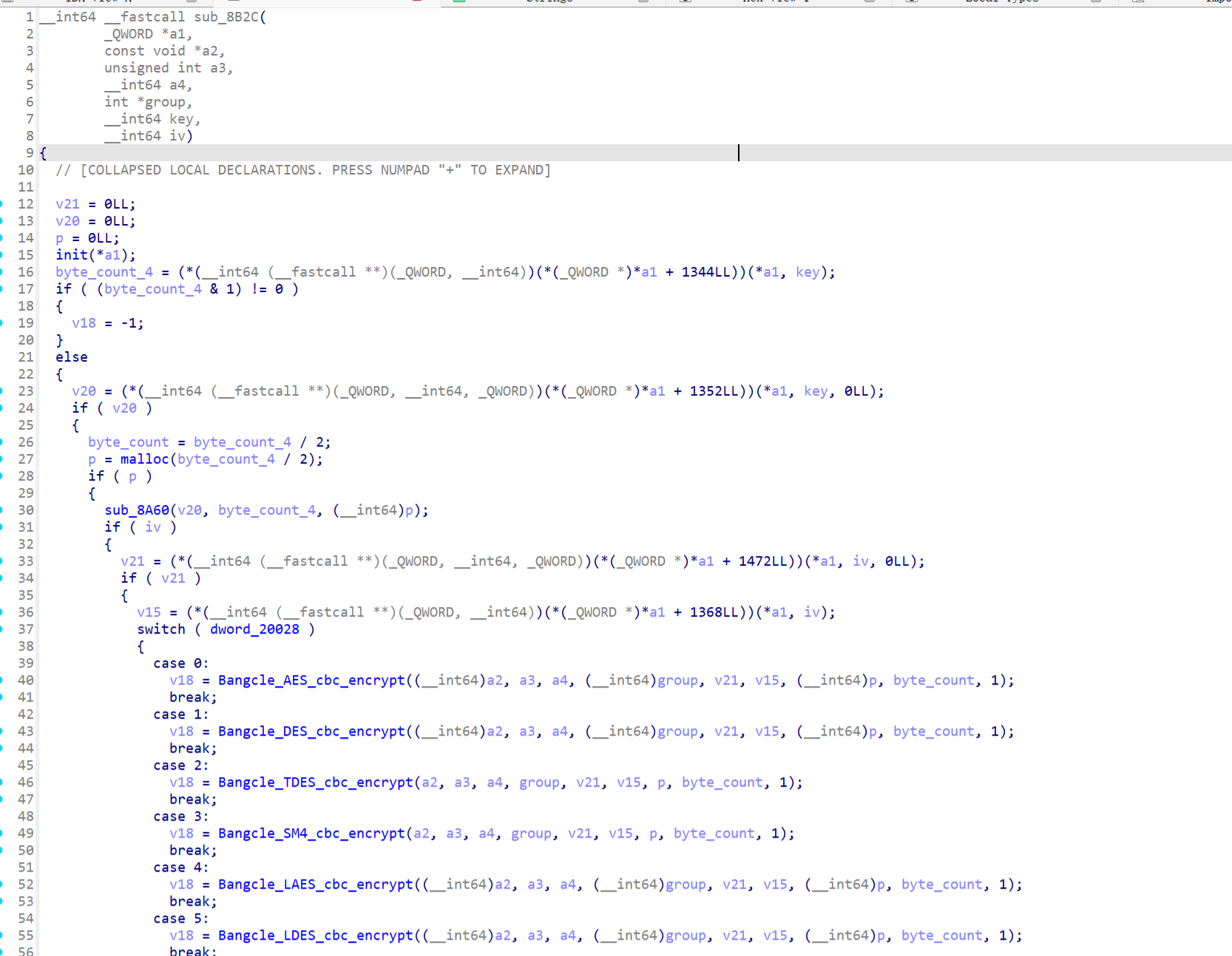

整个函数看下来，只有 sub_8B2C 这个函数最可疑跟进查看


好多aes加密相关的函数，怎么判断程序调用了哪个

记录函数对内存的访问以及发起访问的地址（PC指针），绘制成折线图，可以看函数的调用情况

使用Unidbg的ReadHook，监控这个函数的地址范围

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
public void traceAESRead() {
    ReadHook readHook = new ReadHook() {
        @Override
        public void hook(Backend backend, long address, int size, Object user) {
            int now = emulator.getBackend().reg_read(Arm64Const.UC_ARM64_REG_PC).intValue();
            if((now > module.base) & (now < (module.base + module.size))){
                System.out.println(now - module.base);
            }
        }
        @Override
        public void onAttach(UnHook unHook) {}

        @Override
        public void detach() {}
    };
    emulator.getBackend().hook_add_new(readHook, module.base+0x8b2c, module.base+module.size+0x9080, null);
}

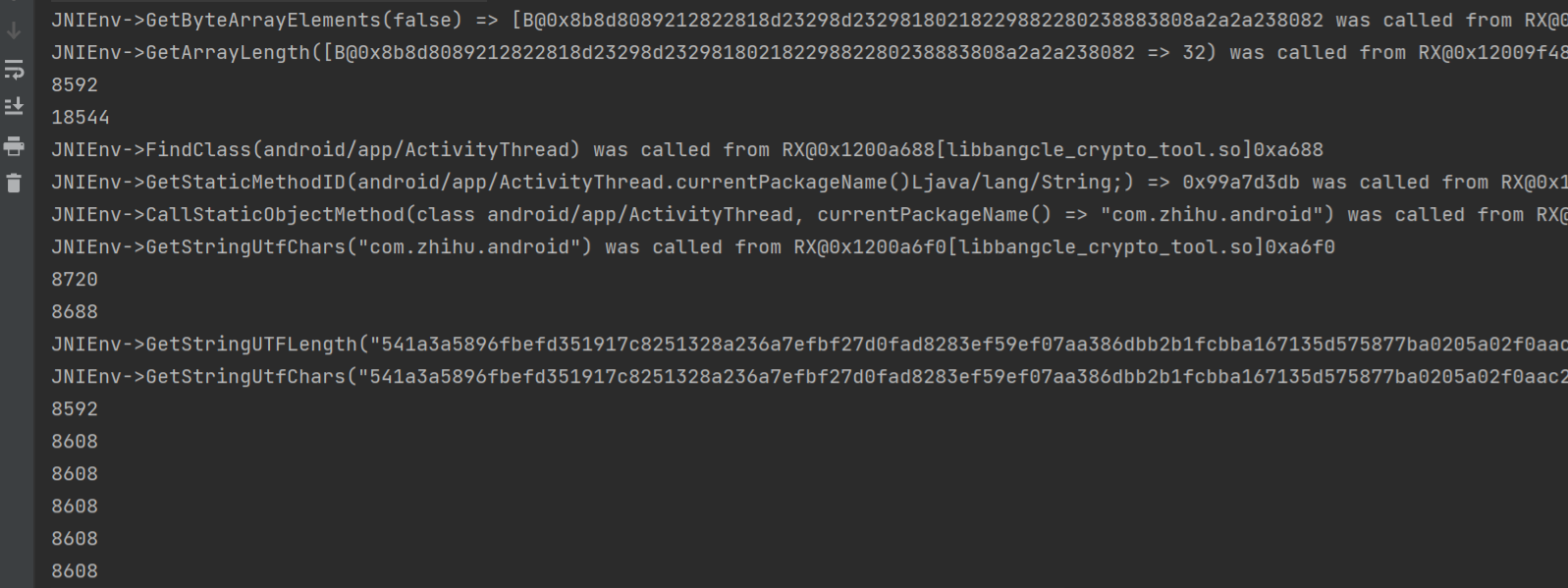

trade函数放在调用函数前执行，将打印出来的地址放到一个文件里，用python执行


1
2
3
4
5
6
7
8
9
10
import matplotlib.pyplot as plt
import numpy

input = numpy.loadtxt("trace.txt", int)

plt.plot(range(len(input)), input)
# 限制Y
plt.ylim(23500,29000)
plt.plot(range(len(input)), input)
plt.show()

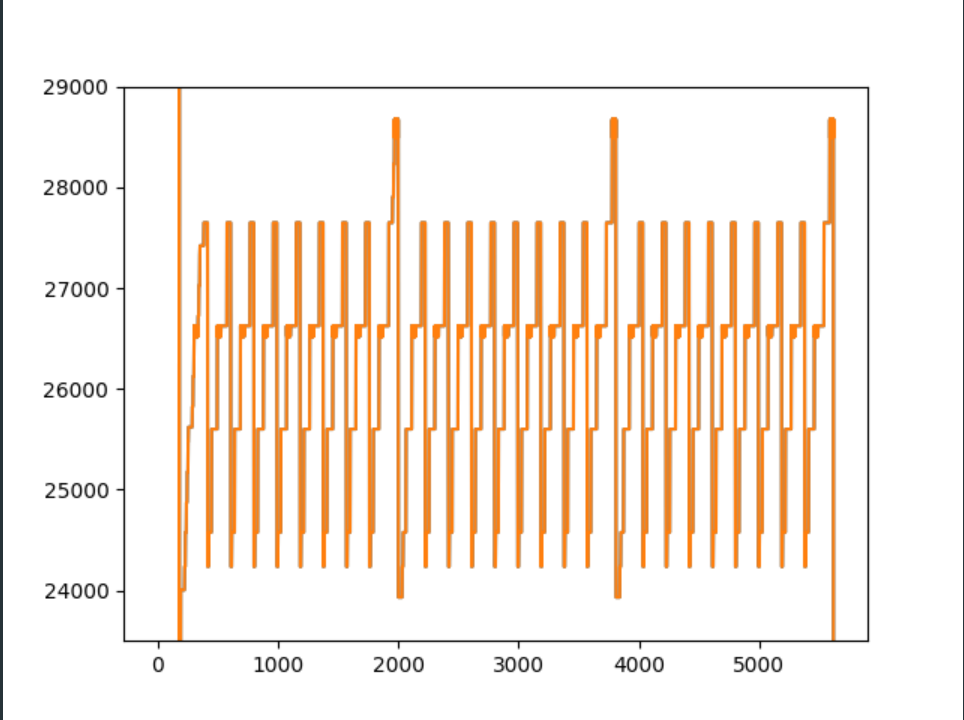

三次分组，每次分组执行都一样10轮调用，跳到24000即 0x5dc0 的位置


调用的函数是 Bangcle_WB_LAES_encrypt ，这里就是aes的加密逻辑了，查找引用看参数来源

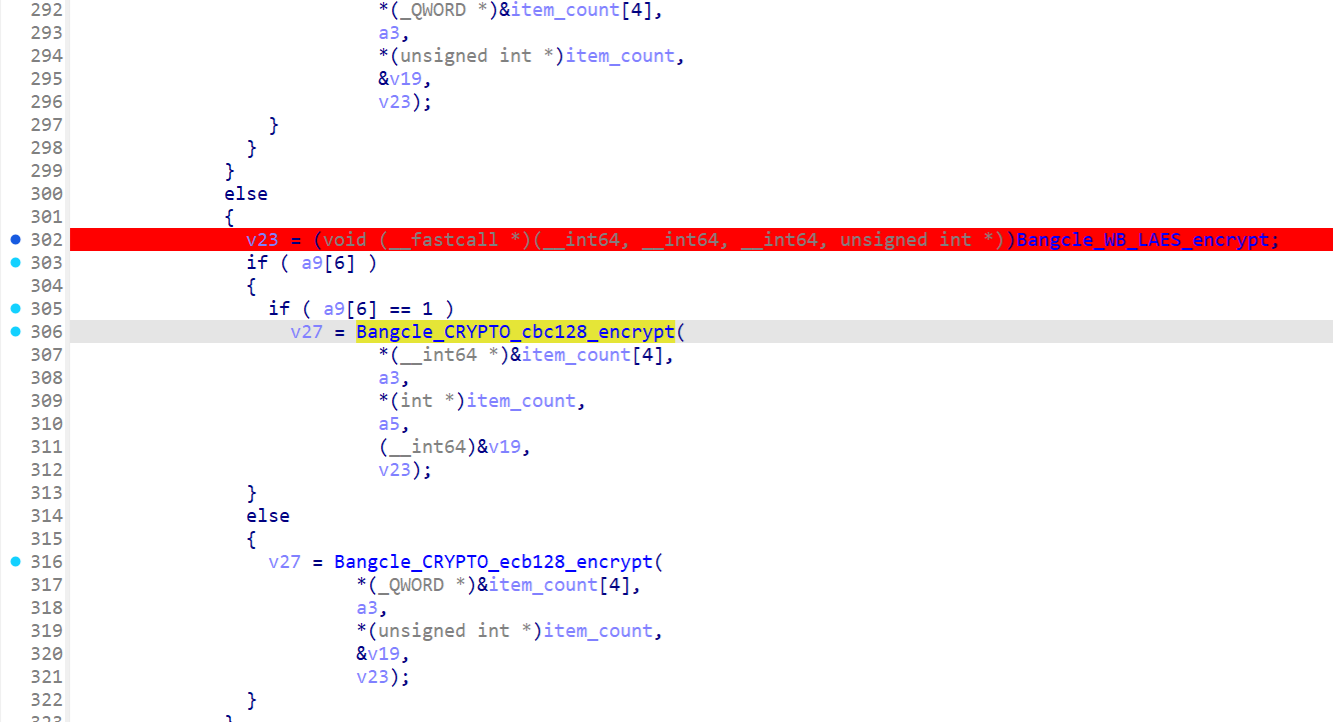

把 Bangcle_WB_LAES_encrypt; 作为参数传给了 Bangcle_CRYPTO_cbc128_encrypt，

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
__int64 __fastcall Bangcle_CRYPTO_cbc128_encrypt(
        __int64 input_data,
        __int64 buff,
        int input_data_len,
        __int64 iv,
        __int64 key,
        void (__fastcall *Bangcle_WB_LAES_encrypt)(__int64, __int64, __int64, unsigned int *))
{
  unsigned int v12; // [xsp+4Ch] [xbp+4Ch] BYREF
  __int64 iv_1; // [xsp+50h] [xbp+50h]
  int i; // [xsp+5Ch] [xbp+5Ch]

  v12 = 0;
  iv_1 = iv;
  while ( input_data_len > 15 )
  {
    for ( i = 0; i <= 15; ++i )
      *(_BYTE *)(buff + i) = *(_BYTE *)(input_data + i) ^ *(_BYTE *)(iv_1 + i);
    Bangcle_WB_LAES_encrypt(buff, buff, key, &v12);
    iv_1 = buff;
    input_data_len -= 16;
    input_data += 16LL;
    buff += 16LL;
  }
  return v12;
}

unidbg调试函数

使用unidbg对 Bangcle_CRYPTO_cbc128_encrypt 进行hook查看参数

参数一跟我们一开始前面的明文hex对比
8b8d8089212822818d23298d23298180218229882280238883808a2a2a238082

后面填充了16字节的 9b，这里填充是固定的，有兴趣的可以自己探索

1
2
3
4
5
6
7
8
9
10
11
12
13
mx0

>-----------------------------------------------------------------------------<
[01:24:35 310]x0=RW@0x12353060, md5=630d2fa2c2528055ad2374d1d4f9419b, hex=8b8d8089212822818d23298d23298180218229882280238883808a2a2a2380829b9b9b9b9b9b9b9b9b9b9b9b9b9b9b9b00000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000
size: 112
0000: 8B 8D 80 89 21 28 22 81 8D 23 29 8D 23 29 81 80    ....!("..#).#)..
0010: 21 82 29 88 22 80 23 88 83 80 8A 2A 2A 23 80 82    !.).".#....**#..
0020: 9B 9B 9B 9B 9B 9B 9B 9B 9B 9B 9B 9B 9B 9B 9B 9B    ................
0030: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00    ................
0040: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00    ................
0050: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00    ................
0060: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00    ................
^-----------------------------------------------------------------------------^

参数二是空的，用来存放结果的

参数三是 0x30，明文填充后的长度

参数四是 iv

1
2
3
4
5
6
7
8
9
10
11
12
13
mx3

>-----------------------------------------------------------------------------<
[01:34:12 007]x3=RW@0x12054000[libc++.so]0x4000, md5=d2b01352c3f52a790b79eb18ddc8938c, hex=99303a3a32343a3992923a3b3a999292000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000
size: 112
0000: 99 30 3A 3A 32 34 3A 39 92 92 3A 3B 3A 99 92 92    .0::24:9..:;:...
0010: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00    ................
0020: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00    ................
0030: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00    ................
0040: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00    ................
0050: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00    ................
0060: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00    ................
^-----------------------------------------------------------------------------^

参数五看不出是啥，也没跟key对应，需要在往上看来源，这里注意参数五出来的是指针，需要打印指针的内存

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
m0x123580c0 176

>-----------------------------------------------------------------------------<
[01:56:59 956]RW@0x123580c0, md5=070a52023ae19a58ba6af416776beb5f, hex=8cc1bbc96bc566b80528b0777044afe8475bb7b8d7f563bb1d906c77817f05f1ee0c4b61cf4fd3619a744038a4b0f887036de86538dacfb2d951843df75d3cf5fb0ead3988157a3f2a2211ba9c18e9fe73d212241f0183a05d757ea66e80f0d8260b251051b1d44bb07252166917c70eecdd96f9a9d03d09ae5748d5002b811a35457064266861a73891d7fdc5f1286f87a52a68d300c4019fede9401c704ad4edd9095dc91e3780123c14cbb663a1e4
size: 176
0000: 8C C1 BB C9 6B C5 66 B8 05 28 B0 77 70 44 AF E8    ....k.f..(.wpD..
0010: 47 5B B7 B8 D7 F5 63 BB 1D 90 6C 77 81 7F 05 F1    G[....c...lw....
0020: EE 0C 4B 61 CF 4F D3 61 9A 74 40 38 A4 B0 F8 87    ..Ka.O.a.t@8....
0030: 03 6D E8 65 38 DA CF B2 D9 51 84 3D F7 5D 3C F5    .m.e8....Q.=.]<.
0040: FB 0E AD 39 88 15 7A 3F 2A 22 11 BA 9C 18 E9 FE    ...9..z?*"......
0050: 73 D2 12 24 1F 01 83 A0 5D 75 7E A6 6E 80 F0 D8    s..$....]u~.n...
0060: 26 0B 25 10 51 B1 D4 4B B0 72 52 16 69 17 C7 0E    &.%.Q..K.rR.i...
0070: EC DD 96 F9 A9 D0 3D 09 AE 57 48 D5 00 2B 81 1A    ......=..WH..+..
0080: 35 45 70 64 26 68 61 A7 38 91 D7 FD C5 F1 28 6F    5Epd&ha.8.....(o
0090: 87 A5 2A 68 D3 00 C4 01 9F ED E9 40 1C 70 4A D4    ..*h.......@.pJ.
00A0: ED D9 09 5D C9 1E 37 80 12 3C 14 CB B6 63 A1 E4    ...]..7..<...c..
^-----------------------------------------------------------------------------^

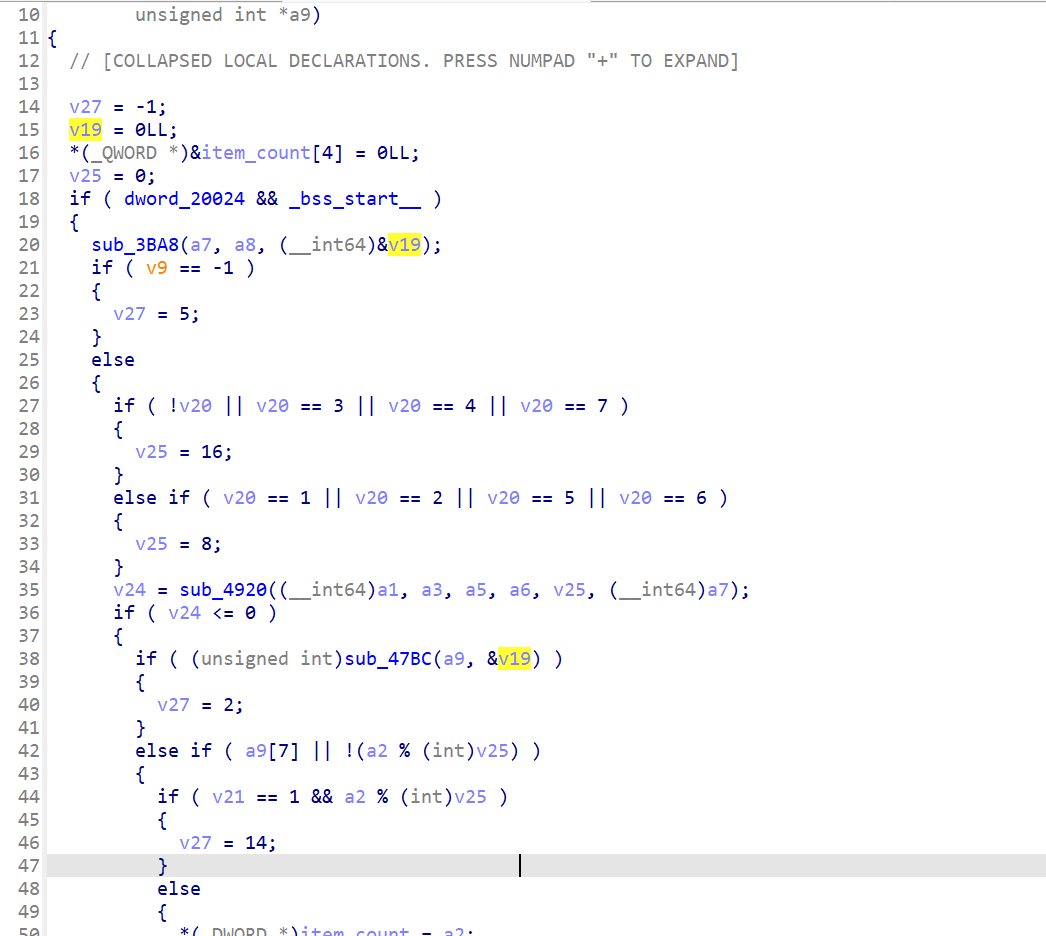

就sub_3BA8和sub_47BC调用了v19，既上面的参数五

其实是在 sub_3BA8 对key做了一个异或

1
2
3
for ( i = 4; i < str_data_len; ++i )
    *(_BYTE *)(*(_QWORD *)buff + i - 4LL) = str_data[i] ^ str_data[i % 3];
*(_DWORD *)(buff + 8) = str_data_len - 4;

key的长度是180字节，这里出来的结果是176个字节，所以这里就是密钥编排了，可以对这个函数hook，在返回前打印，因为key是固定的，所以可以直接拿编排后的使用。这里出来的结果就是上面的参数五了

好了，参数来源有了，回到上面继续看 Bangcle_CRYPTO_cbc128_encrypt 的逻辑，明文长度填充后是48，刚好3个分组，每次明文加密后会作为iv进行下一分组的加密

1
2
3
4
5
6
7
8
9
10
11
v12 = 0;
iv_1 = iv;
while ( input_data_len > 15 ){
    for ( i = 0; i <= 15; ++i )
      *(_BYTE *)(buff + i) = *(_BYTE *)(input_data + i) ^ *(_BYTE *)(iv_1 + i);
    Bangcle_WB_LAES_encrypt(buff, buff, key, &v12);
    iv_1 = buff;
    input_data_len -= 16;
    input_data += 16LL;
    buff += 16LL;
}

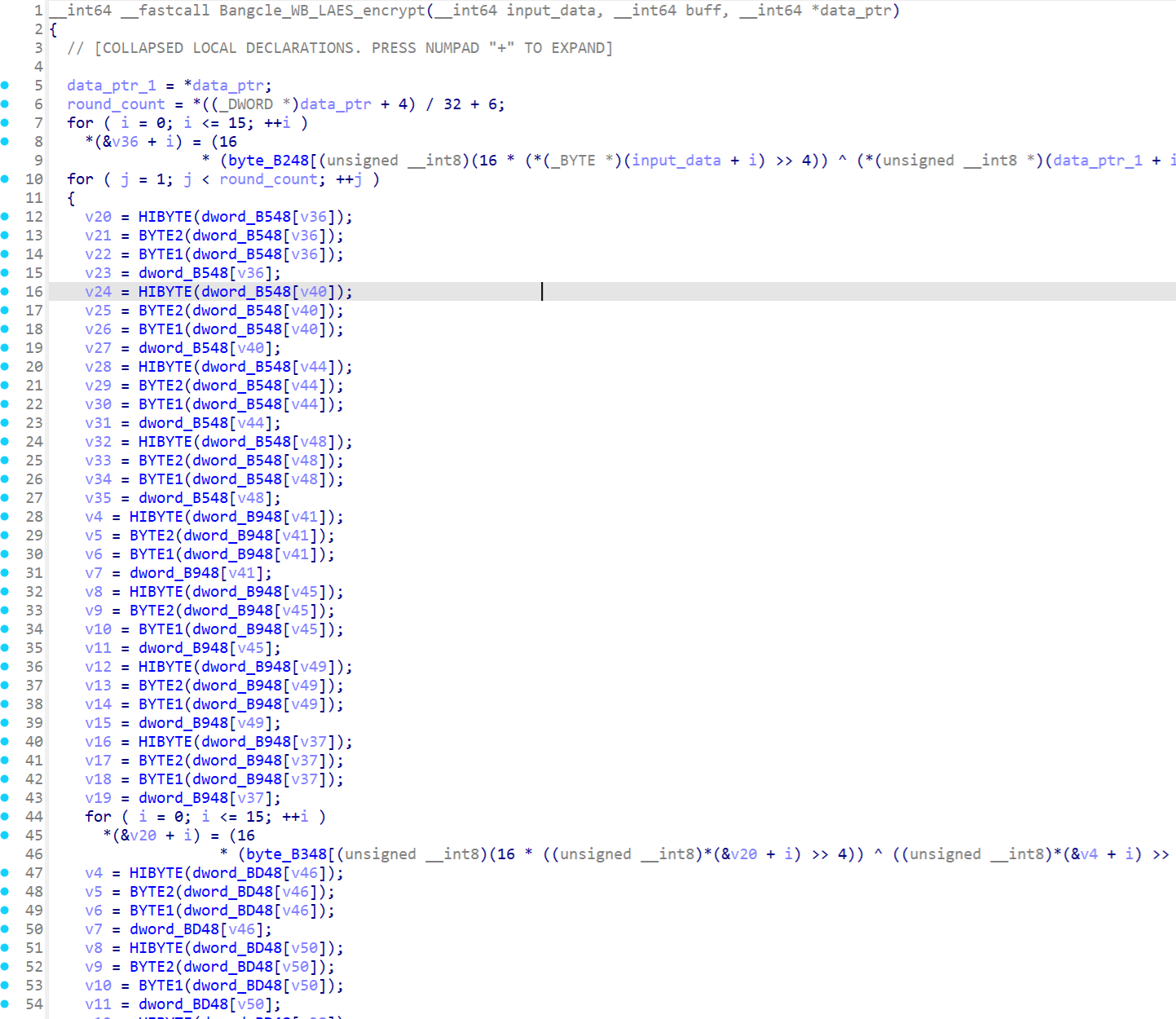

跟进Bangcle_WB_LAES_encrypt

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
__int64 __fastcall Bangcle_WB_LAES_encrypt(__int64 input_data, __int64 buff, __int64 *key_state)
{
  // [COLLAPSED LOCAL DECLARATIONS. PRESS NUMPAD "+" TO EXPAND]

  key_state_1 = *key_state;
  round_count = *((_DWORD *)key_state + 4) / 32 + 6;
  for ( i = 0; i <= 15; ++i )
    *(&v36 + i) = (16
                 * (byte_B248[(unsigned __int8)(16 * (*(_BYTE *)(input_data + i) >> 4)) ^ (*(unsigned __int8 *)(key_state_1 + i) >> 4) & 0xF] >> 4)) ^ (byte_B248[(unsigned __int8)(16 * *(_BYTE *)(input_data + i)) ^ *(_BYTE *)(key_state_1 + i) & 0xF] >> 4);
  for ( j = 1; j < round_count; ++j )
  {
    v20 = HIBYTE(dword_B548[v36]);
    v21 = BYTE2(dword_B548[v36]);
    v22 = BYTE1(dword_B548[v36]);
    v23 = dword_B548[v36];
    v24 = HIBYTE(dword_B548[v40]);
    v25 = BYTE2(dword_B548[v40]);
    v26 = BYTE1(dword_B548[v40]);
    v27 = dword_B548[v40];
    v28 = HIBYTE(dword_B548[v44]);
    v29 = BYTE2(dword_B548[v44]);
    v30 = BYTE1(dword_B548[v44]);
    v31 = dword_B548[v44];
    v32 = HIBYTE(dword_B548[v48]);
    v33 = BYTE2(dword_B548[v48]);
    v34 = BYTE1(dword_B548[v48]);
    v35 = dword_B548[v48];
    v4 = HIBYTE(dword_B948[v41]);
    v5 = BYTE2(dword_B948[v41]);
    v6 = BYTE1(dword_B948[v41]);
    v7 = dword_B948[v41];
    v8 = HIBYTE(dword_B948[v45]);
    v9 = BYTE2(dword_B948[v45]);
    v10 = BYTE1(dword_B948[v45]);
    v11 = dword_B948[v45];
    v12 = HIBYTE(dword_B948[v49]);
    v13 = BYTE2(dword_B948[v49]);
    v14 = BYTE1(dword_B948[v49]);
    v15 = dword_B948[v49];
    v16 = HIBYTE(dword_B948[v37]);
    v17 = BYTE2(dword_B948[v37]);
    v18 = BYTE1(dword_B948[v37]);
    v19 = dword_B948[v37];
    for ( i = 0; i <= 15; ++i )
      *(&v20 + i) = (16
                   * (byte_B348[(unsigned __int8)(16 * ((unsigned __int8)*(&v20 + i) >> 4)) ^ ((unsigned __int8)*(&v4 + i) >> 4) & 0xF] >> 4)) ^ (byte_B348[(unsigned __int8)(16 * *(&v20 + i)) ^ *(&v4 + i) & 0xF] >> 4);
    v4 = HIBYTE(dword_BD48[v46]);
    v5 = BYTE2(dword_BD48[v46]);
    v6 = BYTE1(dword_BD48[v46]);
    v7 = dword_BD48[v46];
    v8 = HIBYTE(dword_BD48[v50]);
    v9 = BYTE2(dword_BD48[v50]);
    v10 = BYTE1(dword_BD48[v50]);
    v11 = dword_BD48[v50];
    v12 = HIBYTE(dword_BD48[v38]);
    v13 = BYTE2(dword_BD48[v38]);
    v14 = BYTE1(dword_BD48[v38]);
    v15 = dword_BD48[v38];
    v16 = HIBYTE(dword_BD48[v42]);
    v17 = BYTE2(dword_BD48[v42]);
    v18 = BYTE1(dword_BD48[v42]);
    v19 = dword_BD48[v42];
    for ( i = 0; i <= 15; ++i )
      *(&v20 + i) = (16
                   * (byte_B348[(unsigned __int8)(16 * ((unsigned __int8)*(&v20 + i) >> 4)) ^ ((unsigned __int8)*(&v4 + i) >> 4) & 0xF] >> 4)) ^ (byte_B348[(unsigned __int8)(16 * *(&v20 + i)) ^ *(&v4 + i) & 0xF] >> 4);
    v4 = HIBYTE(dword_C148[v51]);
    v5 = BYTE2(dword_C148[v51]);
    v6 = BYTE1(dword_C148[v51]);
    v7 = dword_C148[v51];
    v8 = HIBYTE(dword_C148[v39]);
    v9 = BYTE2(dword_C148[v39]);
    v10 = BYTE1(dword_C148[v39]);
    v11 = dword_C148[v39];
    v12 = HIBYTE(dword_C148[v43]);
    v13 = BYTE2(dword_C148[v43]);
    v14 = BYTE1(dword_C148[v43]);
    v15 = dword_C148[v43];
    v16 = HIBYTE(dword_C148[v47]);
    v17 = BYTE2(dword_C148[v47]);
    v18 = BYTE1(dword_C148[v47]);
    v19 = dword_C148[v47];
    for ( i = 0; i <= 15; ++i )
      *(&v20 + i) = (16
                   * (byte_B348[(unsigned __int8)(16 * ((unsigned __int8)*(&v20 + i) >> 4)) ^ ((unsigned __int8)*(&v4 + i) >> 4) & 0xF] >> 4)) ^ (byte_B348[(unsigned __int8)(16 * *(&v20 + i)) ^ *(&v4 + i) & 0xF] >> 4);
    for ( i = 0; i <= 15; ++i )
      *(&v36 + i) = (16
                   * (byte_B348[(unsigned __int8)(16 * ((unsigned __int8)*(&v20 + i) >> 4)) ^ (*(unsigned __int8 *)(key_state_1 + 16 * j + i) >> 4) & 0xF] >> 4)) ^ (byte_B348[(unsigned __int8)(16 * *(&v20 + i)) ^ *(_BYTE *)(key_state_1 + 16 * j + i) & 0xF] >> 4);
  }
  v20 = byte_C548[v36];
  v21 = byte_C548[v41];
  v22 = byte_C548[v46];
  v23 = byte_C548[v51];
  v24 = byte_C548[v40];
  v25 = byte_C548[v45];
  v26 = byte_C548[v50];
  v27 = byte_C548[v39];
  v28 = byte_C548[v44];
  v29 = byte_C548[v49];
  v30 = byte_C548[v38];
  v31 = byte_C548[v43];
  v32 = byte_C548[v48];
  v33 = byte_C548[v37];
  v34 = byte_C548[v42];
  v35 = byte_C548[v47];
  for ( i = 0; ; ++i )
  {
    result = (unsigned int)i;
    if ( i > 15 )
      break;
    *(_BYTE *)(buff + i) = (16
                          * (byte_B448[(unsigned __int8)(16 * ((unsigned __int8)*(&v20 + i) >> 4)) ^ (*(unsigned __int8 *)(key_state_1 + 16 * j + i) >> 4) & 0xF] >> 4)) ^ (byte_B448[(unsigned __int8)(16 * *(&v20 + i)) ^ *(_BYTE *)(key_state_1 + 16 * j + i) & 0xF] >> 4);
  }
  return result;
}

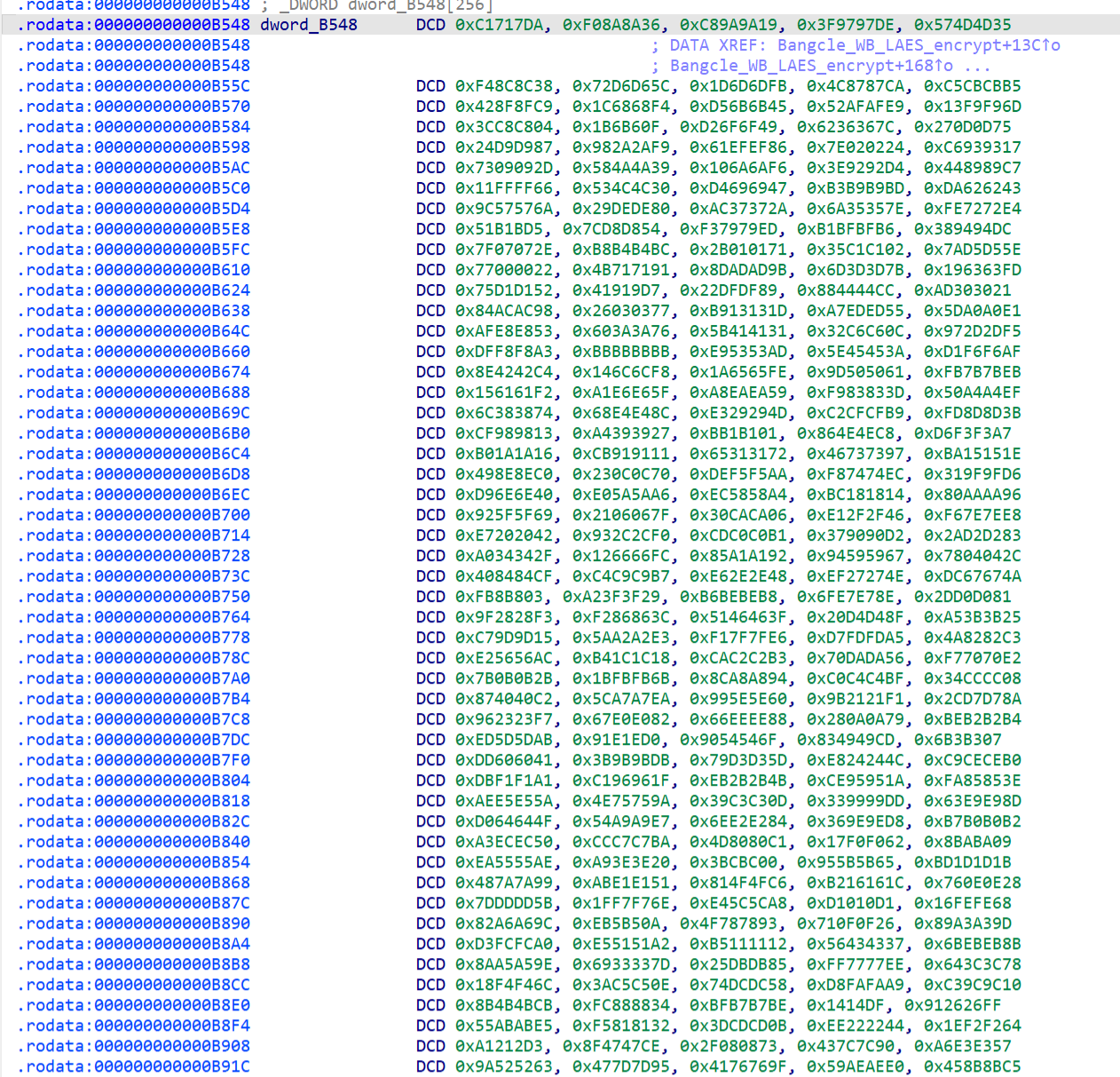

看到里面的dword_B548，dword_B948等等都是一些大表


在还原算法时候可以直接拿来用。

既然 Bangcle_WB_LAES_encrypt 是加密的地方了，那应该或多或少有aes影子


可以先看以下round_count是不是真的是10

round_count = *((_DWORD *)data_ptr + 4) / 32 + 6;

用unidbg查看，这里是_DWORD类型，每4个字节一组，查看第4*4的字节位置截取4字节

1
2
3
4
5
6
7
8
9
10
11
12
13
mx2

>-----------------------------------------------------------------------------<
[02:20:49 310]x2=unidbg@0xe4fff530, md5=70dda4f32687556b499d15b8cca17ed6, hex=c080351200000000b0000000040000008000000001000000000000000000000000000000000000007c5d00120000000000000000000000001000000030000000603035120000000000000000ffffffffe0f5ffe400000000000000000000000010f6ffe4000000004c8f001200000000
size: 112
0000: C0 80 35 12 00 00 00 00 B0 00 00 00 04 00 00 00    ..5.............
0010: 80 00 00 00 01 00 00 00 00 00 00 00 00 00 00 00    ................
0020: 00 00 00 00 00 00 00 00 7C 5D 00 12 00 00 00 00    ........|]......
0030: 00 00 00 00 00 00 00 00 10 00 00 00 30 00 00 00    ............0...
0040: 60 30 35 12 00 00 00 00 00 00 00 00 FF FF FF FF    `05.............
0050: E0 F5 FF E4 00 00 00 00 00 00 00 00 00 00 00 00    ................
0060: 10 F6 FF E4 00 00 00 00 4C 8F 00 12 00 00 00 00    ........L.......
^-----------------------------------------------------------------------------^

80 00 00 00 就是我们要的，记得转为小端序 00 00 00 80，对应的十进制是128，计算结果是 128/32+6 = 10

for ( j = 1; j < round_count; ++j ) 刚好9轮

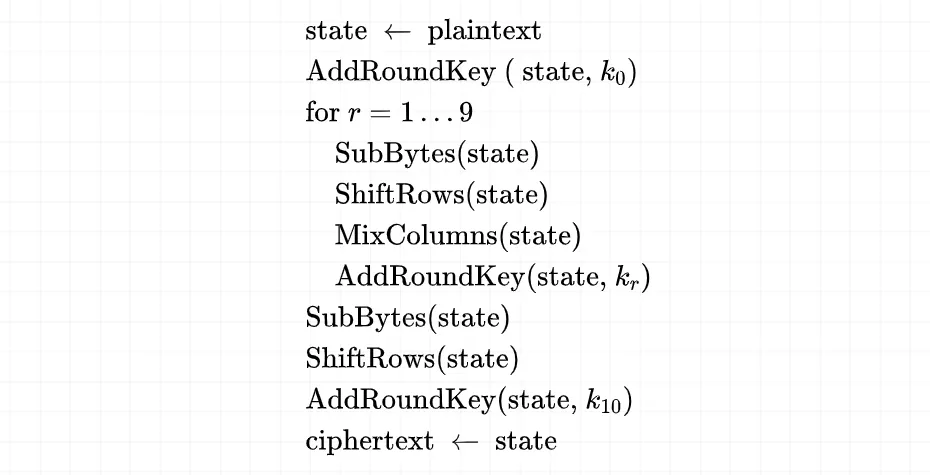

整个看下来多多少少能看出来，一开始就使用input_data和key_state进行异或，可以标记为初始轮密钥加

1
2
for ( i = 0; i <= 15; ++i )
    *(&v36 + i) = (16 * (byte_B248[(unsigned __int8)(16 * (*(_BYTE *)(input_data + i) >> 4)) ^ (*(unsigned __int8 *)(key_state_1 + i) >> 4) & 0xF] >> 4)) ^ (byte_B248[(unsigned __int8)(16 * *(_BYTE *)(input_data + i)) ^ *(_BYTE *)(key_state_1 + i) & 0xF] >> 4);

每个for循环结束前的异或也是轮密钥加，中间整块就是字节替换，循环左移，列混淆

for循环结束后

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
v20 = byte_C548[v36];
v21 = byte_C548[v41];
v22 = byte_C548[v46];
v23 = byte_C548[v51];
v24 = byte_C548[v40];
v25 = byte_C548[v45];
v26 = byte_C548[v50];
v27 = byte_C548[v39];
v28 = byte_C548[v44];
v29 = byte_C548[v49];
v30 = byte_C548[v38];
v31 = byte_C548[v43];
v32 = byte_C548[v48];
v33 = byte_C548[v37];
v34 = byte_C548[v42];
v35 = byte_C548[v47];

编排后就是 字节替换和循环左移了

1
2
3
4
v36	v40	v44	v48  	v36	v40	v44	v48
v37	v41	v45	v49 ==> v41	v45	v49	v37
v38	v42	v46	v50 	v46	v50	v38	v42
v39	v43	v47	v51		v51	v39	v43	v47

最后结束前就是轮密钥加

这个加密看下来很顺滑，没有混淆过，扔给gpd就能让它给出对应的python代码了。

其中几个点，比如

1
2
3
4
v20 = HIBYTE(dword_B548[v36]);
v21 = BYTE2(dword_B548[v36]);
v22 = BYTE1(dword_B548[v36]);
v23 = dword_B548[v36];

假设一个 <font style="color:rgb(64, 64, 64);">DWORD</font> 的值为 <font style="color:rgb(64, 64, 64);">0xAABBCCDD</font>，它的字节结构如下：

字节位置 字节值
字节 3 AA 最高有效字节
字节 2 BB
字节 1 CC
字节 0 DD 最低有效字节

还有v20,v21,v22等都是连续存储的，通过v20的指针按偏移取后面的值

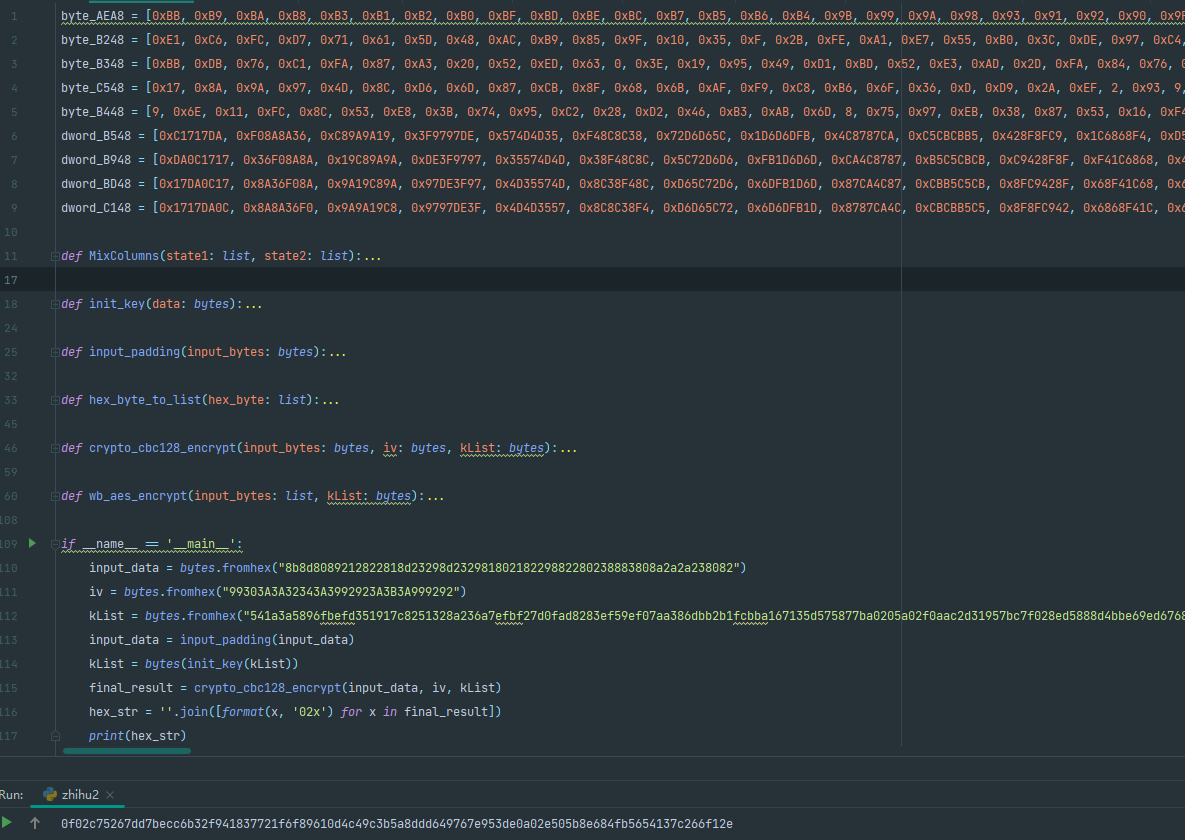

上结果
0f02c75267dd7becc6b32f941837721f6f89610d4c49c3b5a8ddd649767e953de0a02e505b8e684fb5654137c266f12e

跟unidbg跑出来的一样


某乎x-zse-96逆向
posts/34066/
作者
zsk
发布于
2025-03-08 01:12
许可
 评论
  1. 1. 定位
  2. 2. unidng分析
  3. 3. ida分析
  4. 4. unidbg调试函数
