SSL Pinning Bypass
客户端的证书绑定（pinning）。一种情况没有分析，就是客户端并不会默认信任系统根证书目录中的证书，而是在代码里再加一层校验，这就是证书绑定机制——SSL pinning，如果这段代码的校验过不了，那么客户端还是会报证书错误。

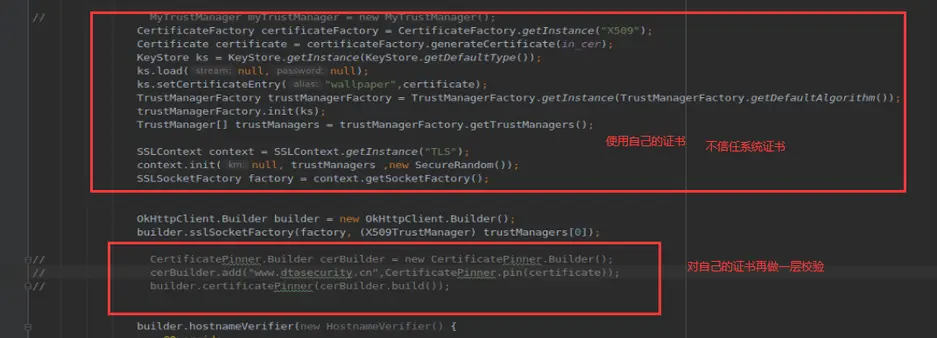

两层校验，
第一种不信任系统证书，使用自己的证书。
第二种在自己证书上再做一层判断
● Https客户端代码校验服务器证书

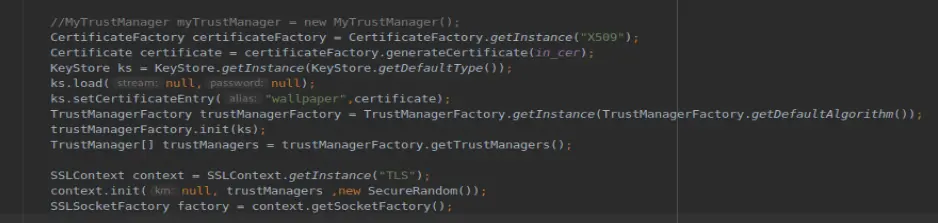

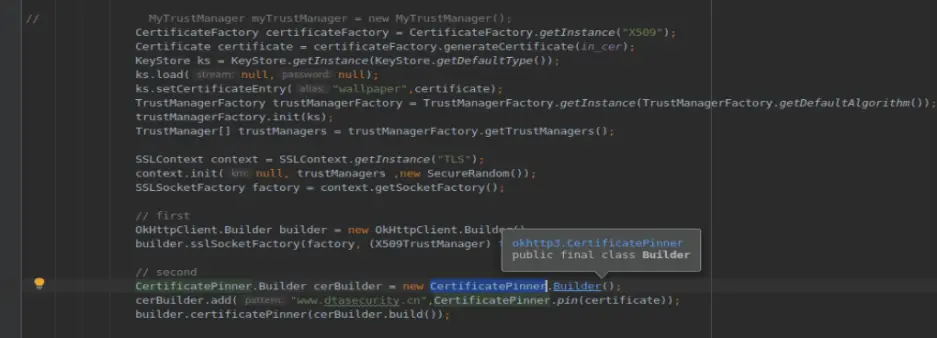

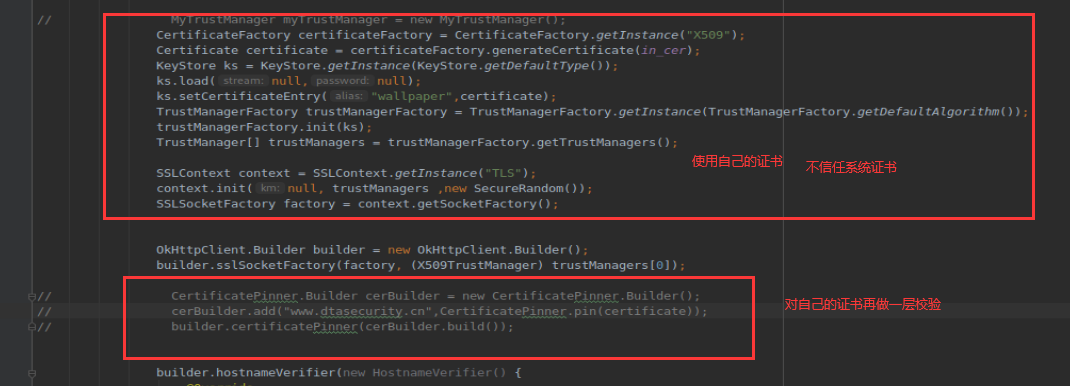

案例是自己配置的证书，不是ca机构签发的。这段代码放了自己的证书，一段检验机制
![image]()

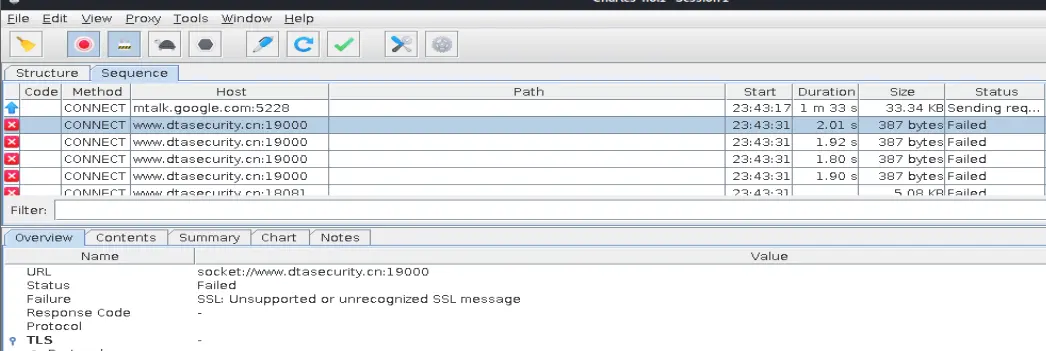

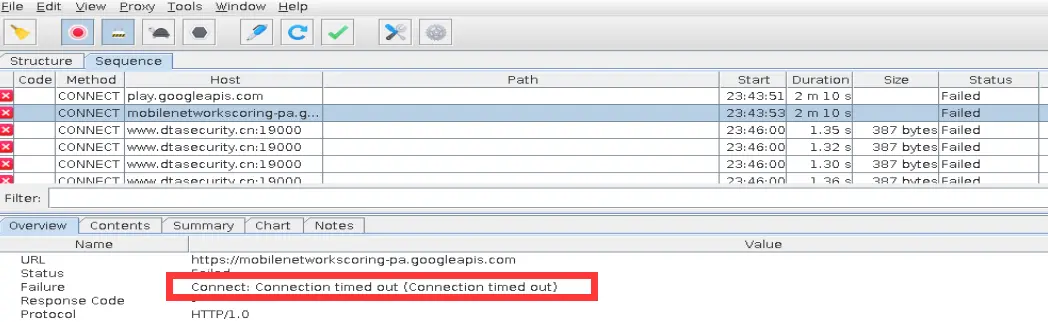

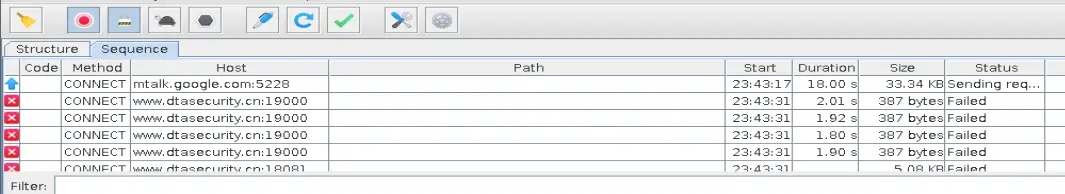

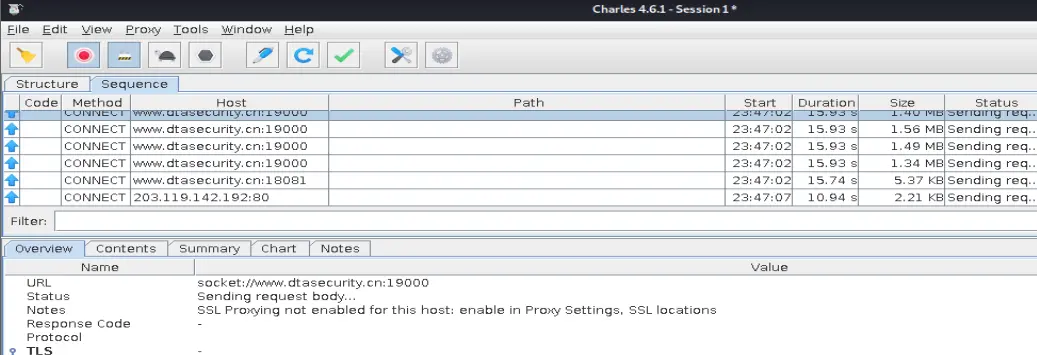

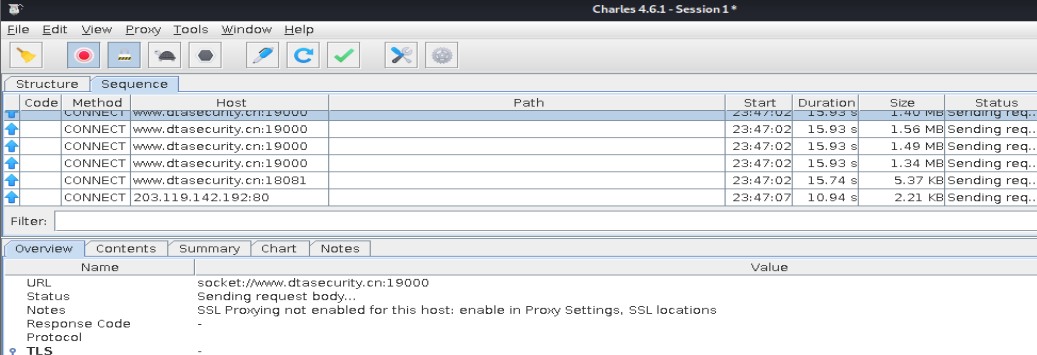

打开charles抓包，抓包失败
![image]()
![image]()

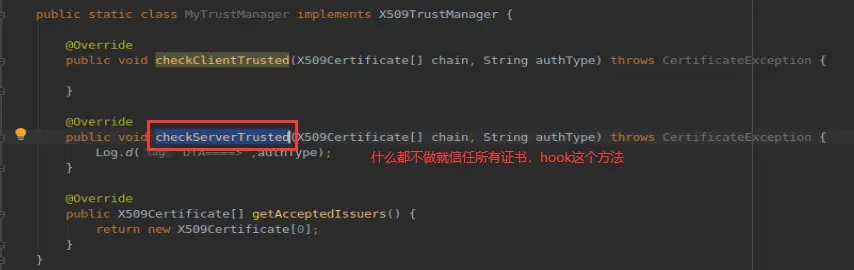

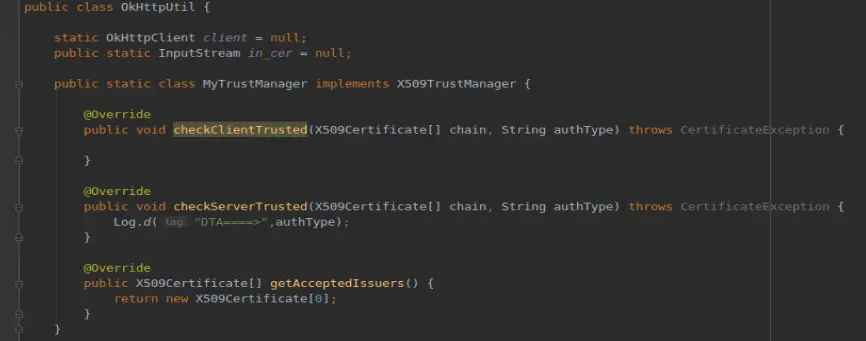

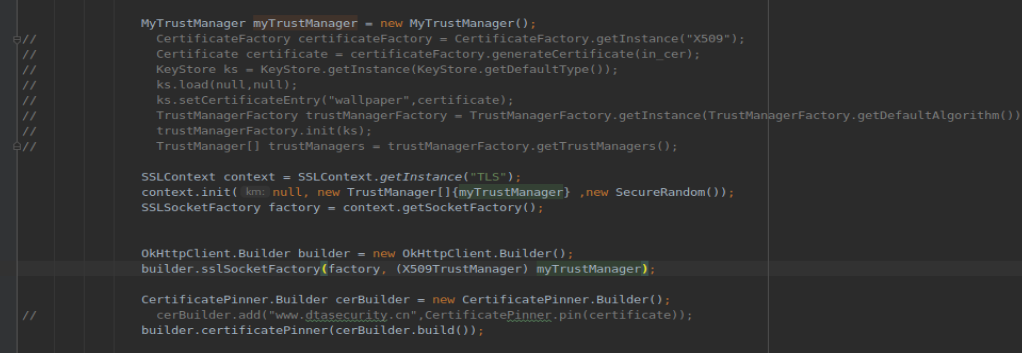

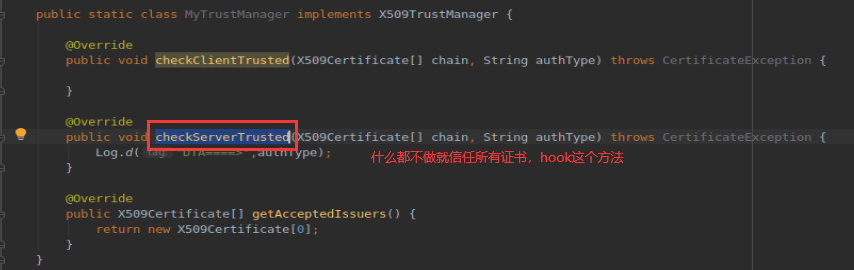

信任所有证书，都为空表示都信任
![image]()
![image]()
![image]()

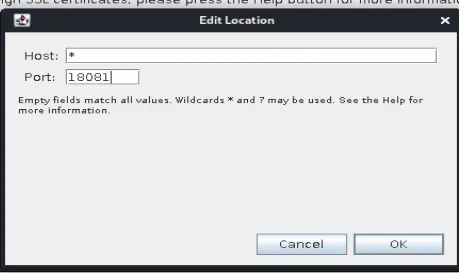

因为图片是https的，修改一下ssl
![image]()
成功抓包
![image]()
让客户端信任系统根证书目录中的证书

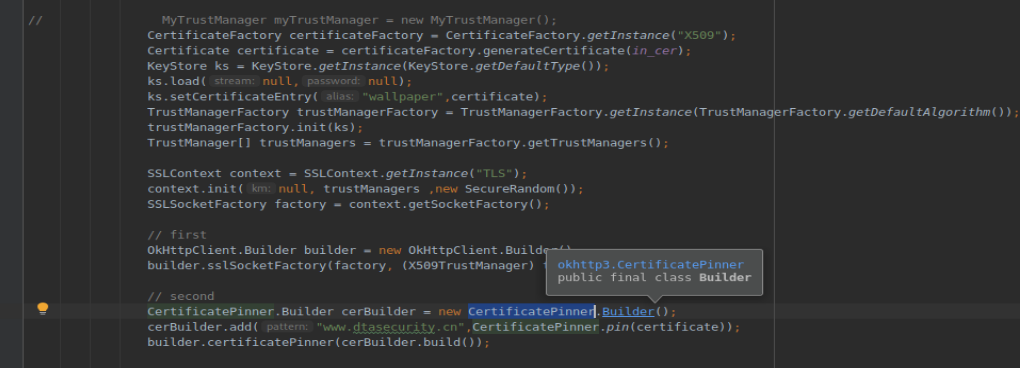

把证书校验重新开起来
![image]()
![image]()
hook住checkServerTrusted，将其所有重载都置空；
使用spawn模式运行
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
| function main(){
Java.perform(function (){
function checkIsImplementeInterFace(clsName, interface_){
try{
var cls = Java.use(clsName)
if(cls.class.isInterface()){
return false
}
if(cls.class != undefined)
if(interface_.class.isAssignableFrom(cls.class)){
return true
}
return false
}catch(e){
return false
}
}
var TrustManagerInterface = Java.use("javax.net.ssl.TrustManager")
Java.use("okhttp3.CertificatePinner").check.overload('java.lang.String', '[Ljava.security.cert.Certificate;').implementation = function(){
console.log("CertificatePinner check called!")
}
Java.use("okhttp3.CertificatePinner").check.overload('java.lang.String', 'java.util.List').implementation = function(){
console.log("CertificatePinner check called!")
}
Java.enumerateLoadedClasses({
onMatch: function(clsName,handle){
if(checkIsImplementeInterFace(clsName,TrustManagerInterface)){
console.log(clsName)
var targetClass = Java.use(clsName)
var len = targetClass["checkServerTrusted"].overloads.length
for (var i = 0; i < len; i++){
targetClass["checkServerTrusted"].overloads[i].implementation = function(){
console.log(clsName + i + "checkServerTrusted Called!")
}
}
}
},
onComplete: function(){
console.log("Search Classes Completed!")
}
})
})
}
setImmediate(main)
|

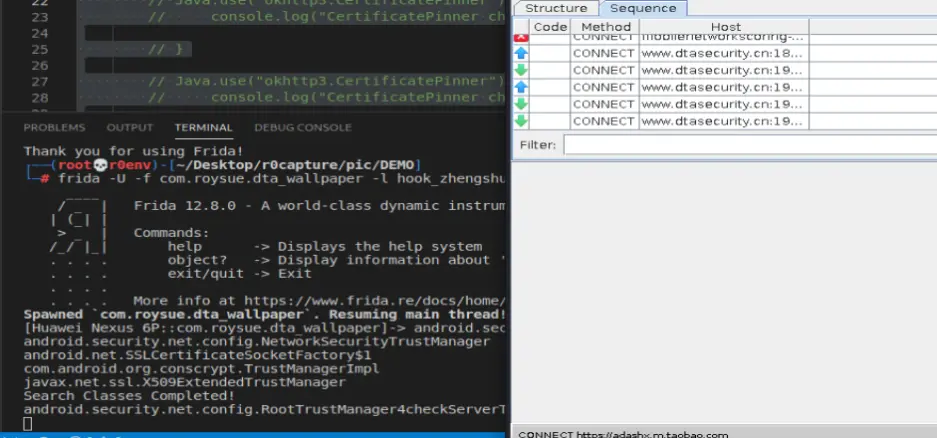

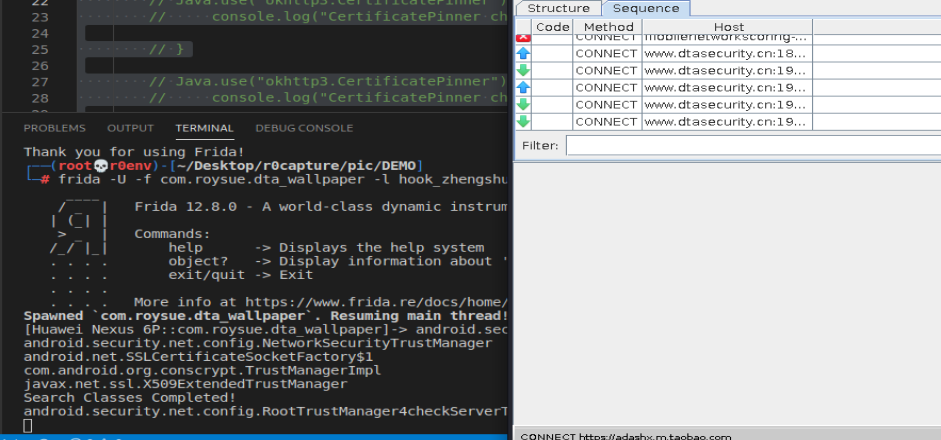

成功抓到包
![image]()
过检验证书
把证书检验开启
![image]()
objection绕过检测
使用objection，直接将SSL pinning给disable掉
1
| android sslpinning disable
|
ssl pinning+服务器检验客户端证书

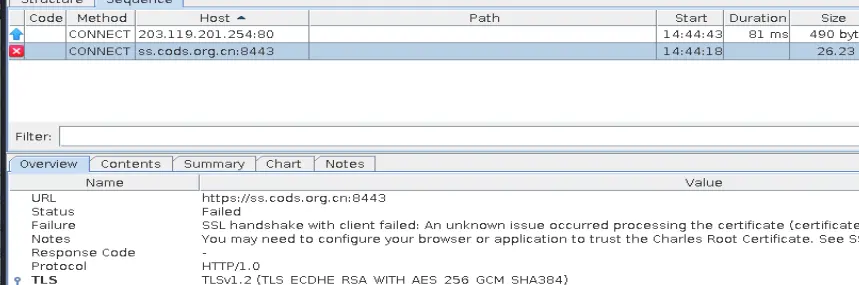

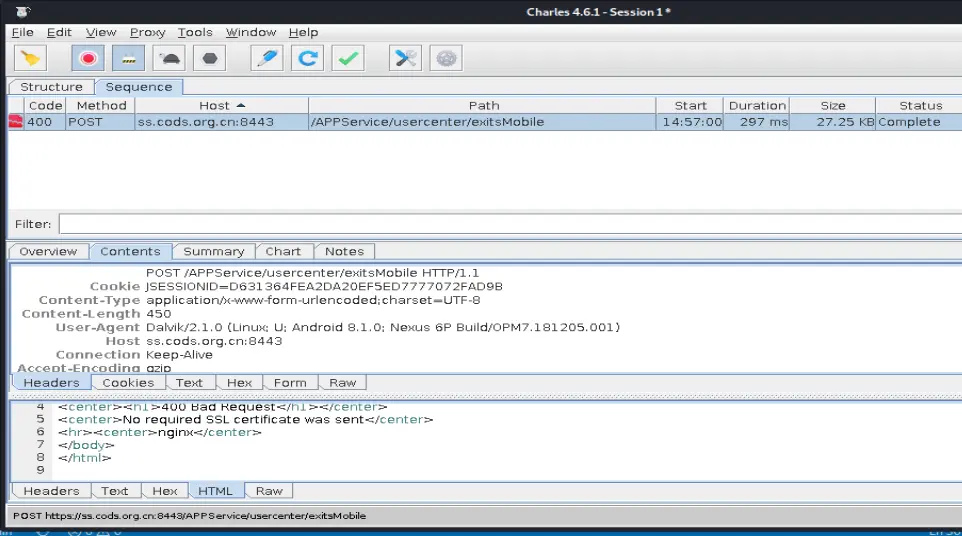

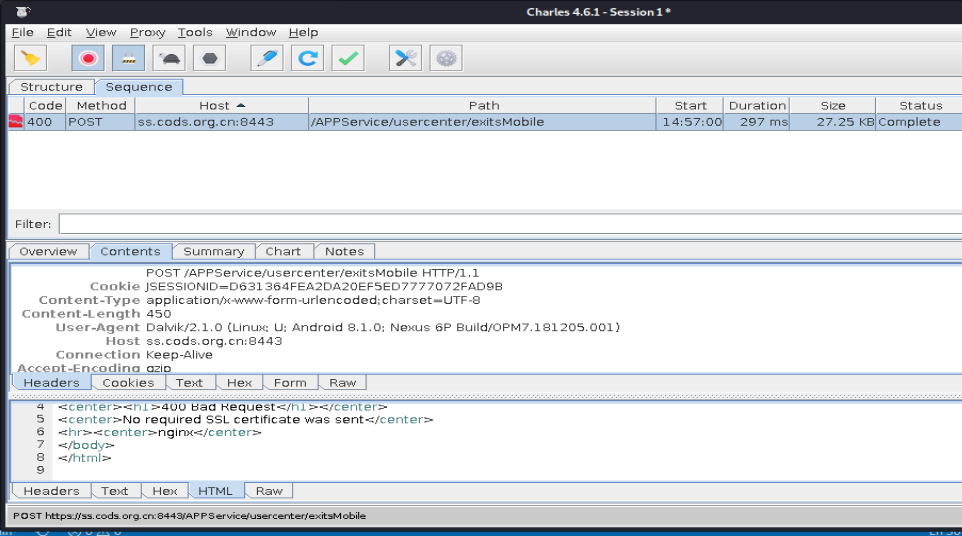

注册页面抓包，证书不信任
![image]()
用frida hook掉他的一些检测，
ssl pinning（hook掉证书验证(自定义证书)）
方式一
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
| function main(){
Java.perform(function (){
function checkIsImplementeInterFace(clsName, interface_){
try{
var cls = Java.use(clsName)
if(cls.class.isInterface()){
return false
}
if(cls.class != undefined)
if(interface_.class.isAssignableFrom(cls.class)){
return true
}
return false
}catch(e){
return false
}
}
var TrustManagerInterface = Java.use("javax.net.ssl.TrustManager")
Java.enumerateLoadedClasses({
onMatch: function(clsName,handle){
if(checkIsImplementeInterFace(clsName,TrustManagerInterface)){
console.log(clsName)
var targetClass = Java.use(clsName)
var len = targetClass["checkServerTrusted"].overloads.length
for (var i = 0; i < len; i++){
targetClass["checkServerTrusted"].overloads[i].implementation = function(){
console.log(clsName + i + "checkServerTrusted Called!")
}
}
}
},
onComplete: function(){
console.log("Search Classes Completed!")
}
})
})
}
setImmediate(main)
|
方式二
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
| function main(){
Java.perform(function (){
function checkIsImplementeInterFace(clsName, interface_){
try{
var cls = Java.use(clsName)
if(cls.class.isInterface()){
return false
}
if(cls.class != undefined)
if(interface_.class.isAssignableFrom(cls.class)){
return true
}
return false
}catch(e){
return false
}
}
var TrustManagerInterface = Java.use("javax.net.ssl.TrustManager")
Java.enumerateLoadedClasses({
onMatch: function(clsName,handle){
if(checkIsImplementeInterFace(clsName,TrustManagerInterface)){
console.log(clsName)
var targetClass = Java.use(clsName)
var len = targetClass["checkServerTrusted"].overloads.length
for (var i = 0; i < len; i++){
if(targetClass["checkServerTrusted"].overloads[i].returnType.name == 'V'){
targetClass["checkServerTrusted"].overloads[i].implementation = function(){
console.log(clsName + i + "checkServerTrusted Called!")
}
}else{
targetClass["checkServerTrusted"].overloads[i].implementation = function(){
console.log(clsName + i + "checkServerTrusted Called!")
return null
}
}
}
}
},
onComplete: function(){
console.log("Search Classes Completed!")
}
})
})
}
setImmediate(main)
|
现在可以抓到包，证明请求发出去，那就是证书不对
![image]()
dump 证书
先关掉vpn，让它正常发请求，并用脚本把证书导出
方法一

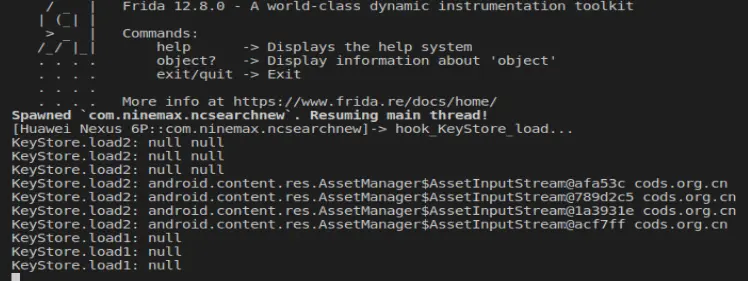

把证书密码dump出来，手动解压apk搜索证书导入charles即可
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
| function main(){
Java.perform(function (){
function print_stack(p) {
console.log("=====>", p)
console.log(Java.use("android.util.Log").getStackTraceString(Java.use("java.lang.Exception").$new()));
}
var StringClass = Java.use("java.lang.String");
var KeyStore = Java.use("java.security.KeyStore");
KeyStore.load.overload('java.security.KeyStore$LoadStoreParameter').implementation = function (arg0) {
console.log("KeyStore.load1:", arg0);
this.load(arg0);
};
KeyStore.load.overload('java.io.InputStream', '[C').implementation = function (arg0, arg1) {
console.log("KeyStore.load2:", arg0, arg1 ? StringClass.$new(arg1) : null);
this.load(arg0, arg1);
};
console.log("hook_KeyStore_load...");
})
}
setImmediate(main)
|
![image]()
方法二

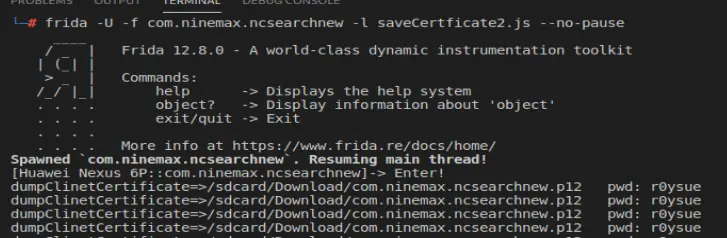

dump出证书到手机，并修改证书密码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
| function main(){
Java.perform(function (){
console.log("Enter!")
function storeP12(pri, p7, p12Path, p12Password) {
var X509Certificate = Java.use("java.security.cert.X509Certificate")
var p7X509 = Java.cast(p7, X509Certificate);
var chain = Java.array("java.security.cert.X509Certificate", [p7X509])
var ks = Java.use("java.security.KeyStore").getInstance("PKCS12", "BC");
ks.load(null, null);
ks.setKeyEntry("client", pri, Java.use('java.lang.String').$new(p12Password).toCharArray(), chain);
try {
var out = Java.use("java.io.FileOutputStream").$new(p12Path);
ks.store(out, Java.use('java.lang.String').$new(p12Password).toCharArray())
} catch (exp) {
console.log(exp)
}
}
Java.use("java.security.KeyStore$PrivateKeyEntry").getPrivateKey.implementation = function () {
var result = this.getPrivateKey()
var packageName = Java.use("android.app.ActivityThread").currentApplication().getApplicationContext().getPackageName();
storeP12(this.getPrivateKey(), this.getCertificate(), '/sdcard/Download/' + packageName + '.p12', 'r0ysue');
console.log("dumpClinetCertificate=>" + '/sdcard/Download/' + packageName + '.p12' + ' pwd: r0ysue');
return result;
}
Java.use("java.security.KeyStore$PrivateKeyEntry").getCertificateChain.implementation = function () {
var result = this.getCertificateChain()
var packageName = Java.use("android.app.ActivityThread").currentApplication().getApplicationContext().getPackageName();
storeP12(this.getPrivateKey(), this.getCertificate(), '/sdcard/Download/' + packageName + '.p12', 'r0ysue');
console.log("dumpClinetCertificate=>" + '/sdcard/Download/' + packageName + '.p12' + ' pwd: r0ysue');
return result;
}
})
}
setImmediate(main)
|

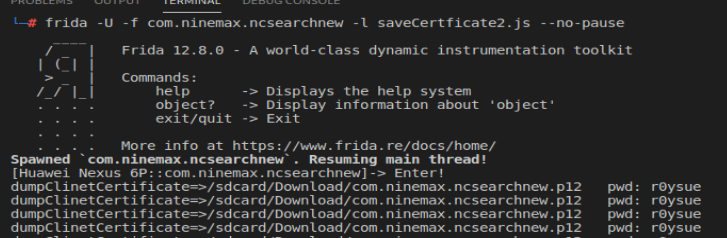

![image]()

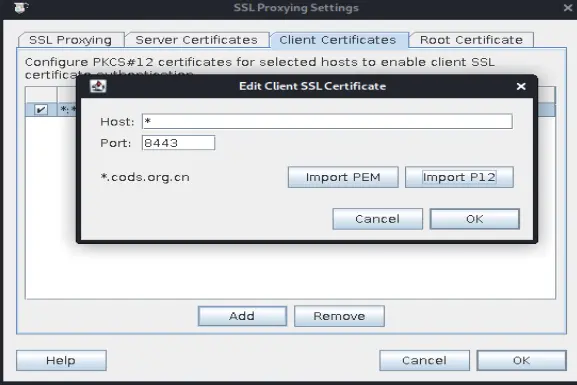

charles导入证书
1
| adb pull /sdcard/Download/com.ninemax.ncsearchnew.p12 /root/Desktop/
|
![image]()

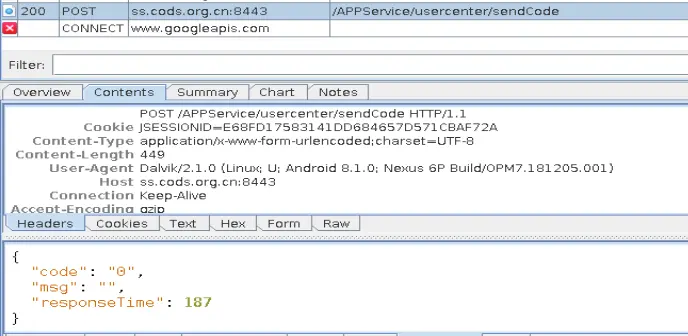

再运行绕过本地校验脚本，成功抓包
![image]()
混淆的okhhtp3抓包
![image]()
通过它的官网知道是https，用的ca机构证书。不需要hook证书校验这一步

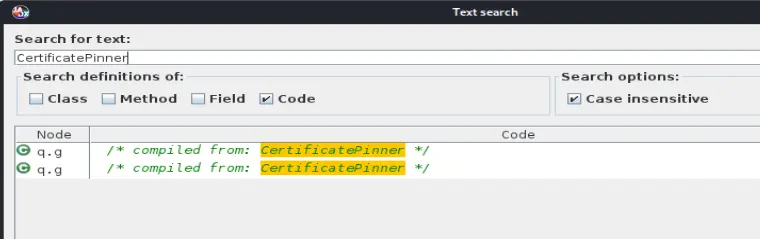

jadx打开搜索 CertificatePinner
![image]()

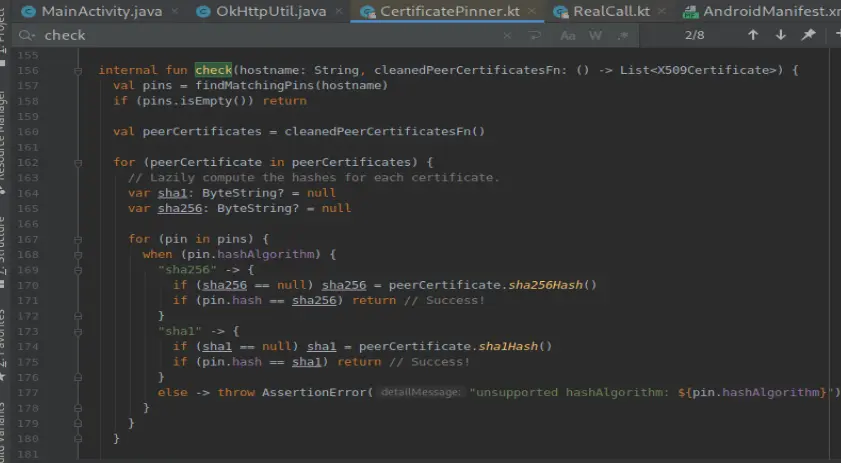

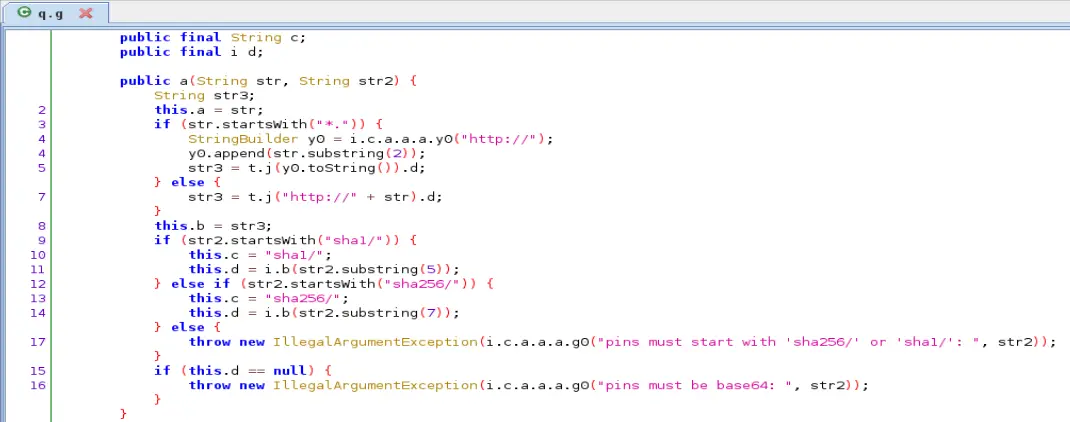

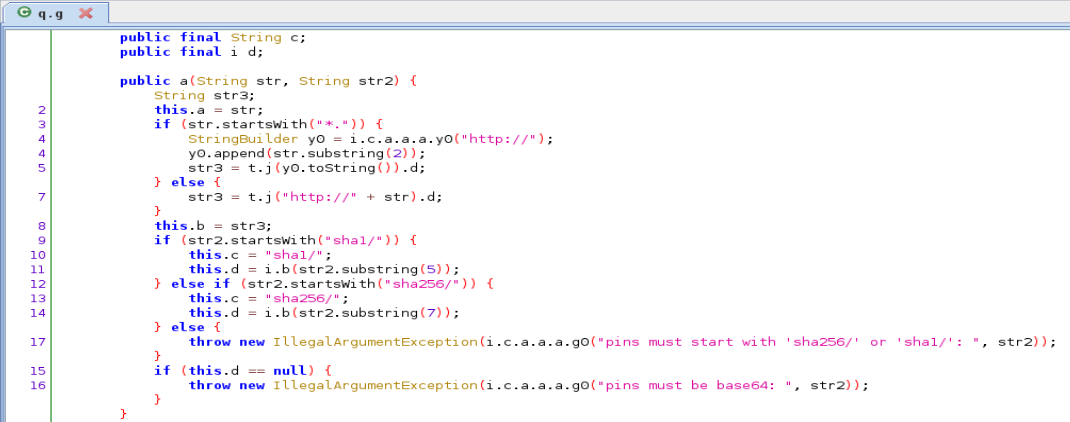

通过查看的CertificatePinner源码，和该app的代码对比，基本一样的逻辑，证书校验不通过就会抛异常
![image]()
![image]()
使用frida对其hook，置空
1
2
3
4
5
6
7
8
| function main(){
Java.perform(function (){
Java.use("q.g").a.implementation = function(){
console.log("check called!")
}
})
}
setImmediate(main)
|

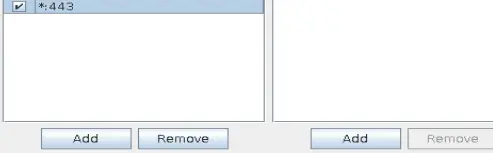

charles设置443端口
![image]()

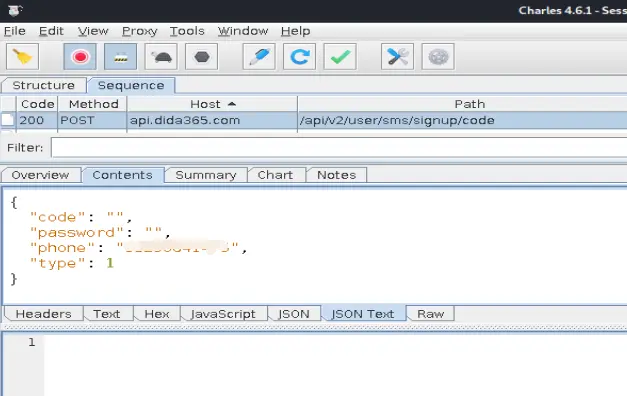

成功抓包
![image]()
