unidbg踩坑记录，getobjectclass对象为null
zsk Lv4
  2022-11-27 23:41:58 2022-11-27 23:41   2024-09-15 02:23:16    877 字  4 分钟
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
package com.dongchedi;

import com.github.unidbg.AndroidEmulator;
import com.github.unidbg.Module;
import com.github.unidbg.linux.android.AndroidEmulatorBuilder;
import com.github.unidbg.linux.android.AndroidResolver;
import com.github.unidbg.linux.android.dvm.*;
import com.github.unidbg.memory.Memory;
import com.github.unidbg.virtualmodule.android.AndroidModule;
import org.apache.log4j.Level;
import org.apache.log4j.Logger;

import java.io.File;
import java.util.ArrayList;
import java.util.List;

public class dongchedi extends AbstractJni {
    private final AndroidEmulator emulator;
    private final VM vm;
    private final Module module;
    dongchedi() {
        Logger.getLogger("com.github.unidbg.linux.ARM32SyscallHandler").setLevel(Level.DEBUG);
        Logger.getLogger("com.github.unidbg.unix.UnixSyscallHandler").setLevel(Level.DEBUG);
        Logger.getLogger("com.github.unidbg.AbstractEmulator").setLevel(Level.DEBUG);
        Logger.getLogger("com.github.unidbg.linux.android.dvm.DalvikVM").setLevel(Level.DEBUG);
        Logger.getLogger("com.github.unidbg.linux.android.dvm.BaseVM").setLevel(Level.DEBUG);
        Logger.getLogger("com.github.unidbg.linux.android.dvm").setLevel(Level.DEBUG);

        emulator = AndroidEmulatorBuilder.for32Bit().build();
        final Memory memory = emulator.getMemory();
        memory.setLibraryResolver(new AndroidResolver(23));
        vm = emulator.createDalvikVM(new File("unidbg-android\\src\\test\\java\\com\\dongchedi\\dongchedi_6_5_1.apk"));
        vm.setJni(this);
        vm.setVerbose(true);
        new AndroidModule(emulator, vm).register(memory);
        DalvikModule dm = vm.loadLibrary("cjtfcc", true);
        module = dm.getModule();
        dm.callJNI_OnLoad(emulator);
    }

    public String tfccDecrypt(int param1, int param2, String param3, String param4) {
        // com.bdcaijing.tfccsdk.Tfcc
        // private native String tfccDecrypt(int i, int i2, String str, String str2);
        List<Object> list = new ArrayList<>();
        list.add(vm.getJNIEnv()); //第一个参数默认env
        list.add(0); //第二个参数一般填0，一般用不到
        list.add(param1);
        list.add(param2);
        StringObject stringObject1 = new StringObject(vm, param3);
        list.add(vm.addLocalObject(stringObject1));
        StringObject stringObject2 = new StringObject(vm, param4);
        list.add(vm.addLocalObject(stringObject2));
        Number number = module.callFunction(emulator, 0xa2ac, list.toArray());
        System.out.println(vm.getObject(number.intValue()).getValue().toString());
        return null;
    }

    public static void main(String[] args) {
        dongchedi test = new dongchedi();
        test.tfccDecrypt(9, 1, "14zRM+40n2UGVx0DlI7hqDFjsxGR6eJsnnxUME5ZDT8=",
                "AQAAAIY8QCEBiAWgEHTCmugnR4hHWlbOmpfOHoYQ+gXQHXvSrCBlQtFmGM8T7eHljYYTD8vWOsQa8SuOaBwMTYOS03qjuUktB2dRu3+mWr4z5N3uMrb1Es/MTUrWx8JGHVoX1z7f6luarDvT9Wf0KKbfHRkqaJANlwVEqULsZU6HkJ0zkaFh3AnU5eQRsPoxttOPOhsVLv/kNjpm1" +
                "qBHkENXSedO4MN+PGybTCOKH3Ri6dvoX9EXCUr41o2W0ujI46nYn7vUrRkHgHNOOrGkIL7Acn0wrU6nj3cZuFpxb+W+u6r+MFI8ScE9XQya3322RRqOQUr1xWXpCucv/zknN7pjyzptYk8iWRfeaCT+iSjkmwa+3EStu3U/TQakF1xh46hjPOczx7elte6qV9ztDyF61Eu" +
                "Nrz4K+9O4TgqDeg9FGv7k+sNXg4M8L+Vx2BzJ/9MfaOFF5YXlI2oeMk0FReBTV8cBdXv2j23ju5HUpNo45dYF+tLihymL3maOiuWYviIAk8OKjNG+juruF4YuYoAqJoJSvuZ9Avujl3mqL66AdZmzG7vTa29S1MWIwu3XYj96lcbGSav9m5g4yRb6zXcQDIpqAmYHVgRjX" +
                "7adt09SOuvrcuORpUh2jSt5smO+lpR7fuHk4tlCr6OlRr360IgJr82PmeAAKz1dV9tHGYlV+618tjgi36J4iLuWaw6Ix9iJ1R6cFJY6JIX8pU8NoGoUFDjK3Dm8Pm9j72J9cTQpEMR/HCT3BOw5YTTTQHl3eQgdZevUD8HFnECMvajFZxKe6obyPieE41WBk/EQ5WI2Bwtu" +
                "rmyzxEq/VPIm1UfoqE78T4QOa2ey82Mw6TCIzMSMhCwiA2huzSnlus9RicQaPCX1isa0BitIISMHeHRFqab9ORMnHKVxEX3AhZN3OwcPKntx43yxZrTp5GLYwndyqchZCpTXhu/j/7WfUZRnIc2aOhKegFCLNdeml0Kha9FPSXE8AxTMr6ldw2p5vhPmzn5p2iRvgXoqdr5J" +
                "6W6QgBCEb8fGCupV+gLibY5mcLabHBmcSEkdax1h341Qxyk6s8/LvUlpx6MZHPM+/NgWf8bUvvbPKLrD7xhKPtCaaaO1PSGiNTPrlRJaajiBpJcMwMkjRbKT76+kDCL00teodYNyFBEkYmGJM5Sg7fHY1f6e3FXRYny6bXnr0R/mTnxWDPDAc9gn2eiyHofLRaBjvtbdpMStn" +
                "MolS5ybQt8GfaVifsjfQe3jwLmFNCtsXn6unDo189udnL9iOwtwIhLUtUvIU9IejQ33rKAMWQjrlvA99KTLzdk6ewItUa4mI9sFcpcR/uIbQiiHYs1qvfrQiAmvzY+Z4AArPV1X20cZiVX7rXy2OCLfoniIu5ZrDojH2InVHpwUljokhfylTw2gahQUOMrcObw+b2PvYn1xNC" +
                "kQxH8cJPcE7DlhNNO1SUZeQb5H5IQYdROwNOj0gcN4YmN1P2S2PC6VQzGJu2x0+T9e7PeW2jjIl4qM0N23z+A9W3IX0+x4oUU/1MNdgaxMlucq9SRoPnuyW/LC+PkDTN1tk6oMbKoqQSYiKn0dVOZKma6PWO3UogNGhFJN+uzG8TN0Vh5YDTrpJ/AhzGdpNu0aDFGXrXqaCx5n" +
                "Lcxfiq9XMzz47/nNbJ5GD/sBg2anQ25uYJQqueFTZsej5Buy+PpsZ9UCUlZ3QDdC8Z2dGfQCnnzvosx3vb3nZVUtkxruvGaDtTueshIcL6OFF+liJQ1N3hjfsom7F74c4NYZo3SbrUSlOOLWi9YALqszQq+s6XvUNBbKWzeCU236tn7MmtlBkdA+ZAe95f1JPy63XwxkK6wtfF" +
                "n7uxDQKfv/HVeKjvzQ+IAHv3wQmGSSUuHtusWtwFzTMXKqur3KNdLDQZIo6UV74/uvG3/CQnX3JoK3AHydHKV+kkMd9W6Uzjy37PixjrW5IFST6+thqb/yrK1chGM9MPJ7AbNeq9Zfhi5igComglK+5n0C+6OXebfNiKoMkM2f/ezRyGcMxEkKmyG2g9cZwfeDjZjDVvPiMd8Jf" +
                "6XOoXT47iq7JcWZ8PM8FELOWjegOP9hXUMPdkn2waqXbJ7eFwfb1vI/kSsX6QdTF5cXYcScuqFjft/hLd/a+JaSwEyFqIbWnZkHMMNuAqCmBmzk8ZEXzYkflQBKnTdiEgsXVrf4RokNgd//cFo6ZfrcdMdtbpiOEM3k9iD9HABFcsV4boY89g1Uqmx66emYxoD1UUI7XlDyGFgvY" +
                "uRFN5vcANjq9wM4mIfNRx8xN5JNj5EIcZG6fE3mq0jEQlEQf8V89ngy2x/Klp7c8OHWV9YDy3v4QeSTmSCrg8EvCx71UD0mhOPjBoF0EsUt6JseIrcKH+ORtrfSyPjUPnhkCnkTLZpyidfqUCJz6YksBQ7Ak+tA9vKN7Y2xGkgy/8jpwMfRjnmERo3YMrgaawqhp5RZLB0V2ZPLUC" +
                "s5MqqsJDnIp2KnCV8hJVDTUdz6/XlAPCWACEfZAZpX38dS7RTVw/KzJf903a7pdrsPJ+fW4MVIaMzF98w0GCRjFSPw8V44sbHQbrcFLgZ+7bF6G2Dm0eez6L5xIs0ptZcX8tN7UE24KxYJK8/THH47mRDs/gyMFE4r5r5XzB1vgtPPWURrjzCtODTxtcsxDaQ89e7WHuBA7IVBzRC2" +
                "5+lKeAndp3VlHpeGLzzLfHkgMqva7KsGE3rMPYk+ioGPl3TuPWrqawjwSKlsUP/vf61f80Br42DugXL4RPAoE5b5P/8628TZVqYMzkC1hfKNOzxkAOsYCW+vLizurCPm8yeIqDYlZq/DcFVxHxPkAR9uOFZwlKNXZbMzaDEU+ebXX4g+WG6dpKK0GSFV4MZX5SvpZrvIZvTspyVYjpXHV" +
                "Atr+wCzO0N5tg1kGJABoj+aZ4GWGFYv7kzTMBuk0hDeFXfDgp+Af7tMAkfmG67iqopLbNccfhlE6fXBwZail88u/6S9zhqAgZLclp3cPFDnZdGLF0pNqzsx6pk2j5tS+srUVHT+M5gGYOhC6iofm0ek0CQYsSwd6e8uUV627Cb00qLT1d0BGax0oQA2UE+dgCiR2jZaO0bnPsh6a6VC3P0" +
                "vGdiWeNZyjTEHXD3YaUb9y49+bniXV7SpHcLiZj+voezbBQqCETrDTc1pLjicAgBtCJ4kPYUzDJBtB/NUQR+PHMwH4QrhgqaDKFPnCjFAOv63ob7aepyfMI/fWenLJmEuTQU/hWv7zxhvC3KX7hfcIPTtUYDRJofRS4F0UNTGY7wHf0nD+uqJPaxEamlsFMNtPLa2ZAskmEXy1tegY8sH8" +
                "V8pFL7Gn0EbOAonzSLwQKZhlESxQ7MPTu3fgP7mnuEknJmhk3dwiCNNePtG6NftfjQSeJGHl+qtJNdWL22jONkATEgCZDQfYCAGkDPnI/svE9N80b83xT5K/+MQaLZGX/cyTWKLIlz21uaHGSRo0MaNBwYrRjNOZhoHbN2Cy0sgVLvlaMGTnkH4PJ/I09GQxsNAKLXz+vAKKNwbA36Kw4n" +
                "21WRWDoSBJ5gPjFKWHR1S4BYUCxI90O51M9InW1G06saOk991lD9RH6A0ywH3Nw4Mkg7BGLvdIdqCoqAmrcvgYJ1h/RvJOt/h2ipzcDpz/qaZU2UZabYEn3V714z0d5LMvN690tCaaaO1PSGiNTPrlRJaajhMKjIj0sQ1U1K4To1wyvhN4rsSeR+QtEIKK1xOW8yj5nhlEvksrd3GULB+hL" +
                "1ymx/tZgdQxe4ysd3cL9U/7tMmlPc9YWVtO22UO7iVrTfhTHmT0Rs9ttFNBjkyh/bPRTloBts7VeIUpze3ppRP4ncOJCaxxLOwtd0fA6iTvV4eAFeAcia29951yCHn91FjaNljJcPnRNy+u0VK+SlDptv5AcagR0luMfzGuIHOHdn9wIvb8/UDxAvxhwnieHQ7s1GdDUSq1T2xR5iHstyUu" +
                "Ma/Gax0oQA2UE+dgCiR2jZaO5/TnlbXb9IKvNeQ1fAvHxiIwfpxozEMIvOzOrPbLwJjs8xXbkCH8GvEYiqQfMw2B3w6YIawzwVlcx+4CypfZvtYTatE+XCzs2j8rjFUZWUBv2olwN3ZfL3a0AfpAo0+LTSRIivoQSNEEuk7sIg2xU1lonGUe8JRYJovoyczZNNC/OUI5wD5kWCEM0v3A/kO" +
                "Du50mX+Sl1LtmX8FQdy1q5nbS1BWFqfF6cibw4CL5yMH");
    }
}

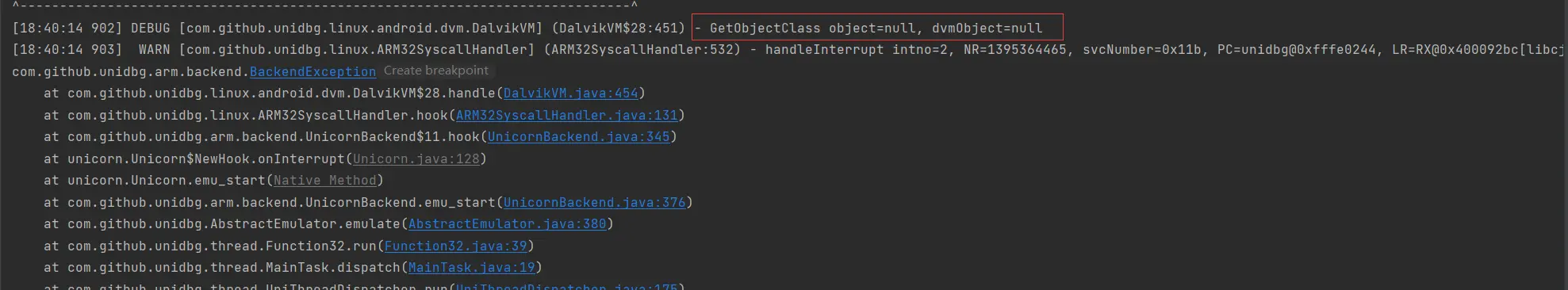

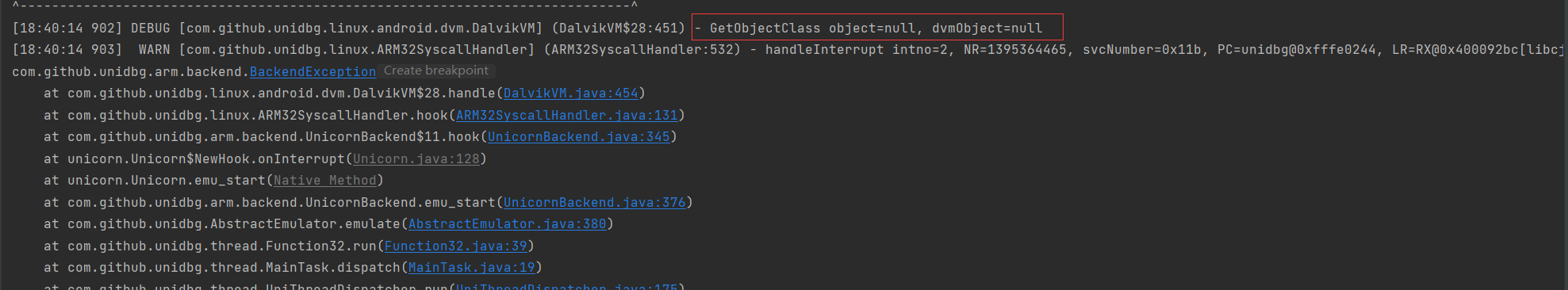

运行样本后报错：
GetObjectClass 的 object 为 null

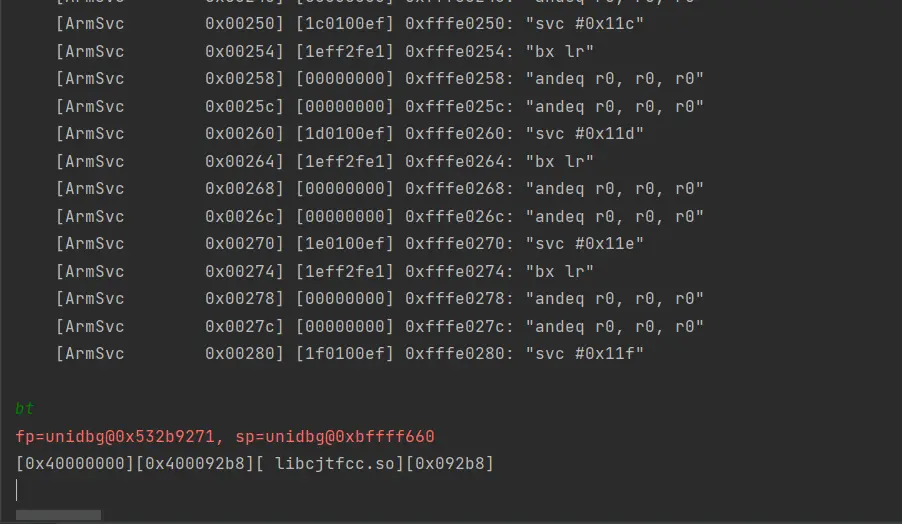

当前报错位置已经断下来了，输入bt查看调用栈

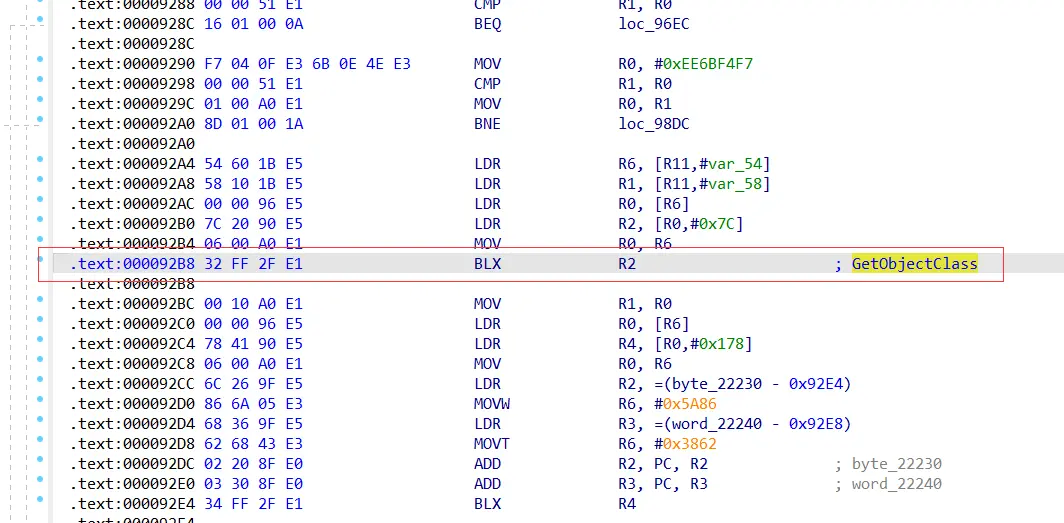

用ida打开样本so，跳到 0x092b8 地址


先分析一下，查看GetObjectClass的文档

1
jclass GetObjectClass(JNIEnv *env, jobject obj);

有两个参数，env和object，根据ARM函数调用约定采用，参数1参数4 分别保存到 R0R3 寄存器中

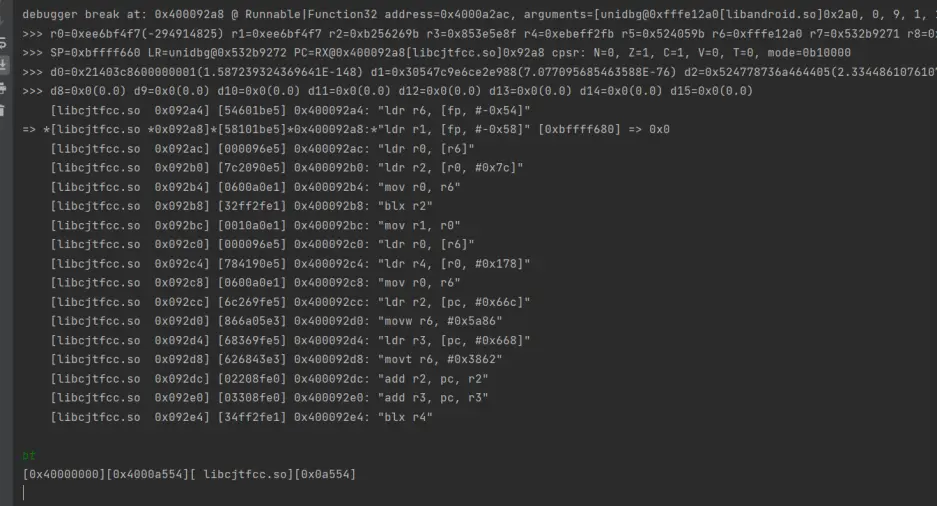

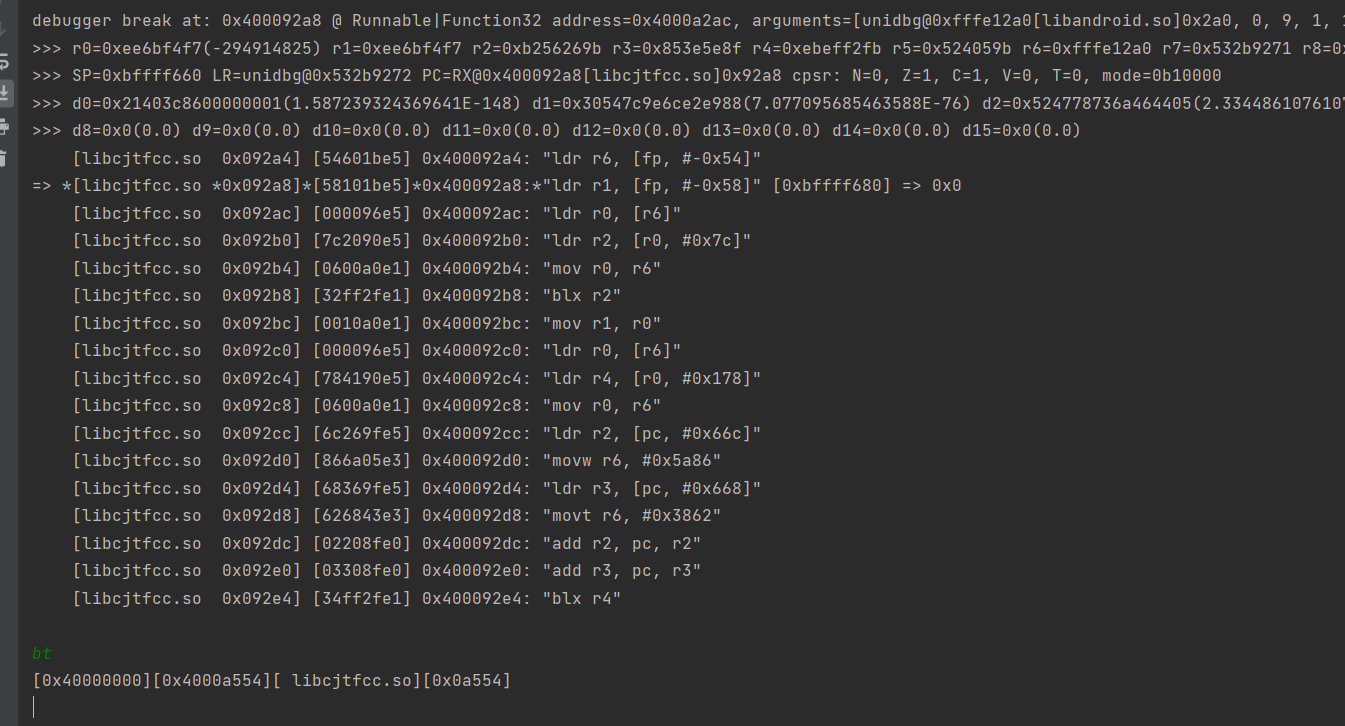

所以往上看R1出现的地址位置，0x92A8，进行断点查看调用的位置

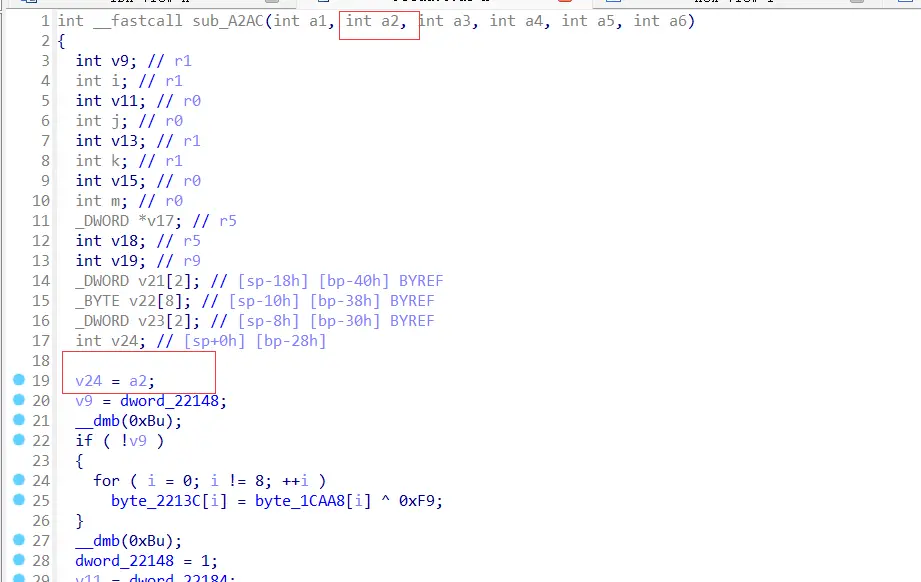

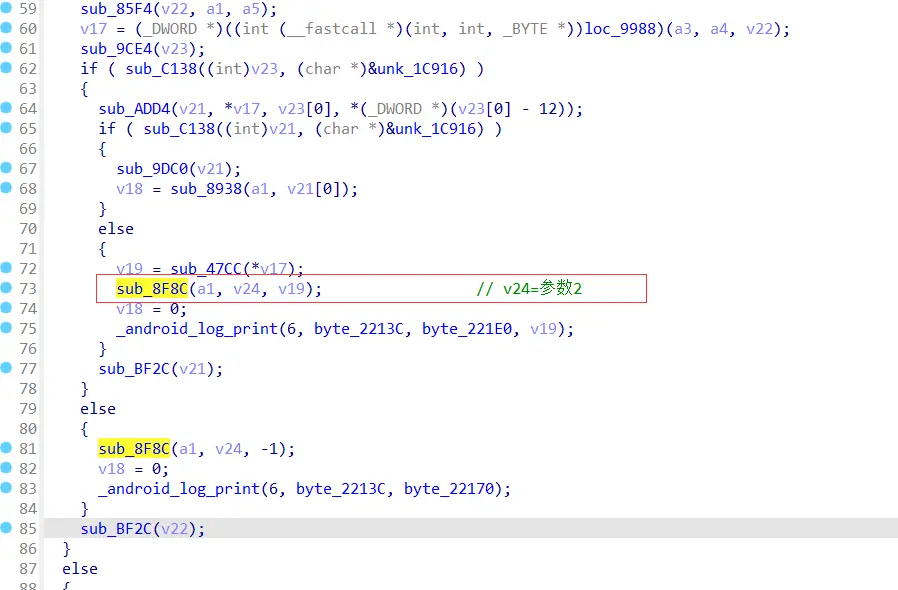

ida跳到0x0a554，转为汇编代码后，可以看到object是v24，也就是入参a2，

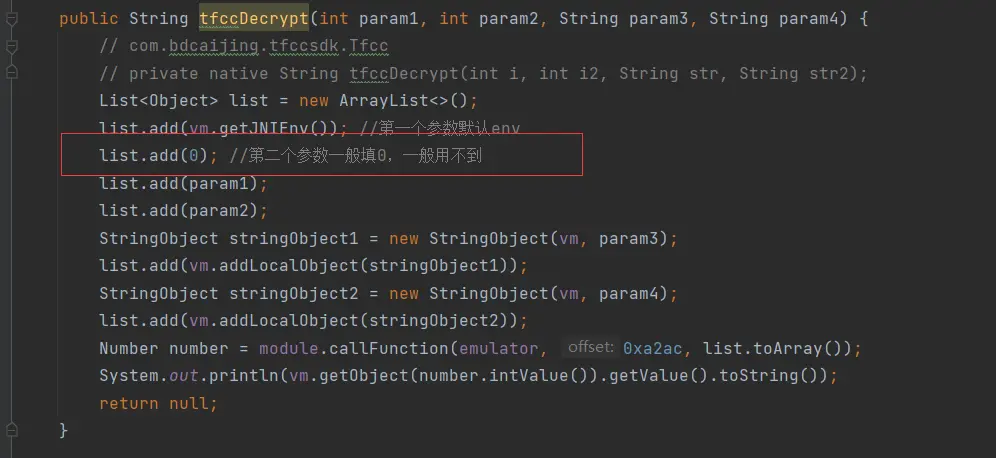

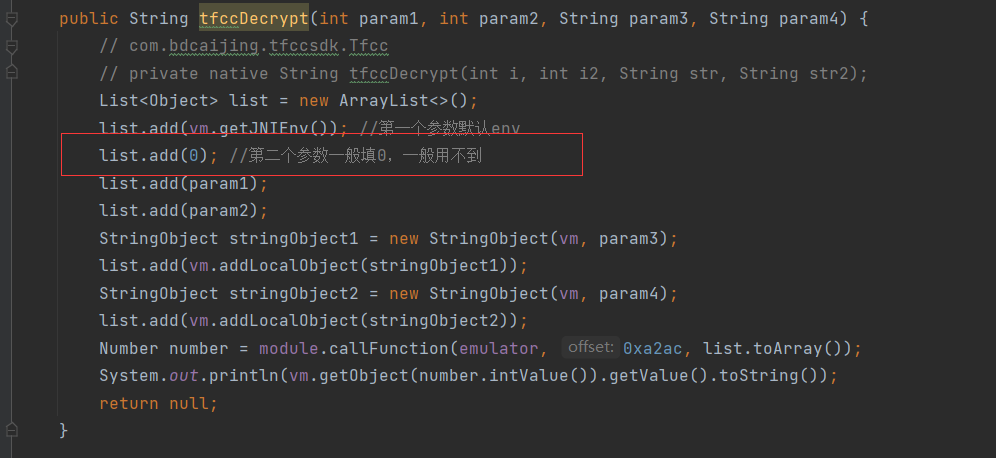

查看该函数的地址为0xa2ac，这跟我们一开始调用的地址一样的，在看当时传递的第二个object，确实传的0


可以通过jadx查看正确的对象

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
public String tfccDecrypt(int param1, int param2, String param3, String param4) {
    // com.bdcaijing.tfccsdk.Tfcc
    // private native String tfccDecrypt(int i, int i2, String str, String str2);
    List<Object> list = new ArrayList<>();
    list.add(vm.getJNIEnv()); //第一个参数默认env
//        list.add(0); //第二个参数一般填0，一般用不到
    DvmClass Tfcc = vm.resolveClass("com/bdcaijing/tfccsdk/Tfcc");
    DvmObject<?> TfccObject = Tfcc.newObject(null);
    list.add(vm.addLocalObject(TfccObject));
    list.add(param1);
    list.add(param2);
    StringObject stringObject1 = new StringObject(vm, param3);
    list.add(vm.addLocalObject(stringObject1));
    StringObject stringObject2 = new StringObject(vm, param4);
    list.add(vm.addLocalObject(stringObject2));
    Number number = module.callFunction(emulator, 0xa2ac, list.toArray());
    System.out.println(vm.getObject(number.intValue()).getValue().toString());
    return null;
}

再次运行就可以了
