iOS逆向系列(二) 反调试与绕过案例实战
zsk Lv4
  2024-02-01 00:00:00 2024-02-01 00:00   2024-02-01 00:00:00    4.3k 字  23 分钟

项目地址：https://github.com/cherubstar/iOSEnvDetection
根据项目使用Xcode构建app安装到手机上
iPhone：iPhone se2(越狱)，iOS 14.4.1

Frida检测

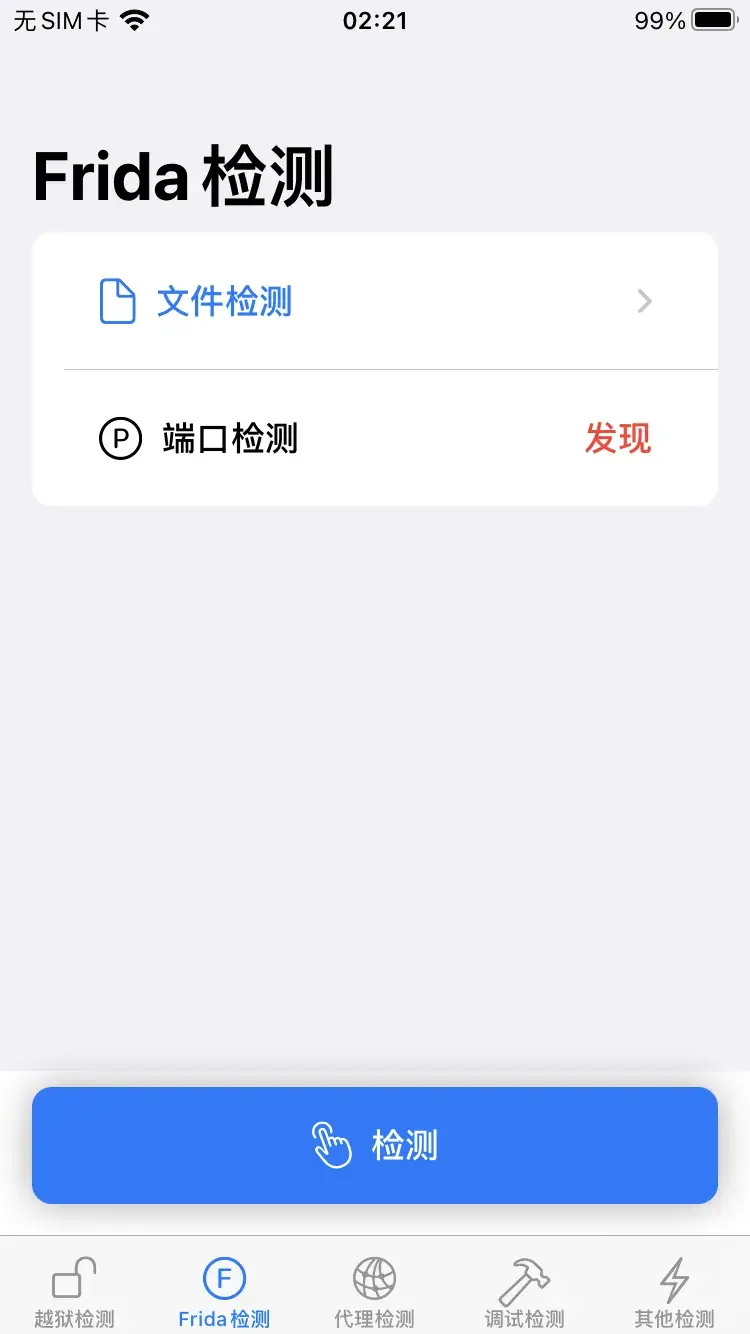

端口检测

上来先用objection搜索有没有frida相关的类，可以看到其中FridaDetection比较符合，对其hook

1
2
3
4
5
6
7
8
9
10
11
com.zsk.EnvDetection on (iPhone: 14.4.1) [usb] # ios hooking search classes frida
EnvDetection.FridaDetectionViewModel
_TtGC7SwiftUIP10$1a5ddeda09BoxVTableVGVS_11StateObjectC12EnvDetection23FridaDetectionViewModel_P10$1a5d8f8983Box_
_TtGC7SwiftUIP10$1a5ddeda09BoxVTableGVS_P10$1a5db422825ObservedObjectPropertyBoxC12EnvDetection23FridaDetectionViewModel__
FridaDetection

Found 4 classes
com.zsk.EnvDetection on (iPhone: 14.4.1) [usb] # ios hooking list class_methods FridaDetection
- checkListeningPort27042

Found 1 methods

只有 checkListeningPort27042 一个函数，hook查看调用栈返回值

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
com.zsk.EnvDetection on (iPhone: 14.4.1) [usb] # ios hooking watch method "*[FridaDetection checkListeningPort27042]" --dump-args --dump-backtrace --dump-return
(agent) Found selector at 0x102034000 as -[FridaDetection checkListeningPort27042]
(agent) Registering job 246950. Type: watch-method for: *[FridaDetection checkListeningPort27042]
com.zsk.EnvDetection on (iPhone: 14.4.1) [usb] # (agent) [246950] Called: *[FridaDetection checkListeningPort27042] 0 arguments(Kind: instance) (Super: NSObject)
(agent) [246950] *[FridaDetection checkListeningPort27042] Backtrace:
        0x102051240 EnvDetection!FridaDetectionViewModel.checkListeningPort27042()
        0x1020865d4 EnvDetection!closure #2 in closure #1 in closure #1 in FridaDetectionView.body.getter
        0x1a56f0e30 SwiftUI!partial apply for implicit closure #2 in implicit closure #1 in WrappedButtonStyle.Body.body.getter
        0x1a5a07f28 SwiftUI!closure #1 in PressableGestureCallbacks.dispatch(phase:state:)
        0x1a5771b98 SwiftUI!thunk for @escaping @callee_guaranteed () -> ()
        0x1a5771bc0 SwiftUI!thunk for @escaping @callee_guaranteed () -> (@out ())
        0x1a5771b98 SwiftUI!thunk for @escaping @callee_guaranteed () -> ()
        0x1a5760764 SwiftUI!static Update.end()
        0x1a57b2e6c SwiftUI!EventBindingManager.send(_:)
        0x1a5c3fe50 SwiftUI!specialized EventBindingBridge.send(_:source:)
        0x1a5c3df28 SwiftUI!UIKitGestureRecognizer.send(touches:event:phase:)
        0x1a5c3ebe0 SwiftUI!@objc UIKitGestureRecognizer.touchesBegan(_:with:)
        0x1a11cad2c UIKitCore!-[UIGestureRecognizer _componentsEnded:withEvent:]
        0x1a171325c UIKitCore!-[UITouchesEvent _sendEventToGestureRecognizer:]
        0x1a11c0bd4 UIKitCore!__47-[UIGestureEnvironment _updateForEvent:window:]_block_invoke
        0x1a11c08b4 UIKitCore!-[UIGestureEnvironment _updateForEvent:window:]
(agent) [246950] Return Value: 0x1

返回了0x1，那是不是把函数返回值改为0x0，就不会被检测到

1
com.zsk.EnvDetection on (iPhone: 14.4.1) [usb] # ios hooking set return_value "*[FridaDetection checkListeningPort27042]" 0x0

再点击检测则过掉了
frida代码

1
2
3
4
5
6
7
8
9
10
function main(){
    Interceptor.attach(ObjC.classes["FridaDetection"]["- checkListeningPort27042"].implementation, {
        onEnter: function(args){
        }, onLeave: function(ret){
            console.log("ret =>", ret);
            ret.replace(new NativePointer(0x0))
        }
    })
}
setImmediate(main)

文件检测

既然是文件检测，那肯定涉及到文件的读取，查资料把文件操作相关的类都用objection查找一遍，最终得到是 NSFileManager 类，进行hook

1
com.zsk.EnvDetection on (iPhone: 14.4.1) [usb] # ios hooking watch class NSFileManager

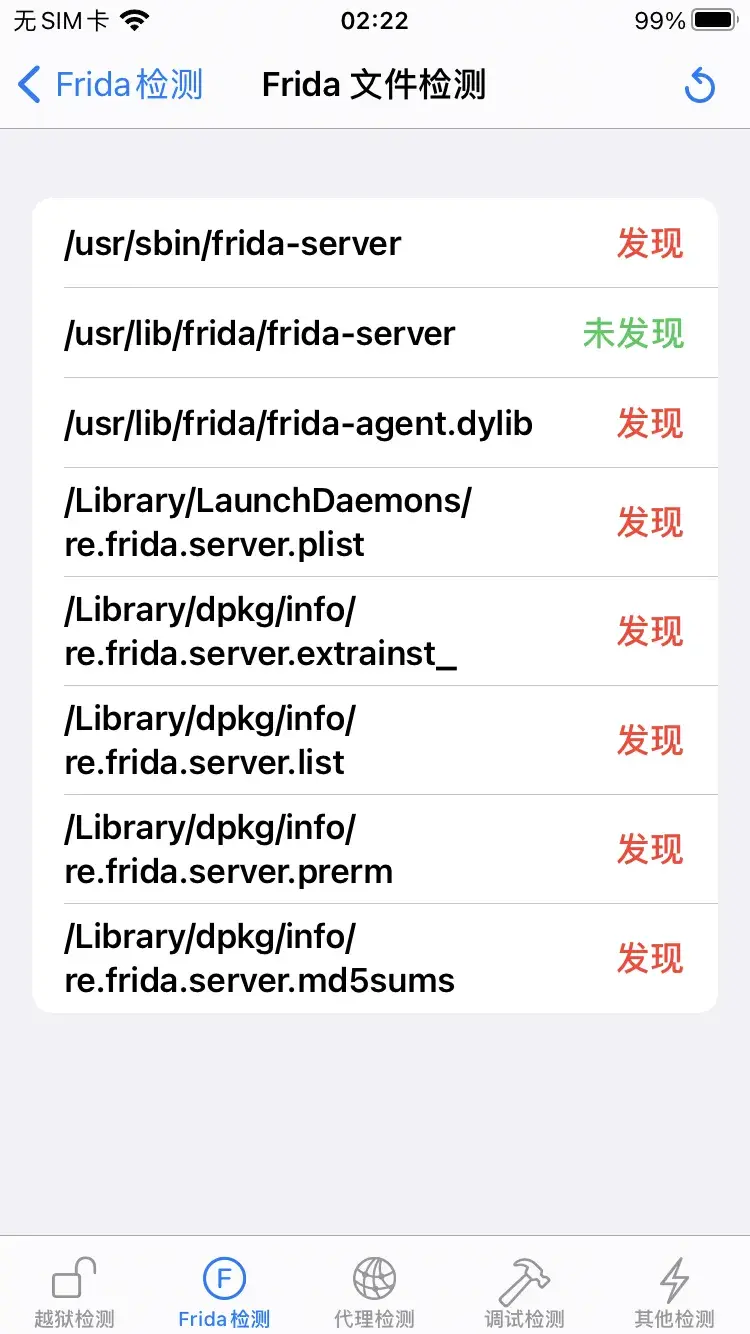

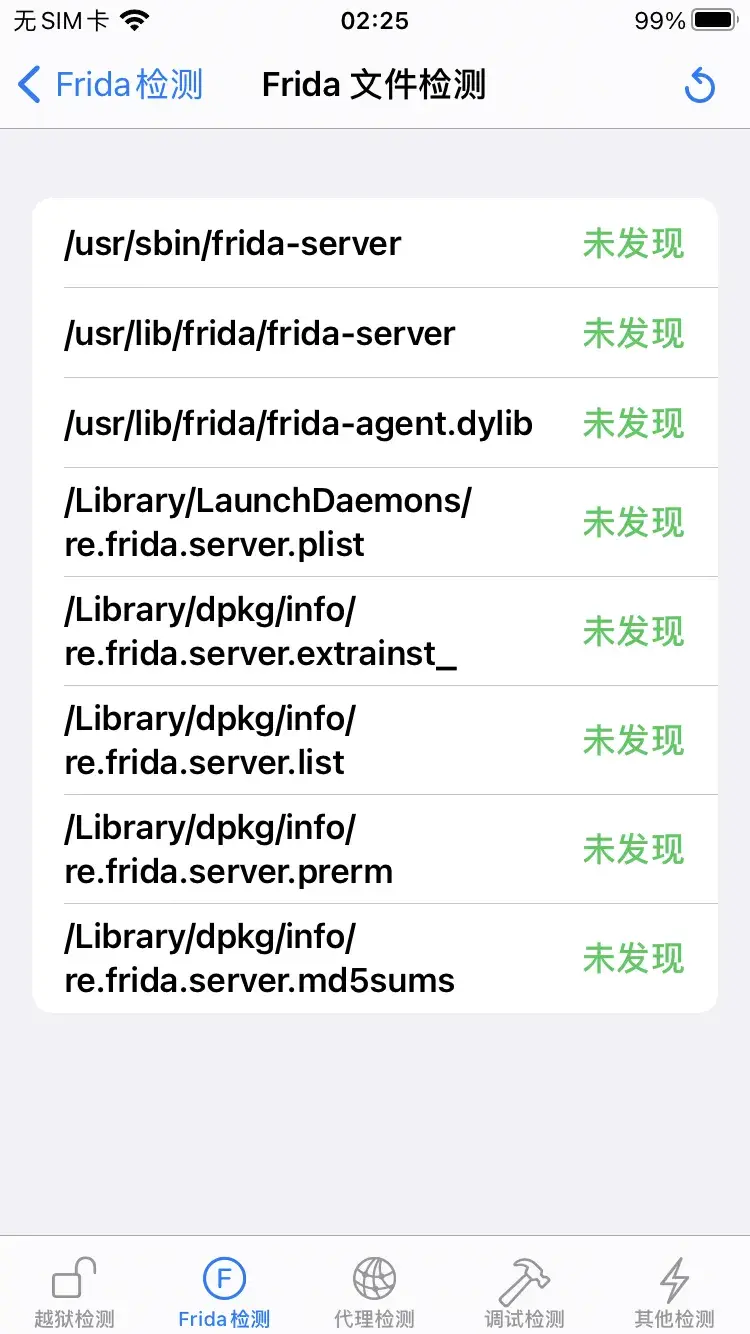

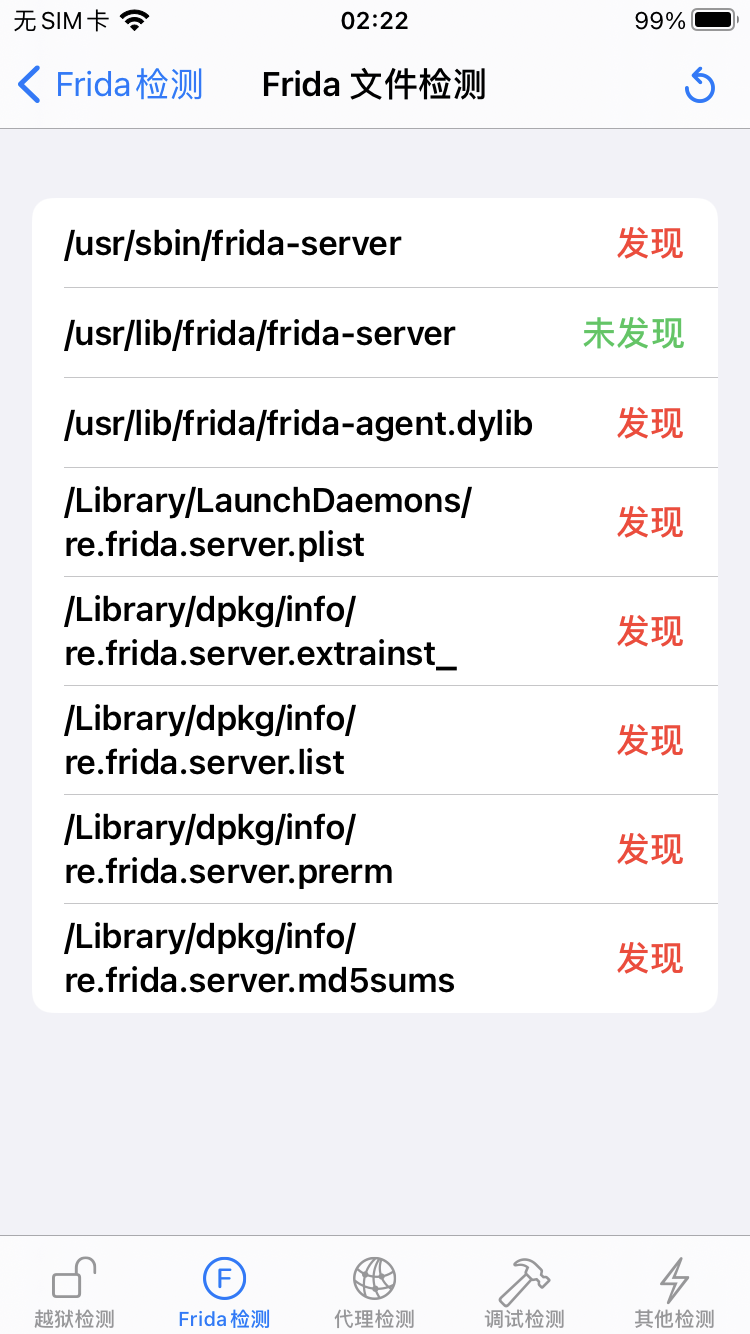

手机Frida文件检测刷新一下

1
2
3
4
5
6
com.zsk.EnvDetection on (iPhone: 14.4.1) [usb] # (agent) [703964] Called: [NSFileManager defaultManager] (Kind: class) (Super: NSObject)
(agent) [703964] Called: [NSFileManager _registerForUbiquityAccountChangeNotifications] (Kind: instance) (Super: NSObject)
(agent) [703964] Called: [NSFileManager defaultManager] (Kind: class) (Super: NSObject)
(agent) [703964] Called: [NSFileManager _registerForUbiquityAccountChangeNotifications] (Kind: instance) (Super: NSObject)
(agent) [703964] Called: [NSFileManager defaultManager] (Kind: class) (Super: NSObject)
(agent) [703964] Called: [NSFileManager _registerForUbiquityAccountChangeNotifications] (Kind: instance) (Super: NSObject)

对这两个函数进行hook查看调用栈返回值

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
com.zsk.EnvDetection on (iPhone: 14.4.1) [usb] # ios hooking watch method "*[NSFileManager _registerForUbiquityAccountChangeNotifications]" --dump-args --dump-backtrace --dump-return
(agent) Found selector at 0x19feee6b0 as -[NSFileManager _registerForUbiquityAccountChangeNotifications]
(agent) Registering job 536962. Type: watch-method for: *[NSFileManager _registerForUbiquityAccountChangeNotifications]
com.zsk.EnvDetection on (iPhone: 14.4.1) [usb] # ios hooking watch method "*[NSFileManager defaultManager]" --dump-args --dump-backtrace --dump-return
(agent) Found selector at 0x19feec534 as +[NSFileManager defaultManager]
(agent) Registering job 371228. Type: watch-method for: *[NSFileManager defaultManager]

com.zsk.EnvDetection on (iPhone: 14.4.1) [usb] # (agent) [371228] Called: *[NSFileManager defaultManager] 0 arguments(Kind: class) (Super: NSObject)
(agent) [371228] *[NSFileManager defaultManager] Backtrace:
        0x1a000f3d4 Foundation!standardDefaultCenter
        0x1a199dc5c UIKitCore!-[UITextEffectsWindow updateForOrientation:forceResetTransform:]
        0x1a199e2f0 UIKitCore!+[UITextEffectsWindow _sharedTextEffectsWindowforWindowScene:allowHosted:matchesStatusBarOrientationOnAccess:shouldCreateIfNecessary:]
        0x1a199e3fc UIKitCore!+[UITextEffectsWindow sharedTextEffectsWindowForWindowScene:]
        0x1a10c640c UIKitCore!-[UIInputResponderController containerWindow]
        0x1a10c651c UIKitCore!-[UIInputResponderController containerRootController]
        0x1a149a1a8 UIKitCore!-[UIPeripheralHost(UIKitInternal) _isTransitioning]
        0x1a0fa219c UIKitCore!-[_UINavigationInteractiveTransition _gestureRecognizer:shouldReceiveEvent:]
        0x1a11cfd54 UIKitCore!-[UIGestureRecognizer _delegateShouldReceiveEvent:]
        0x1a11cf3f4 UIKitCore!-[UIGestureRecognizer _shouldReceiveTouch:forEvent:recognizerView:]
        0x1a171234c UIKitCore!__72-[UITouchesEvent _addGestureRecognizersForView:toTouch:forContinuation:]_block_invoke
        0x1a1711cf8 UIKitCore!__62-[UITouchesEvent _collectGestureRecognizersForView:withBlock:]_block_invoke
        0x1a1711784 UIKitCore!-[UITouchesEvent _collectGestureRecognizersForView:withBlock:]
        0x1a17121b8 UIKitCore!-[UITouchesEvent _addGestureRecognizersForView:toTouch:forContinuation:]
        0x1a1712074 UIKitCore!-[UITouchesEvent _addGestureRecognizersForView:toTouch:]
        0x1a1712690 UIKitCore!-[UITouchesEvent _addTouch:forDelayedDelivery:]
(agent) [371228] Return Value: 0x283a77540
(agent) [536962] Called: *[NSFileManager _registerForUbiquityAccountChangeNotifications] 0 arguments(Kind: instance) (Super: NSObject)
(agent) [536962] *[NSFileManager _registerForUbiquityAccountChangeNotifications] Backtrace:
        0x1a000f3e0 Foundation!standardDefaultCenter
        0x1a199dc5c UIKitCore!-[UITextEffectsWindow updateForOrientation:forceResetTransform:]
        0x1a199e2f0 UIKitCore!+[UITextEffectsWindow _sharedTextEffectsWindowforWindowScene:allowHosted:matchesStatusBarOrientationOnAccess:shouldCreateIfNecessary:]
        0x1a199e3fc UIKitCore!+[UITextEffectsWindow sharedTextEffectsWindowForWindowScene:]
        0x1a10c640c UIKitCore!-[UIInputResponderController containerWindow]
        0x1a10c651c UIKitCore!-[UIInputResponderController containerRootController]
        0x1a149a1a8 UIKitCore!-[UIPeripheralHost(UIKitInternal) _isTransitioning]
        0x1a0fa219c UIKitCore!-[_UINavigationInteractiveTransition _gestureRecognizer:shouldReceiveEvent:]
        0x1a11cfd54 UIKitCore!-[UIGestureRecognizer _delegateShouldReceiveEvent:]
        0x1a11cf3f4 UIKitCore!-[UIGestureRecognizer _shouldReceiveTouch:forEvent:recognizerView:]
        0x1a171234c UIKitCore!__72-[UITouchesEvent _addGestureRecognizersForView:toTouch:forContinuation:]_block_invoke
        0x1a1711cf8 UIKitCore!__62-[UITouchesEvent _collectGestureRecognizersForView:withBlock:]_block_invoke
        0x1a1711784 UIKitCore!-[UITouchesEvent _collectGestureRecognizersForView:withBlock:]
        0x1a17121b8 UIKitCore!-[UITouchesEvent _addGestureRecognizersForView:toTouch:forContinuation:]
        0x1a1712074 UIKitCore!-[UITouchesEvent _addGestureRecognizersForView:toTouch:]
        0x1a1712690 UIKitCore!-[UITouchesEvent _addTouch:forDelayedDelivery:]

看了调用栈都是跟系统相关的，底层会去调用libc下的open函数，frida hook open函数

1
2
3
4
5
6
7
8
9
10
11
function hook_libc_open(){
    var openAddr = Module.findExportByName(null, "open");
    Interceptor.attach(openAddr, {
        onEnter: function(args) {
            console.log("path =>", args[0].readCString());
            console.log(Thread.backtrace(this.context, Backtracer.ACCURATE).map(DebugSymbol.fromAddress).join("\n\t"))
        }, onLeave: function(retval){
            console.log(retval)
        }
    })
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
[iOS Device::EnvDetection ]-> path => /usr/lib/frida/frida-server
0x100486284 EnvDetection!-[FileAndFolderPathDetection checkPathByOpen:]
        0x1004d8978 EnvDetection!CommonUtils.checkPath(path:)
        0x1004af724 EnvDetection!closure #1 in closure #1 in closure #1 in FridaFileDetectionView.body.getter
        0x1a5c0a280 SwiftUI!HStack.init(alignment:spacing:content:)
        0x1004af280 EnvDetection!closure #1 in closure #1 in FridaFileDetectionView.body.getter
        0x1a5b0ee74 SwiftUI!ForEachChild.updateValue()
        0x1a562d7fc SwiftUI!partial apply for implicit closure #2 in implicit closure #1 in closure #1 in closure #1 in Attribute.init<A>(_:)
        0x1c8168a50 AttributeGraph!AG::Graph::UpdateStack::update()
        0x1c8168e84 AttributeGraph!AG::Graph::update_attribute(AG::data::ptr<AG::Node>, bool)
        0x1c8172088 AttributeGraph!AG::Subgraph::update(unsigned int)
        0x1a5c80cdc SwiftUI!GraphHost.runTransaction()
        0x1a5c83e1c SwiftUI!GraphHost.runTransaction(_:)
        0x1a5c827a8 SwiftUI!GraphHost.flushTransactions()
        0x1a5c83db4 SwiftUI!closure #1 in closure #1 in GraphHost.asyncTransaction<A>(_:mutation:style:)
        0x1a5752168 SwiftUI!partial apply for closure #1 in ViewGraphDelegate.updateGraph<A>(body:)
        0x1a5bd5e9c SwiftUI!closure #1 in ViewRendererHost.updateViewGraph<A>(body:)
0xffffffffffffffff

这里调用了open的只有 /usr/lib/frida/frida-server 未发现的文件，看它的调用栈上一级[FileAndFolderPathDetection checkPathByOpen:] 很像是检测路径的，objection hook一下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
com.zsk.EnvDetection on (iPhone: 14.4.1) [usb] # ios hooking watch class FileAndFolderPathDetection
(agent) Watching method: - checkPathByNSFileManager:
(agent) Watching method: - checkPathByAccess:
(agent) Watching method: - checkPathByStat:
(agent) Watching method: - checkPathByLstat:
(agent) Watching method: - checkPathByStatfs:
(agent) Watching method: - checkPathByOpen:
(agent) Watching method: - checkPathByFopen:
(agent) Registering job 393195. Type: watch-class-methods for: FileAndFolderPathDetection

com.zsk.EnvDetection on (iPhone: 14.4.1) [usb] # (agent) [393195] Called: [FileAndFolderPathDetection checkPathByNSFileManager:] (Kind: instance) (Super: NSObject)
(agent) [393195] Called: [FileAndFolderPathDetection checkPathByAccess:] (Kind: instance) (Super: NSObject)
(agent) [393195] Called: [FileAndFolderPathDetection checkPathByNSFileManager:] (Kind: instance) (Super: NSObject)
(agent) [393195] Called: [FileAndFolderPathDetection checkPathByAccess:] (Kind: instance) (Super: NSObject)
(agent) [393195] Called: [FileAndFolderPathDetection checkPathByStat:] (Kind: instance) (Super: NSObject)
(agent) [393195] Called: [FileAndFolderPathDetection checkPathByLstat:] (Kind: instance) (Super: NSObject)
(agent) [393195] Called: [FileAndFolderPathDetection checkPathByStatfs:] (Kind: instance) (Super: NSObject)
(agent) [393195] Called: [FileAndFolderPathDetection checkPathByOpen:] (Kind: instance) (Super: NSObject)
(agent) [393195] Called: [FileAndFolderPathDetection checkPathByFopen:] (Kind: instance) (Super: NSObject)
(agent) [393195] Called: [FileAndFolderPathDetection checkPathByNSFileManager:] (Kind: instance) (Super: NSObject)
(agent) [393195] Called: [FileAndFolderPathDetection checkPathByNSFileManager:] (Kind: instance) (Super: NSObject)
(agent) [393195] Called: [FileAndFolderPathDetection checkPathByNSFileManager:] (Kind: instance) (Super: NSObject)
(agent) [393195] Called: [FileAndFolderPathDetection checkPathByNSFileManager:] (Kind: instance) (Super: NSObject)
(agent) [393195] Called: [FileAndFolderPathDetection checkPathByNSFileManager:] (Kind: instance) (Super: NSObject)
(agent) [393195] Called: [FileAndFolderPathDetection checkPathByNSFileManager:] (Kind: instance) (Super: NSObject)

这里使用frida对FileAndFolderPathDetection的所有函数进行hook，打印一下参数返回值

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
function print_arguments(args) {
    var n = 100;
    var last_arg = '';
    for (var i = 2; i < n; ++i) {
        var arg = (new ObjC.Object(args[i])).toString();
        if (arg == 'nil' || arg == last_arg) {
            break;
        }
        last_arg = arg;
        return ' args' + (i-2) + ': ' + (new ObjC.Object(args[i])).toString()
    }
}

function IosTraceClass(targetClass) {
    console.log("Entering ios hooking => " + targetClass)
    if (ObjC.classes.hasOwnProperty(targetClass)) {
        var methods = ObjC.classes[targetClass].$ownMethods;
        methods.forEach(function (method) {
            console.log("hooking " + method);
            try {
                Interceptor.attach(ObjC.classes[targetClass][method].implementation, {
                    onEnter: function (args) {
                        this.output = ""
                        this.output = this.output.concat("[*] Detected call to: " + targetClass + " -> " + method)
                        this.output = this.output.concat("\r\n")
                        this.output = this.output.concat(print_arguments(args))
                    }, onLeave: function (ret) {
                        this.output = this.output.concat("\r\nios return value => ", ret, "\r\n")
                        console.log(this.output)
                        // ret.replace(new NativePointer(0x0)); // 修改返回值
                    }
                })
            } catch (error) {
                console.log("ios hooking failed error is => ", error)
            }
        })
    }
}

function traceClass(targetClass) {
    if (ObjC.available) {
        IosTraceClass(targetClass)
    }
}

function main() {
    traceClass("FileAndFolderPathDetection")
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
[iOS Device::EnvDetection ]-> [*] Detected call to: FileAndFolderPathDetection -> - checkPathByNSFileManager:
 args0: /usr/sbin/frida-server
ios return value => 0x0

[*] Detected call to: FileAndFolderPathDetection -> - checkPathByAccess:
 args0: /usr/sbin/frida-server
ios return value => 0x1

[*] Detected call to: FileAndFolderPathDetection -> - checkPathByNSFileManager:
 args0: /usr/lib/frida/frida-server
ios return value => 0x0

[*] Detected call to: FileAndFolderPathDetection -> - checkPathByAccess:
 args0: /usr/lib/frida/frida-server
ios return value => 0x0

[*] Detected call to: FileAndFolderPathDetection -> - checkPathByStat:
 args0: /usr/lib/frida/frida-server
ios return value => 0x0

[*] Detected call to: FileAndFolderPathDetection -> - checkPathByLstat:
 args0: /usr/lib/frida/frida-server
ios return value => 0x0

[*] Detected call to: FileAndFolderPathDetection -> - checkPathByStatfs:
 args0: /usr/lib/frida/frida-server
ios return value => 0x0

[*] Detected call to: FileAndFolderPathDetection -> - checkPathByOpen:
 args0: /usr/lib/frida/frida-server
ios return value => 0x0

[*] Detected call to: FileAndFolderPathDetection -> - checkPathByFopen:
 args0: /usr/lib/frida/frida-server
ios return value => 0x0

[*] Detected call to: FileAndFolderPathDetection -> - checkPathByNSFileManager:
 args0: /usr/lib/frida/frida-agent.dylib
ios return value => 0x1

[*] Detected call to: FileAndFolderPathDetection -> - checkPathByNSFileManager:
 args0: /Library/LaunchDaemons/re.frida.server.plist
ios return value => 0x1

[*] Detected call to: FileAndFolderPathDetection -> - checkPathByNSFileManager:
 args0: /Library/dpkg/info/re.frida.server.extrainst_
ios return value => 0x1

[*] Detected call to: FileAndFolderPathDetection -> - checkPathByNSFileManager:
 args0: /Library/dpkg/info/re.frida.server.list
ios return value => 0x1

[*] Detected call to: FileAndFolderPathDetection -> - checkPathByNSFileManager:
 args0: /Library/dpkg/info/re.frida.server.prerm
ios return value => 0x1

[*] Detected call to: FileAndFolderPathDetection -> - checkPathByNSFileManager:
 args0: /Library/dpkg/info/re.frida.server.md5sums
ios return value => 0x1

跟上面的图对照可以发现返回值是0x1的就是检测到的，所以修改所有函数的返回值为0x0，上面代码30行去掉注释，再次运行就全过掉了。

越狱检测

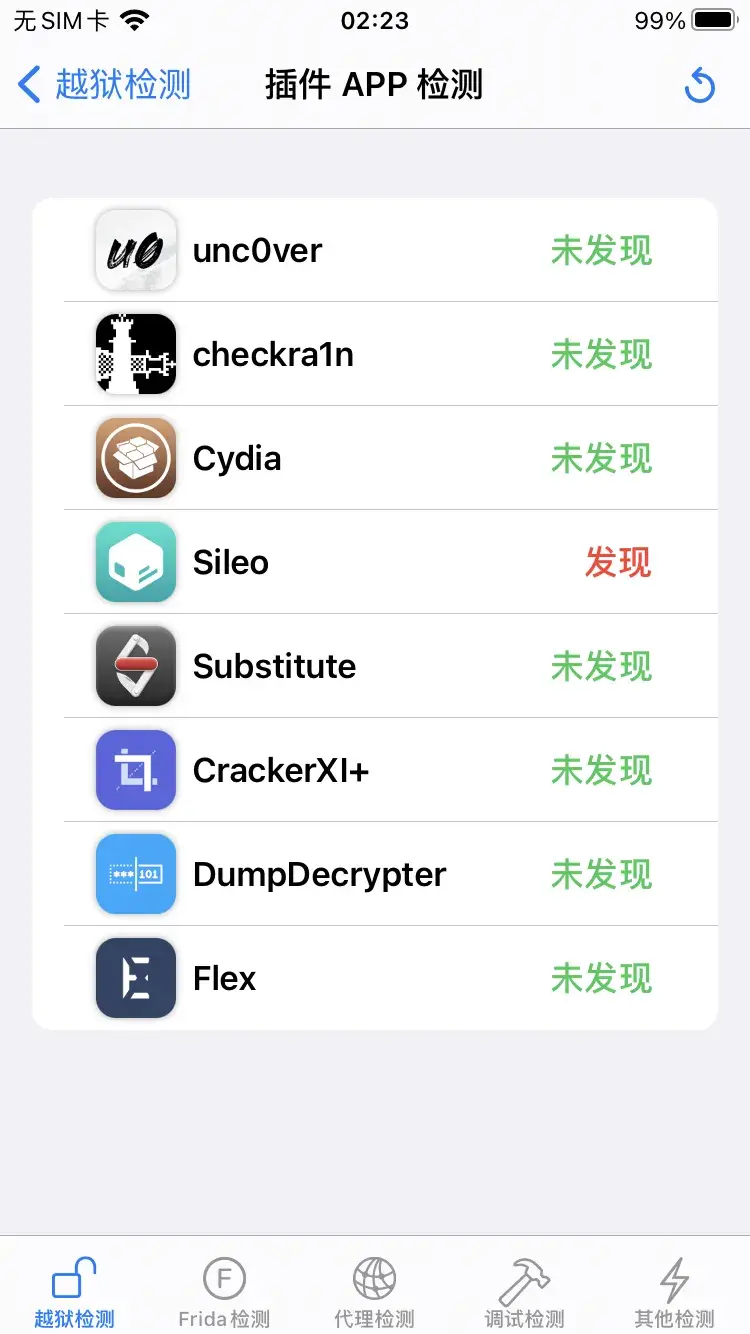

其中文件/目录检测，插件APP检测也都是同上面frida文件检测，也是同样过掉了。

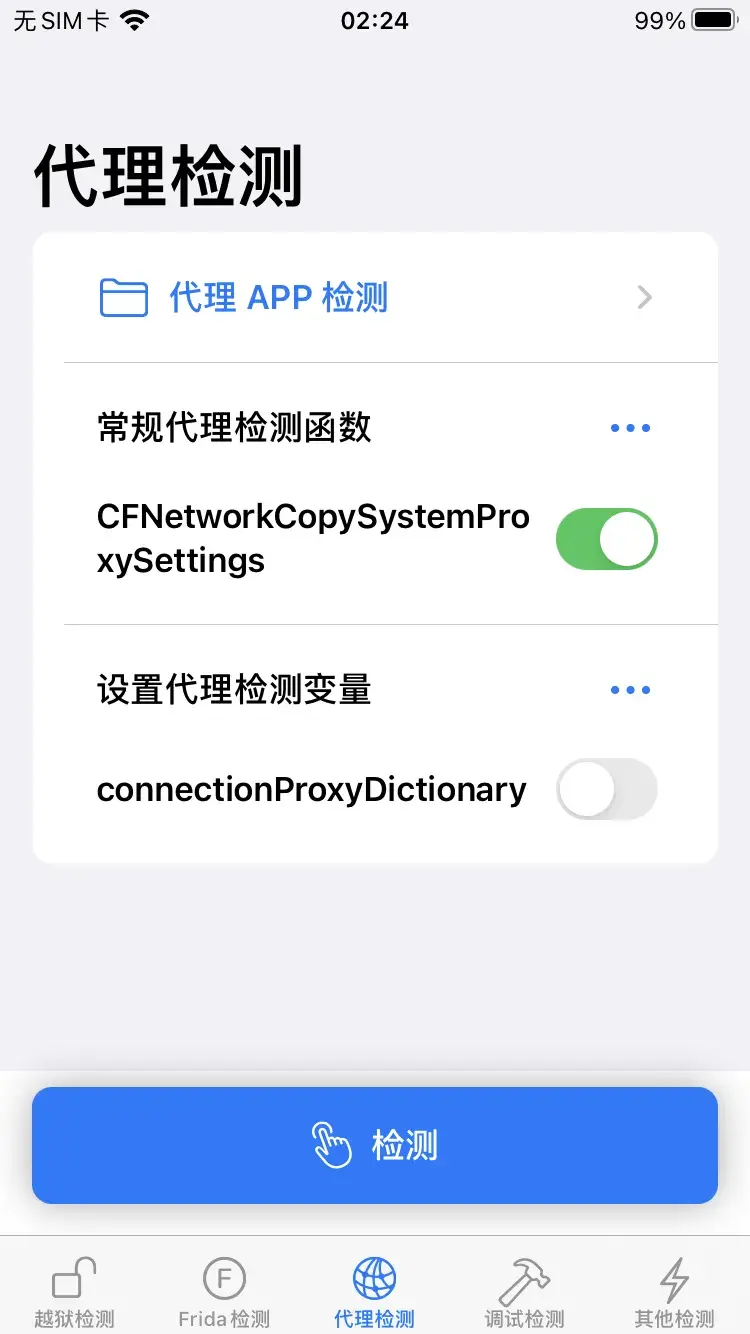

代理检测

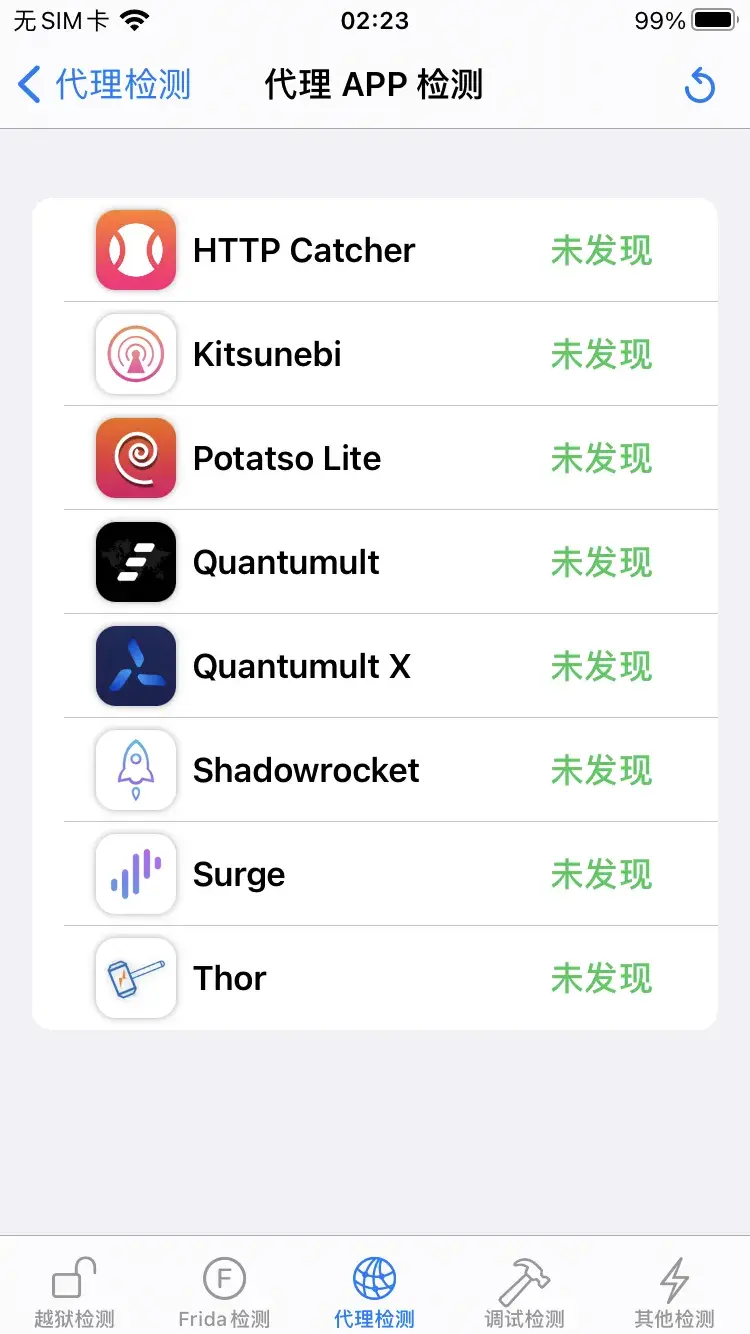

代理APP检测

我设备下载还打开了Shadowrocket，不知道为什么代理APP检测测出来。
也是objection查找类试了好几个关键词 proxy，network出来很多个类，既然它APP检测有Shadowrocket，直接ida打开搜索字符串
下载app压缩包：
https://github.com/cherubstar/iOSEnvDetection/releases/download/1.3/EnvDetection.app.zip
解压后用ida打开EnvDetection
菜单View->Open subviews->Strings 查找Shadowrocket会找到 Shadowrocket.app，按x查找引用，跳到引用的地方

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
__text:0000000100005618 A2 03 00 B0 42 20 0E 91       ADRL            X2, cfstr_HttpcatcherApp ; "HttpCatcher.app"
__text:0000000100005620 E8 03 00 91                   MOV             X8, SP
__text:0000000100005624 E8 57 00 F9                   STR             X8, [SP,#0x1E0+var_138]
__text:0000000100005628 A9 03 00 B0 29 A1 0E 91       ADRL            X9, cfstr_KitsunebiApp  ; "Kitsunebi.app"
__text:0000000100005630 09 01 00 F9                   STR             X9, [X8,#0x1E0+var_1E0]
__text:0000000100005634 A9 03 00 B0 29 21 0F 91       ADRL            X9, cfstr_PotatsoApp    ; "Potatso.app"
__text:000000010000563C 09 05 00 F9                   STR             X9, [X8,#0x1E0+var_1D8]
__text:0000000100005640 A9 03 00 B0 29 A1 0F 91       ADRL            X9, cfstr_QuantumultApp ; "Quantumult.app"
__text:0000000100005648 09 09 00 F9                   STR             X9, [X8,#0x1E0+var_1D0]
__text:000000010000564C A9 03 00 B0 29 21 10 91       ADRL            X9, cfstr_QuantumultXApp ; "Quantumult X.app"
__text:0000000100005654 09 0D 00 F9                   STR             X9, [X8,#0x1E0+var_1C8]
__text:0000000100005658 A9 03 00 B0 29 A1 10 91       ADRL            X9, cfstr_ShadowrocketAp ; "Shadowrocket.app"
__text:0000000100005660 09 11 00 F9                   STR             X9, [X8,#0x1E0+var_1C0]
__text:0000000100005664 A9 03 00 B0 29 21 11 91       ADRL            X9, cfstr_SurgeIosApp   ; "Surge-iOS.app"
__text:000000010000566C 09 15 00 F9                   STR             X9, [X8,#0x1E0+var_1B8]
__text:0000000100005670 A9 03 00 B0 29 A1 11 91       ADRL            X9, cfstr_ThorApp       ; "Thor.app"

按tab跳到代码页面，发现函数名是 -[AgentDetection checkAgentAppIsInstalled](AgentDetection *self, SEL a2)，使用objection hook

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
com.zsk.EnvDetection on (iPhone: 14.4.1) [usb] # ios hooking watch method "-[AgentDetection checkAgentAppIsInstalled]" --dump-args --dump-backtrace --dump-return
(agent) Found selector at 0x1026b8f34 as -[AgentDetection checkAgentAppIsInstalled]
(agent) Registering job 473143. Type: watch-method for: -[AgentDetection checkAgentAppIsInstalled]
com.zsk.EnvDetection on (iPhone: 14.4.1) [usb] # (agent) [473143] Called: -[AgentDetection checkAgentAppIsInstalled] 0 arguments(Kind: instance) (Super: NSObject)
(agent) [473143] -[AgentDetection checkAgentAppIsInstalled] Backtrace:
        0x1026da35c EnvDetection!AgentDetectionViewModel.isInstalled()
        0x10270d8ac EnvDetection!closure #1 in AgentApplicationDetectionView.body.getter
        0x197e23a60 SwiftUI!List<>.init(content:)
        0x10270d3c0 EnvDetection!AgentApplicationDetectionView.body.getter
        0x10270ef98 EnvDetection!protocol witness for View.body.getter in conformance AgentApplicationDetectionView
        0x197b35b8c SwiftUI!partial apply for closure #1 in ViewBodyAccessor.updateBody(of:changed:)
        0x197e8e248 SwiftUI!closure #1 in BodyAccessor.setBody(_:)
        0x197b2f328 SwiftUI!ViewBodyAccessor.updateBody(of:changed:)
        0x197e8e6d4 SwiftUI!DynamicBody.updateValue()
        0x197b557fc SwiftUI!partial apply for implicit closure #2 in implicit closure #1 in closure #1 in closure #1 in Attribute.init<A>(_:)
        0x1ba690a50 AttributeGraph!AG::Graph::UpdateStack::update()
        0x1ba690e84 AttributeGraph!AG::Graph::update_attribute(AG::data::ptr<AG::Node>, bool)
        0x1ba696588 AttributeGraph!AG::Graph::input_value_ref_slow(AG::data::ptr<AG::Node>, AG::AttributeID, unsigned int, AGSwiftMetadata const*, bool*, long)
        0x1ba6a85bc AttributeGraph!AGGraphGetValue
        0x197fa11c4 SwiftUI!EnvironmentReadingChild.updateValue()
        0x197b557fc SwiftUI!partial apply for implicit closure #2 in implicit closure #1 in closure #1 in closure #1 in Attribute.init<A>(_:)
(agent) [473143] Return Value: 0x281954120

没啥有用的信息，在ida的伪代码找到了调用 AppInfo的listInstalledApps

1
2
v26 = (id)objc_alloc_init(&OBJC_CLASS___AppInfo);
v5 = objc_msgSend(v26, "listInstalledApps");

直接函数列表过滤查看listInstalledApps的实现，查看代码找到，对其hook

1
v2 = -[AppInfo fetchApps](self, "fetchApps");
1
2
3
4
5
6
7
8
9
10
11
function hook_fetchApps(){
    Interceptor.attach(ObjC.classes["AppInfo"]["- fetchApps"].implementation, {
        onEnter: function(args){
            console.log(Thread.backtrace(this.context, Backtracer.ACCURATE).map(DebugSymbol.fromAddress).join("\n\t"))
        }, onLeave: function(ret){
            console.log("ret value is => ",ret, "=>", ObjC.Object(ret), "=>", ObjC.Object(ret).$className);
            // var emptyNSArray = Objc.classes.NSArray['new']();
            // ret.replace(emptyNSArray);
        }
    })
}

调用栈里找到了 -[AgentDetection checkAgentAppIsInstalled]，这个返回值是NSArray，返回一份不包含任何关键app的NSArray给它即可。为了通用，直接创建一个空的NSArray返回给fetchApps，Objc.classes.NSArray‘new’，去掉7，8行注释即可

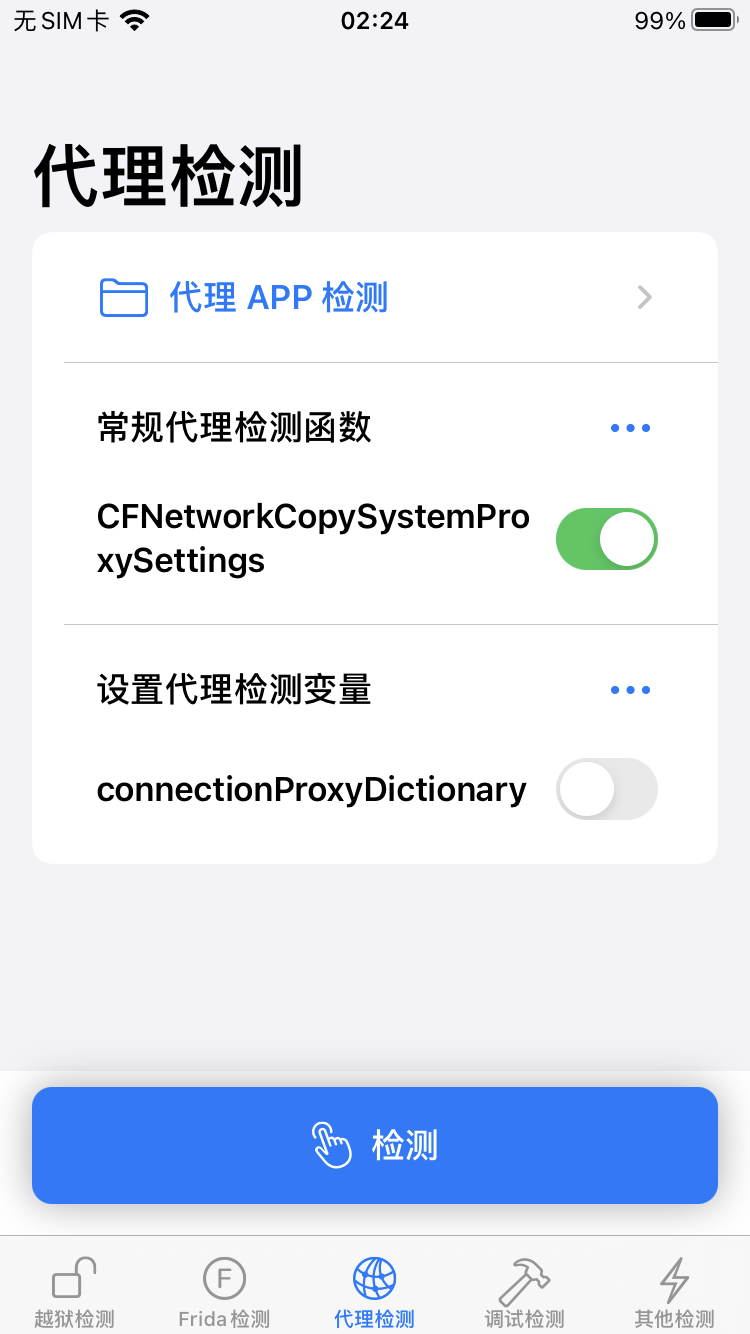

常规代理检测

用objection看一下AgentDetection函数

1
2
3
4
5
com.zsk.EnvDetection on (iPhone: 14.4.1) [usb] # ios hooking list class_methods AgentDetection
- checkAgentAppIsInstalled
- checkProxyStatusByCFNetworkCopySystemProxySettings
- getCFNetworkCopySystemProxySettingsDetails
- setConnectionProxyDictionary

看输出的函数名后面3个检测代理的，其中常规代理检测会调用checkProxyStatusByCFNetworkCopySystemProxySettings，直接hook

1
2
3
4
5
com.zsk.EnvDetection on (iPhone: 14.4.1) [usb] # (agent) [237829] Called: *[AgentDetection checkProxyStatusByCFNetworkCopySystemProxySettings] 0 arguments(Kind: instance) (Super: NSObject)
(agent) [237829] Return Value: 0x0
// 开启代理后
com.zsk.EnvDetection on (iPhone: 14.4.1) [usb] # (agent) [237829] Called: *[AgentDetection checkProxyStatusByCFNetworkCopySystemProxySettings] 0 arguments(Kind: instance) (Super: NSObject)
(agent) [237829] Return Value: 0x1

则直接修改其返回值为0x0即可

1
2
3
4
5
6
7
8
function hook_checkSystemProxy(){
    Interceptor.attach(ObjC.classes["AgentDetection"]["- checkProxyStatusByCFNetworkCopySystemProxySettings"].implementation, {
        onEnter: function(args){
        }, onLeave: function(ret){
            ret.replace(new NativePointer(0x0))
        }
    })
}

设置代理检测变量

如果使用WiFi 代理抓包，会发现请求发不出去，charles也抓不到任何包
如果使用vpn代理的话，以Shadowrocket为例，Shadowrocket 的作用是代理转发，vpn代理是处于网络层的，可以抓到更多的数据包，也可以过掉代理检测。
一般抓包也推荐使用vpn代理

调试检测

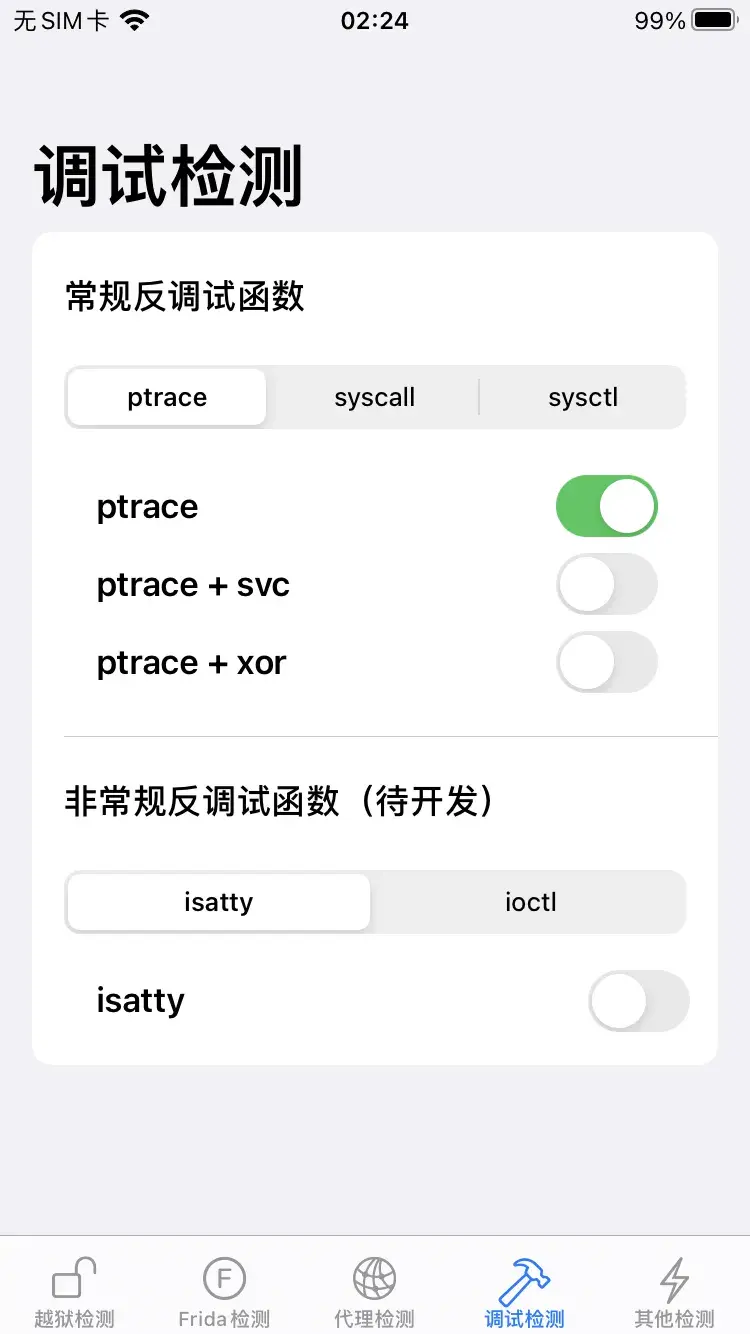

常规反调试函数


ptrace

用的是ptrace来检测，一个进程同时只能被另外一个进程调试，所以这里开了ptrace后，其它调试工具xcode，lldb就没法对其进行调试

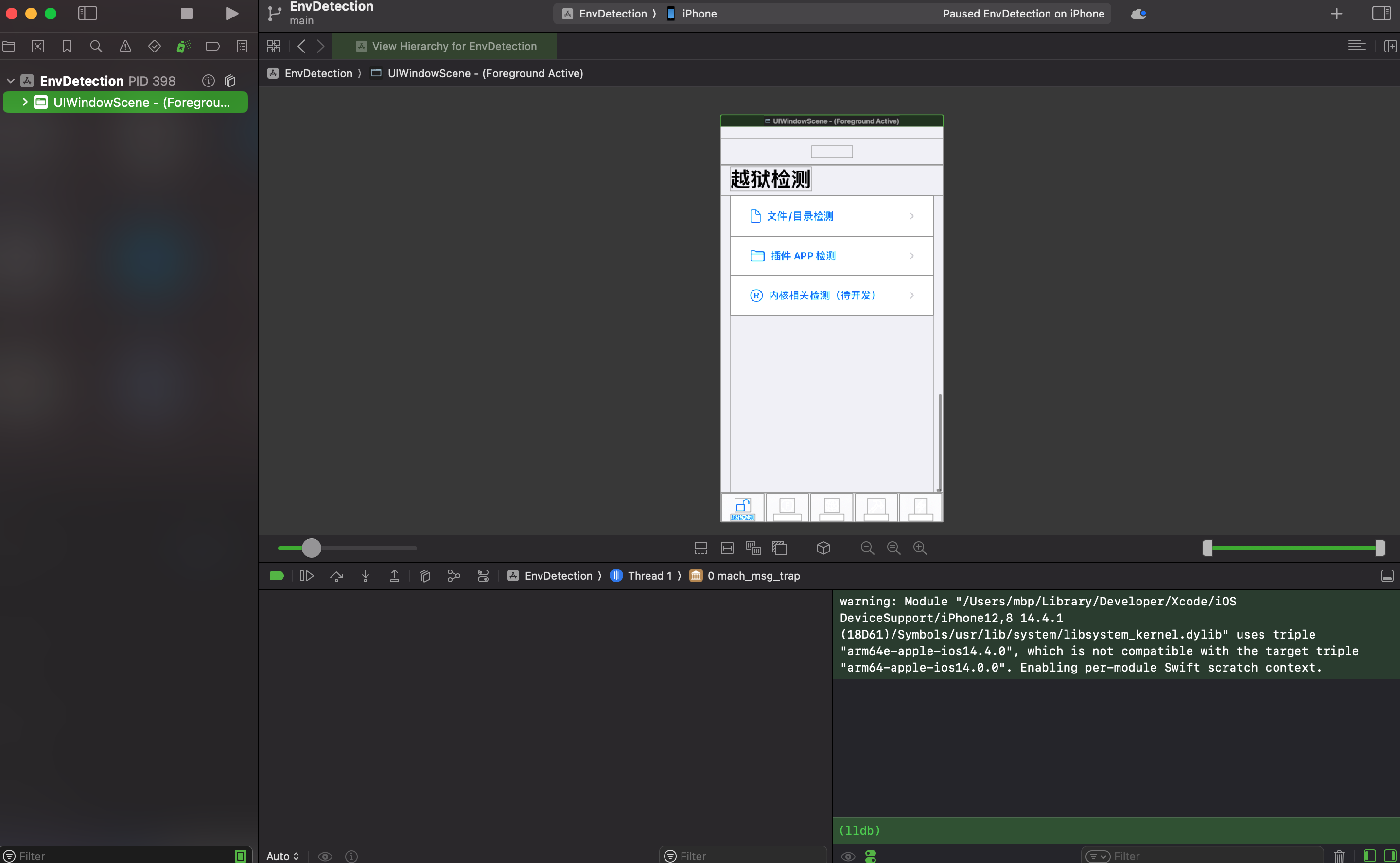

没打开ptrace是可以调试上的

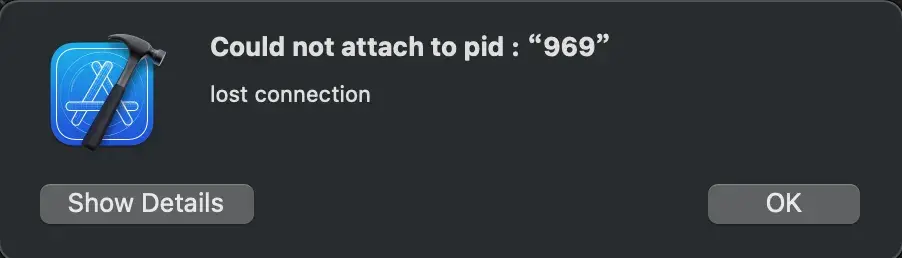

打开后调试则报错了
ptrace 是系统函数，那直接hook

1
int ptrace(int _request, pid _pid, caddr_t _addr, int _data);
1
2
3
4
5
6
function hook_ptrace(){
    var ptraceAddr = Module.findExportByName(null, 'ptrace');
    Interceptor.replace(ptraceAddr, new NativeCallback(function(i1, i2, i3, i4){
        console.log("ptrace flag is => ", i1);
    }, 'void', ['int', 'int', 'int', 'int']))
}

不让ptrace函数执行就行了，直接置空不做任何操作
再次打开ptrace用xcode附加调试则没有报错现象了

ptrace+svc

在 iOS 反动态调试中,常用 svc #0x80 汇编指令来实现对 ptrace 和 syscall 系统调用的直接调用。通过这种方式,可以规避标准库提供的 ptrace() 函数,直接触发系统调用,增加反调试的难度,使得 lldb 无法正常附加到 app 进程。
svc #0x80 指令等同于 syscall() 函数在 C 语言中的使用,都是直接触发系统调用,而不会走标准库函数的包装。
当开启ptrace+svc后上面的hook函数没触发，查看它的源码也可以看到

1
2
3
4
5
6
7
8
9
10
11
12
13
14
- (void)ori_ptrace {
    ptrace(PT_DENY_ATTACH, 0, 0, 0);
}
// 等价于
- (void)svc_ptrace {
#ifdef __arm64__
    __asm__("mov X0, #31\n"
            "mov X1, #0\n"
            "mov X2, #0\n"
            "mov X3, #0\n"
            "mov w16, #26\n"
            "svc #0x80");
#endif
}

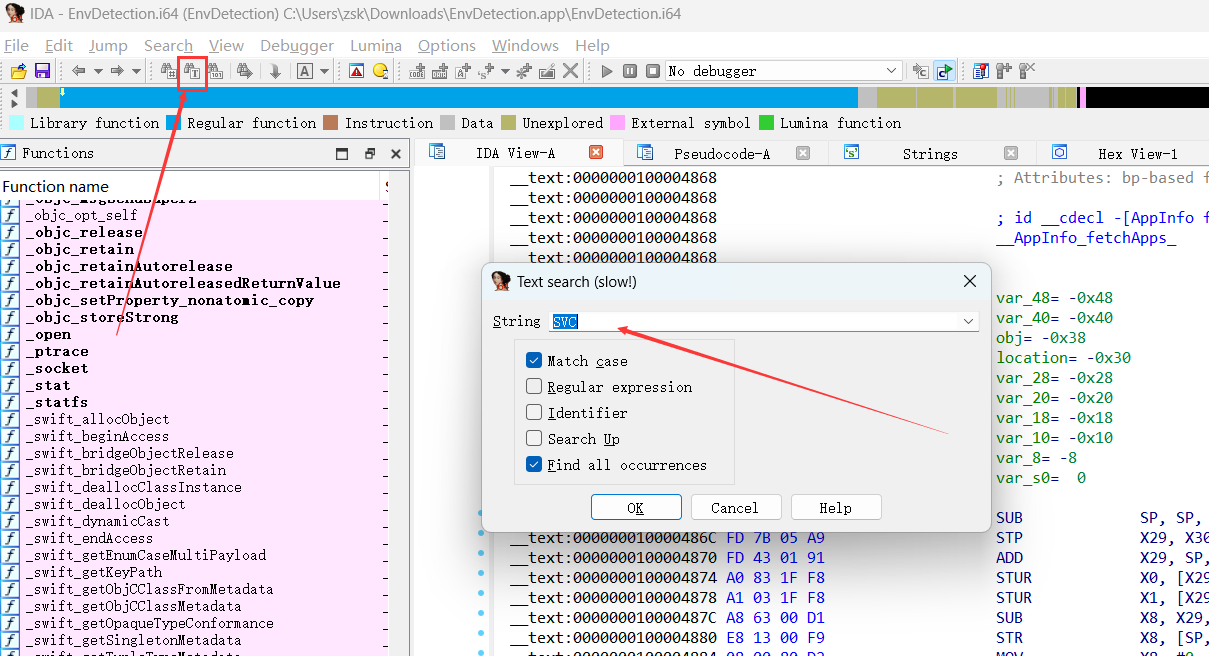

也可以用直接ida打开搜索 SVC

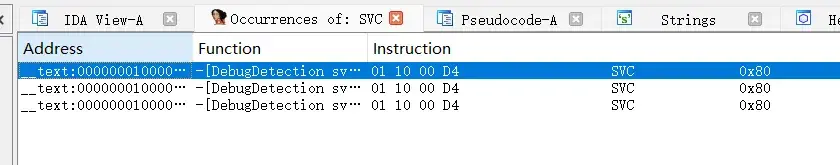

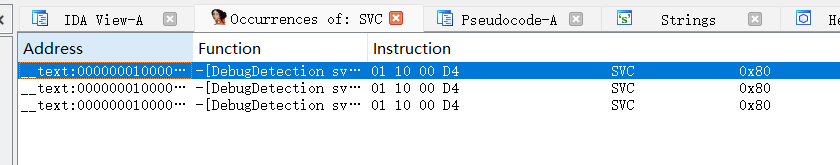

搜索结果
跟进查看

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
__text:0000000100006028                               ; void __cdecl -[DebugDetection svc_ptrace](DebugDetection *self, SEL)
__text:0000000100006028                               __DebugDetection_svc_ptrace_            ; DATA XREF: __objc_methlist:0000000100067FEC↓o
__text:0000000100006028
__text:0000000100006028                               var_10= -0x10
__text:0000000100006028                               var_8= -8
__text:0000000100006028
__text:0000000100006028 FF 43 00 D1                   SUB             SP, SP, #0x10
__text:000000010000602C E0 07 00 F9                   STR             X0, [SP,#0x10+var_8]
__text:0000000100006030 E1 03 00 F9                   STR             X1, [SP,#0x10+var_10]
__text:0000000100006034 E0 03 80 D2                   MOV             X0, #0x1F
__text:0000000100006038 01 00 80 D2                   MOV             X1, #0
__text:000000010000603C 02 00 80 D2                   MOV             X2, #0
__text:0000000100006040 03 00 80 D2                   MOV             X3, #0
__text:0000000100006044 50 03 80 52                   MOV             W16, #0x1A
__text:0000000100006048 01 10 00 D4                   SVC             0x80
__text:000000010000604C FF 43 00 91                   ADD             SP, SP, #0x10
__text:0000000100006050 C0 03 5F D6                   RET

汇编指令跟源码差不多

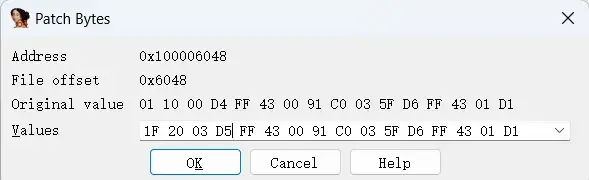

方式一可以使用patch的方式，修改 svc #0x80，在IDA View-A界面中选中svc那一行，点击工具栏Edit–>Patch program–>Change Bytes，弹出修改框，将01 10 00 D4修改为nop的byte码 1F 20 03 D5(如何知道nop的byte码，寻找一个nop，change byte就可以了)
将patch修改保存到程序里去，点击工具栏Edit–>Patch program–>Apply patches to input file
然后重签名打包安装就可以了
方式二直接用frida对 -[DebugDetection svc_ptrace]这个函数置空不执行，这是ObjC的函数，写法跟上面的不一样

1
2
3
4
5
6
7
8
9
function hook_svc_ptrace(){
    const DebugDetection = ObjC.classes.DebugDetection;
    const svc_ptrace = DebugDetection['- svc_ptrace']
    const oldImpl = svc_ptrace.implementation;
    svc_ptrace.implementation = ObjC.implement(svc_ptrace, (handle, selector) => {
        console.log(handle, selector);
        // oldImpl(handle, selector);  // 旧函数运行
    })
}

只要不执行原函数就行了
到这里其实都是要找函数位置去hook返回值或者置空达到的反调试效果，那当代码混淆以及代码膨，使得想要快速定位svc 0x80调用并将其patch掉就变得难以实现。
可以查看大佬的文章：https://bbs.kanxue.com/thread-273796.htm

ptrace+xor

通过ida查找到对应函数

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
void __cdecl -[DebugDetection xor_ptrace](DebugDetection *self, SEL a2)
{
  char v2; // w8
  void *__handle; // [xsp+10h] [xbp-30h]
  void *v4; // [xsp+18h] [xbp-28h]
  _BYTE *i; // [xsp+20h] [xbp-20h]
  _DWORD __symbol[2]; // [xsp+28h] [xbp-18h] BYREF
  SEL v7; // [xsp+30h] [xbp-10h]
  DebugDetection *v8; // [xsp+38h] [xbp-8h]

  v8 = self;
  v7 = a2;
  __symbol[0] = 268633345;
  *(_DWORD *)((char *)__symbol + 3) = 1897140752;
  for ( i = __symbol; ; ++i )
  {
    v2 = *i ^ 0x71;
    *i = v2;
    if ( !v2 )
      break;
  }
  __handle = dlopen(0LL, 10);
  v4 = dlsym(__handle, (const char *)__symbol);
  ((void (__fastcall *)(__int64, _QWORD, _QWORD))v4)(31LL, 0LL, 0LL);
  dlclose(__handle);
}

这里使用了 dlsym() 函数从动态链接库中查找 ptrace 函数的符号地址，进行调用，用上面的hook就可以了
查看了它的源码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
- (void)xor_ptrace {
    //A 异或 B 等到 C,C 再异或 A 得到 B,隐藏 ptrace
    unsigned char str[] = {
        ('q' ^ 'p'),
        ('q' ^ 't'),
        ('q' ^ 'r'),
        ('q' ^ 'a'),
        ('q' ^ 'c'),
        ('q' ^ 'e'),
        ('q' ^ '\0')
    };
    unsigned char *p = str;
    while (((*p) ^= 'q') != '\0')
        p++;
    int (*ptrace_ptr)(int _request, pid_t _pid, caddr_t _addr, int _data);
    void *handle = dlopen(0, RTLD_GLOBAL | RTLD_NOW);   // 获得句柄
    ptrace_ptr = dlsym(handle, (const char *)str);      // 动态查找 ptrace 符号
    ptrace_ptr(PT_DENY_ATTACH, 0, 0, 0);
    dlclose(handle);
}

定义一个 str 数组, 拼接成ptrace字符串，最终会对 ptrace 函数进行调用

syscall

ida查看代码后去调用了系统函数syscall

1
2
3
4
void __cdecl -[DebugDetection ori_syscall](DebugDetection *self, SEL a2)
{
  syscall(26, 31LL, 0LL, 0LL, 0LL, a2, self);
}

syscall的定义如下

1
long syscall(long number, ...);
1
2
3
4
5
6
function hook_syscall(){
    var syscallAddr = Module.findExportByName(null, 'syscall');
    Interceptor.replace(syscallAddr, new NativeCallback(function(i1){
        console.log("syscall flag is => ", i1);
    }, 'void', ['int']))
}
syscall+svc

ptrace+svc 的hook改一下就可以

syscall+xor

同syscall

sysctl

同样找到代码位置

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
int __cdecl -[DebugDetection ori_sysctl](DebugDetection *self, SEL a2)
{
  size_t v3[3]; // [xsp+18h] [xbp-2C8h] BYREF
  char v4[32]; // [xsp+30h] [xbp-2B0h] BYREF
  int v5; // [xsp+50h] [xbp-290h]
  int v6[4]; // [xsp+2B8h] [xbp-28h] BYREF

  v3[2] = (size_t)self;
  v3[1] = (size_t)a2;
  v6[0] = 1;
  v6[1] = 14;
  v6[2] = 1;
  v6[3] = getpid();
  v3[0] = 648LL;
  v5 = 0;
  sysctl(v6, 4u, v4, v3, 0LL, 0LL);
  return (v5 & 0x800) != 0;
}
1
int sysctl(int *name, int namelen, void *oldval, size_t *oldlenp, void *newval, size_t newlen);

hook代码同上面的差不多
sysctl+svc和sysctl+xor都跟上面的也差不多

iOS逆向系列(二) 反调试与绕过案例实战
posts/51299/
作者
zsk
发布于
2024-02-01 00:00
许可
 评论
  1. 1. Frida检测
    1. 1.1. 端口检测
    2. 1.2. 文件检测
  2. 2. 越狱检测
  3. 3. 代理检测
    1. 3.1. 代理APP检测
    2. 3.2. 常规代理检测
    3. 3.3. 设置代理检测变量
  4. 4. 调试检测
    1. 4.1. 常规反调试函数
      1. 4.1.1. ptrace
      2. 4.1.2. ptrace+svc
      3. 4.1.3. ptrace+xor
      4. 4.1.4. syscall
      5. 4.1.5. syscall+svc
      6. 4.1.6. syscall+xor
      7. 4.1.7. sysctl
